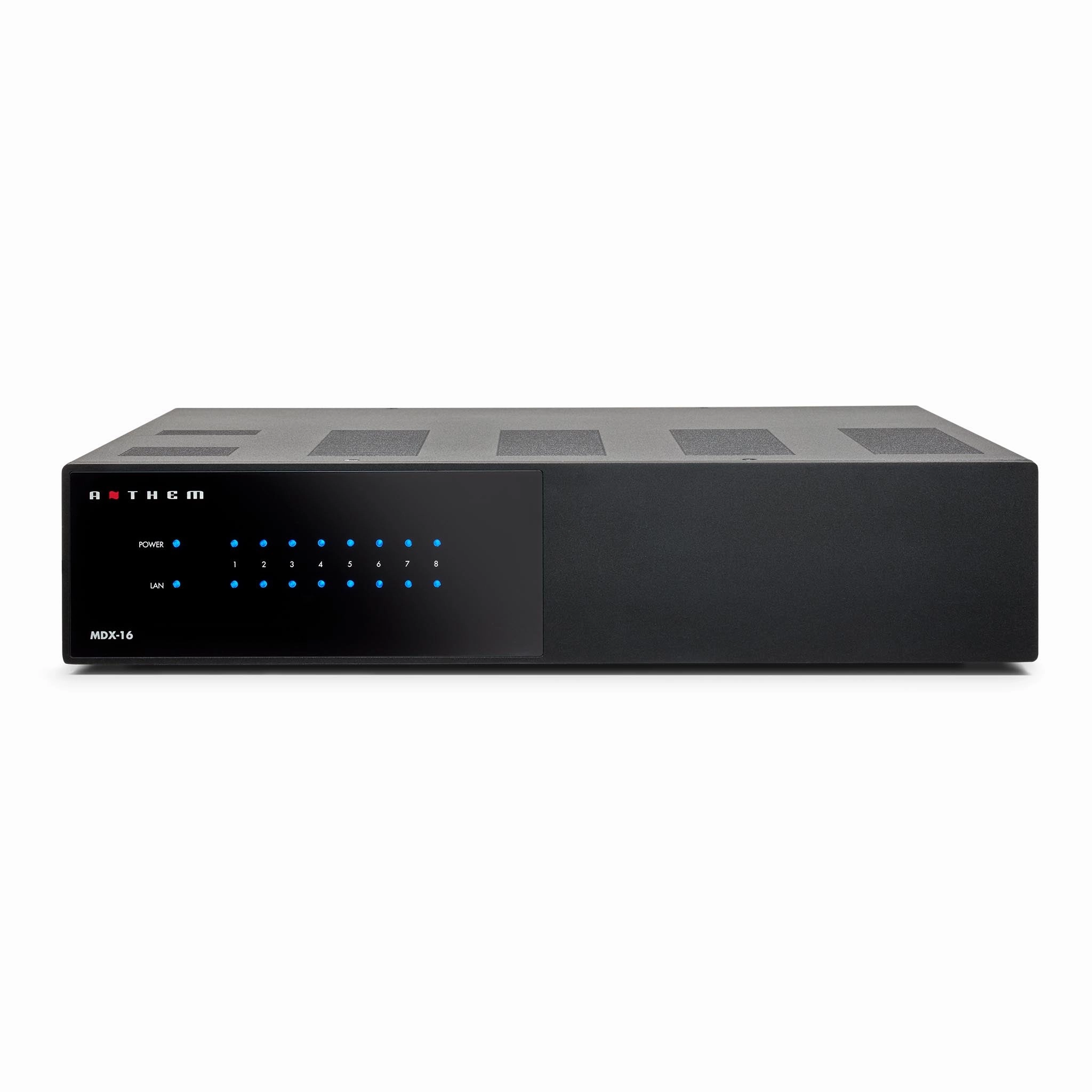

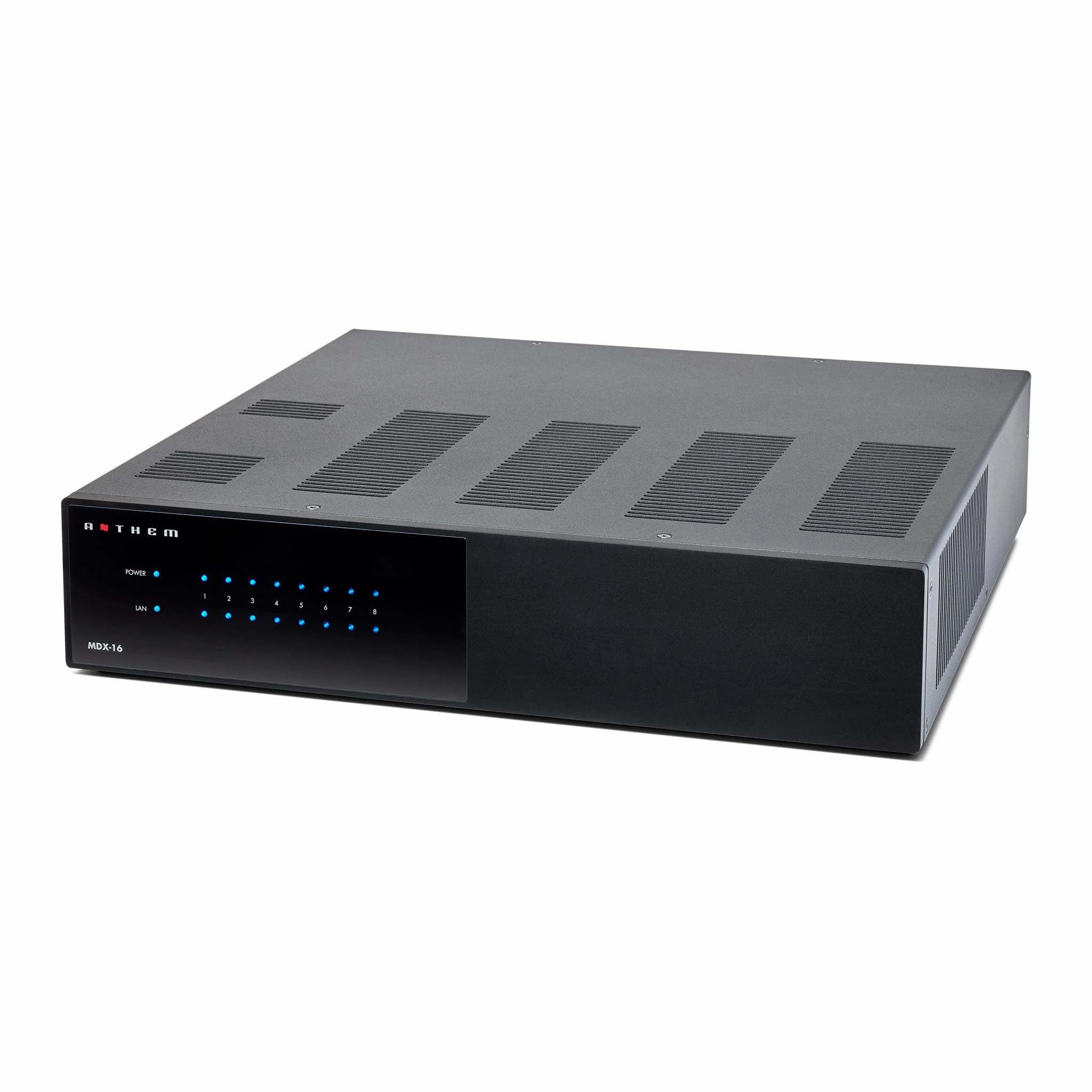

Anthem MDX-16 Distribution Power Amplifier

Adistribution system that features an onboard DAC, fully powered independent-zone subwoofer connections, web-based set-up, and ARC Genesis room correction for each zone

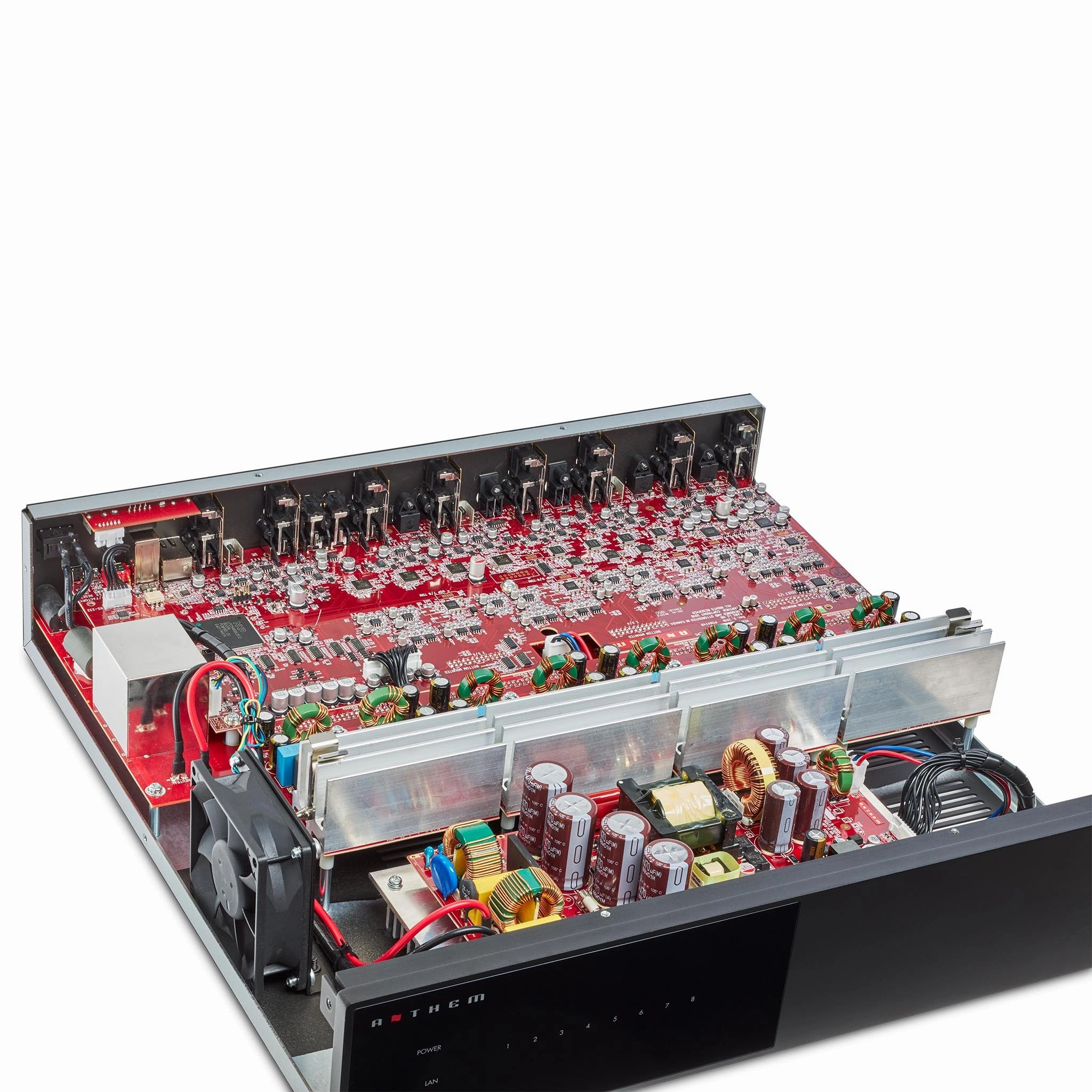

Class-D amplification withAnthem's Advanced Load Monitoring Technology delivers reliable performance even inthe most demanding setups.Smooth, instantaneous digital switching output allows the linking of digital inputs between multiple amplifiers and analog pass-through connections allow dais-chaining of multiple MDX units.

Install and control subwoofers independently in separate zones, with dedicated outputs (both low and high level, including bridge mode), and zone-independent settings for the new, more advanced Anthem Room Correction (ARC Genesis).

Toggle ARC Genesis on/off in each zone to hear the benefits of premium room optimization.Full digital/analog matrix switching allows you to assign any analog RCA, digital coaxial, or digital optical input to any output, either pre-configured via the web interface or switched in real-time via IP commands.

Specifications

Amplifier type:Class-D, 8 or 16 channels

Power output (6, 8 Ohm):60 W, 120 W. Bridges to 200 W into 8 Ohm

Sampling rate:Up to 192 kHz, 24 bit

Inputs
Stereo RCA analog:8
Coax RCA digital (S/PDIF):2
Toslink (optical digital):2

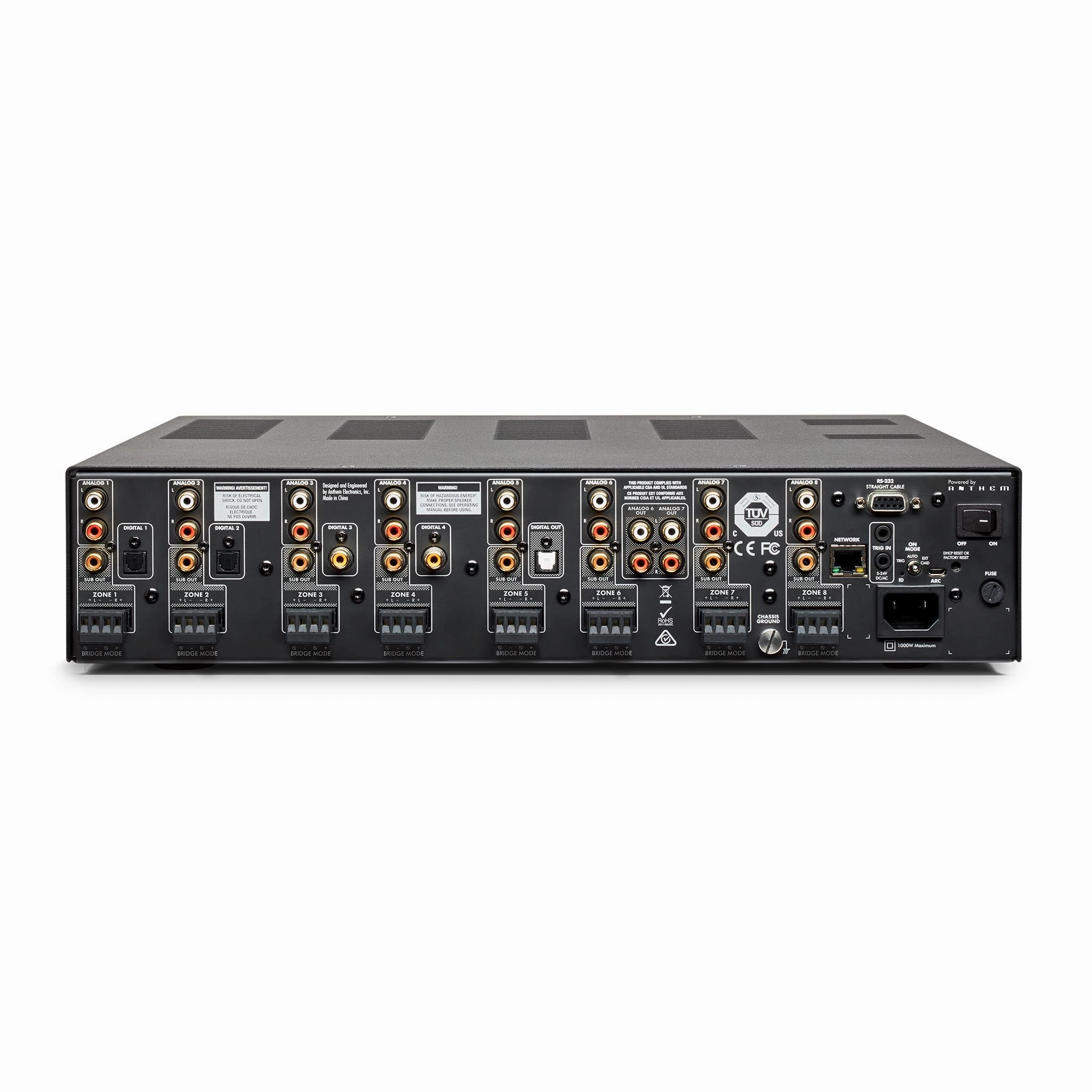

Outputs
Mono RCA analog sub:8
Stereo speaker level:8
Stereo RCA passthrough:2
Toslink (optical digital):1

Control
Ethernet:1
Micro USB:1
Serial (RS-232):1
Trigger (3.5 mm jack):2
