Part No | 90NR0821-M00390 |
Model Name | GA503RW-LN054W |
|
|
EAN Code | 4711081665915 |
UPC Code | 195553665919 |
|
|

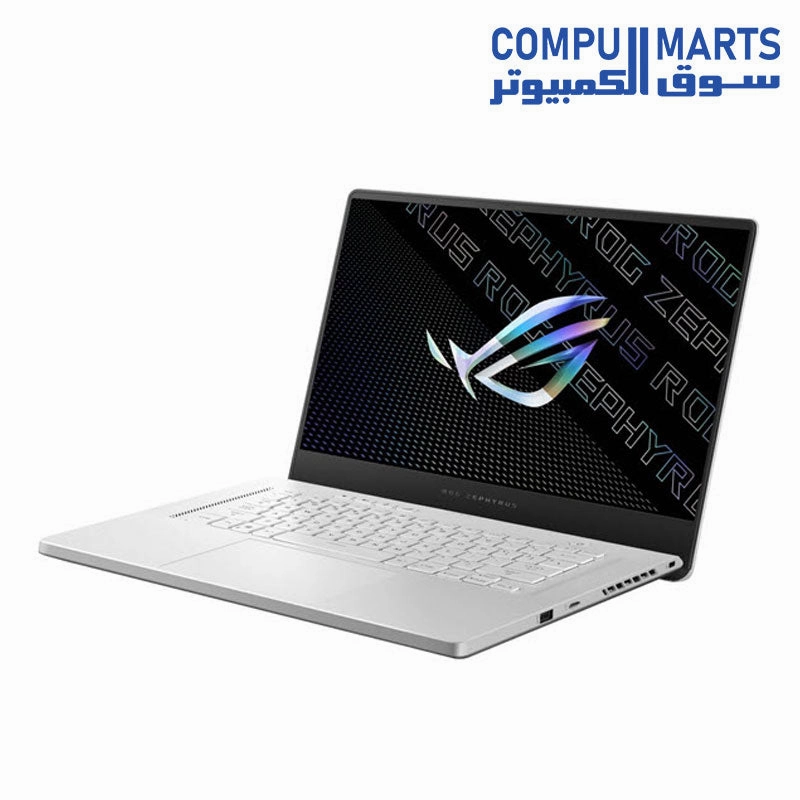

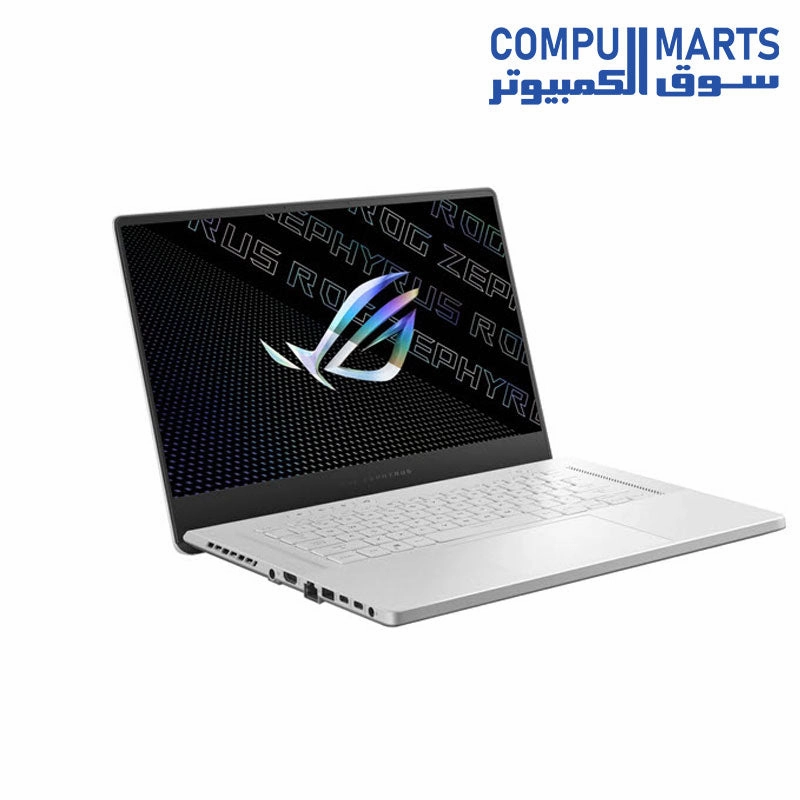

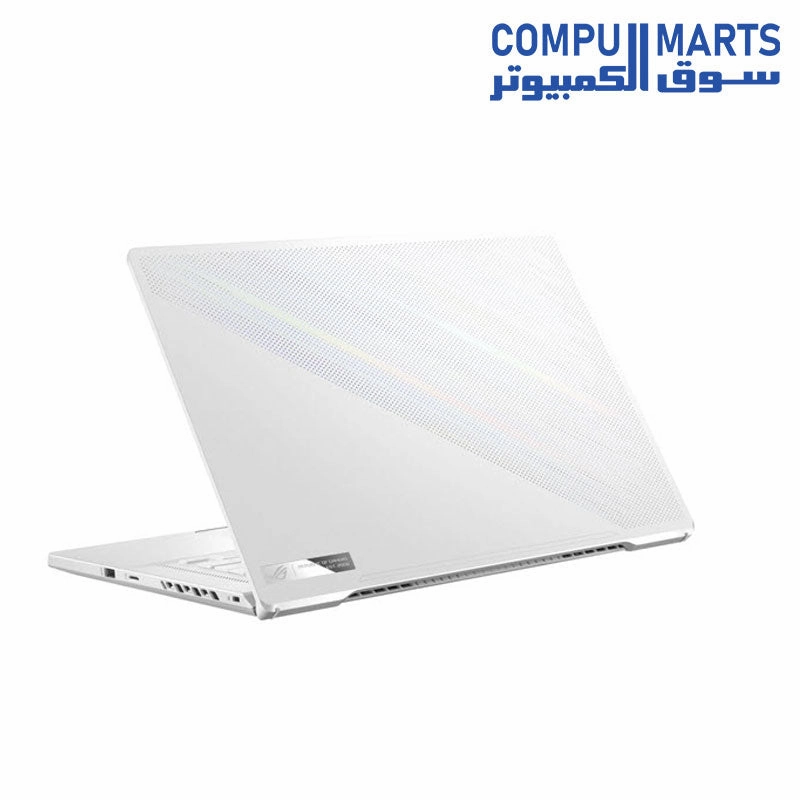

Marketing Name | ROG Zephyrus G15 |
Color | Moonlight White |
Dimension (W x D x H) | 35.5 x 24.3 x 1.99 ~ 1.99 cm (13.98" x 9.57" x 0.78" ~ 0.78") |
Weight | 1.90 Kg (4.19 lbs) |
Processor | AMD Ryzen 9 6900HS Mobile Processor (8-core/16-thread, 16MB cache, up to 4.9 GHz max boost) |
Chipset | N/A |
Discrete/Optimus | MUX Switch Optimus |
Graphic | NVIDIA GeForce RTX 3070 Ti Laptop GPU |
Graphic Wattage | ROG Boost: 1085MHz* at 120W (1035MHz Boost Clock 50MHz OC, 100W 20W Dynamic Boost) |
Graphic Memory | 8GB GDDR6 |
IGPU | AMD Radeon Graphics |
Panel Size | 15.6-inch |
Resolution | WQHD (2560 x 1440) 16:9 |
Refresh Rate | 240Hz |
Response Time (G2G) | 3ms |
Viewing Angle | 85/85/85/85 |
Panel Tech | IPS-level |
Brightness | 300nits |
Contrast | 1000:1 |
DCI-P3 % | 100% |
Anti glare | Anti-glare display |
Adaptive-Sync technology | Adaptive-Sync |
Pantone | Pantone Validated |
Support Dolby Vision HDR | Yes |
On board memory | 16GB DDR5 on board |
DIMM Memory | 16GB DDR5-4800 SO-DIMM |
Total System Memory | DDR5 32GB |
Memory Slot | 1x SO-DIMM slot |
Memory Max. | 48GB |
Multi-channel memory technology | Support dual channel memory |
How to upgrade memory | Upgradable |
System Storage Installed | 1TB PCIe 4.0 NVMe M.2 SSD |
M.2 slots support either SATA or NVMe | 2 |
M.2 SSD Support List | Value PCIe G4x4SSD M2 2280 P4X4 512GSSD M2 2280 P4X4 1TB |
Expansion Slot (includes used) | 1x DDR5 SO-DIMM slot1x PCIe |
LAN | 10/100/1000/2500 Mbps |
Wi-Fi/Bluetooth | Wi-Fi 6E(802.11ax) (Triple band) 2*2 Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.) |
I/O Ports | 1x RJ45 LAN port2x USB 3.2 Gen 2 Type-A2x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery1xcardreader(microSD)(UHS-II) |
Display output | 1x HDMI 2.1 TMDS |
Audio | 1x 3.5mm Combo Audio Jack |
Webcam | 720P HD IR Camera for Windows Hello |
Mic | Built-in array microphone |

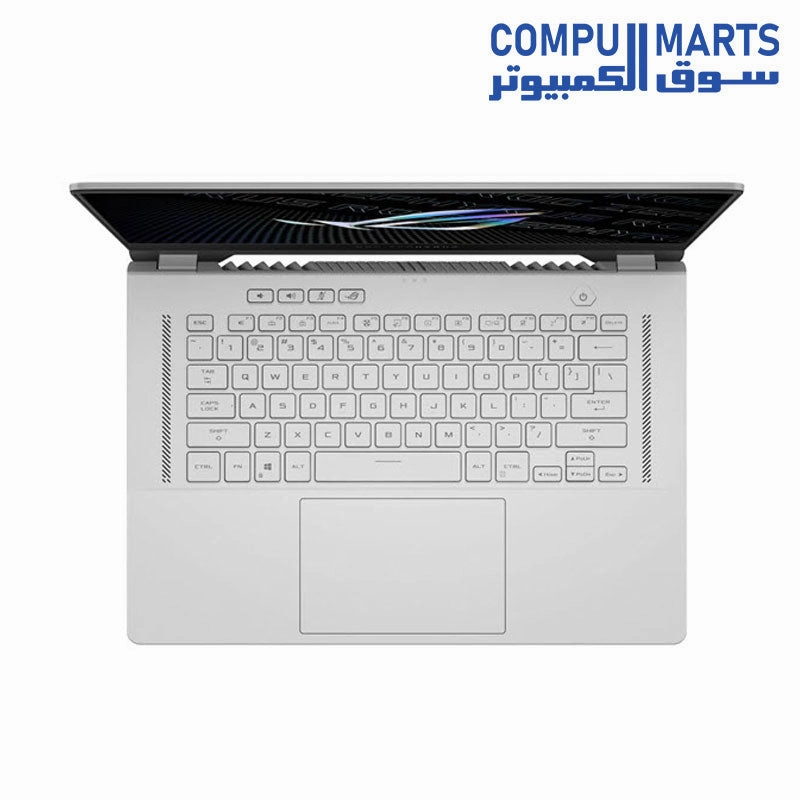

Keyboard Type | Backlit Chiclet Keyboard 1-Zone RGB |
NumberPad | N/A |
Aura Sync | N/A |
Speakers | 2x 2W dual-forcewooferwithSmartAmpTechnology2x2WTweeter |
Audio Tech | AInoise-canceling technologyDolbyAtmosHi-RescertificationSmartAmpTechnology |
Operating System | Windows 11 Home |
Antivirus | MCAFEE_30D |
Xbox Game Pass | Xbox Game Pass Ultimate_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
Security | BIOS Administrator Password and User Password ProtectionKensingtonSecuritySlotTrusted Platform Module (Firmware TPM) |
Battery | 90WHrs, 4S1P, 4-cell Li-ion |
Power | 6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
Reparability Index (for FR) | 7.3 |
