Part No | 90NR0LX6-M00980 |
Sales Model Name | GU605CW-WH164W |
EAN Code | 4711387949702 |
UPC Code | 197105949706 |
WEEE | 2.893 |
BASE UNIT | VSNR0LX6-BU1001 |
|
|

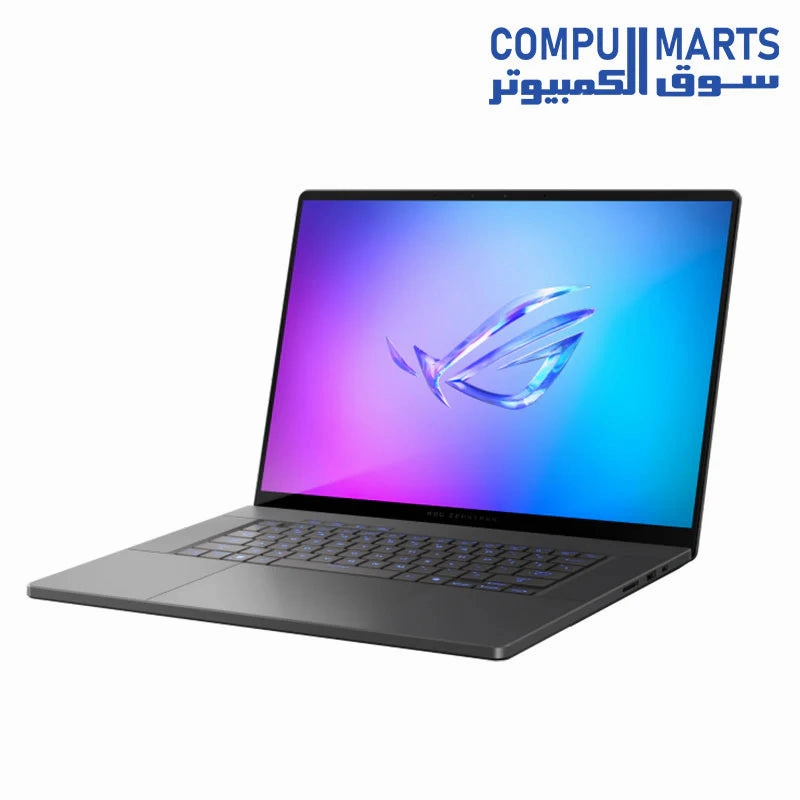

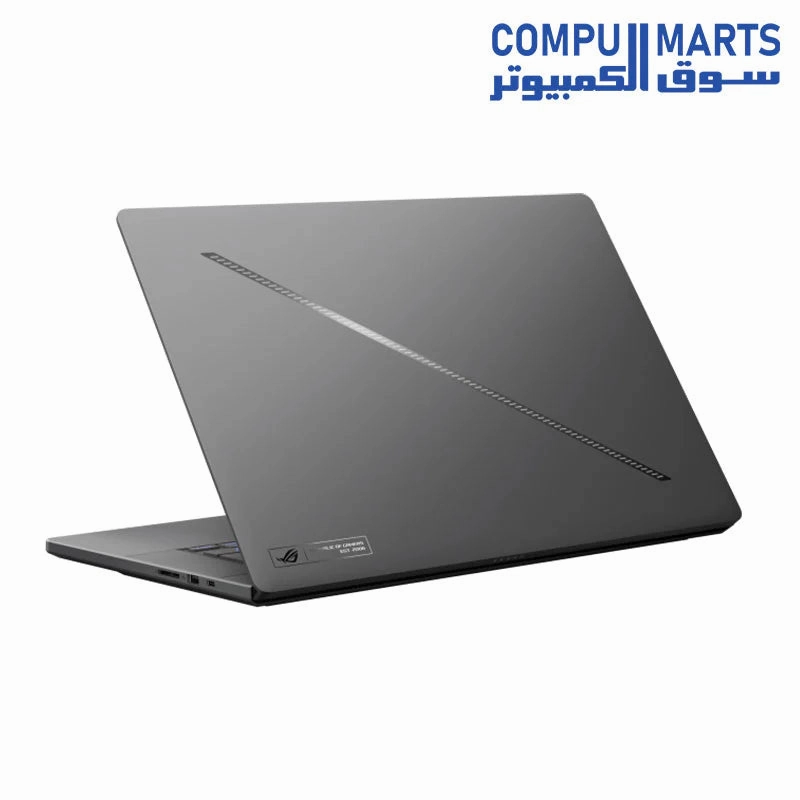

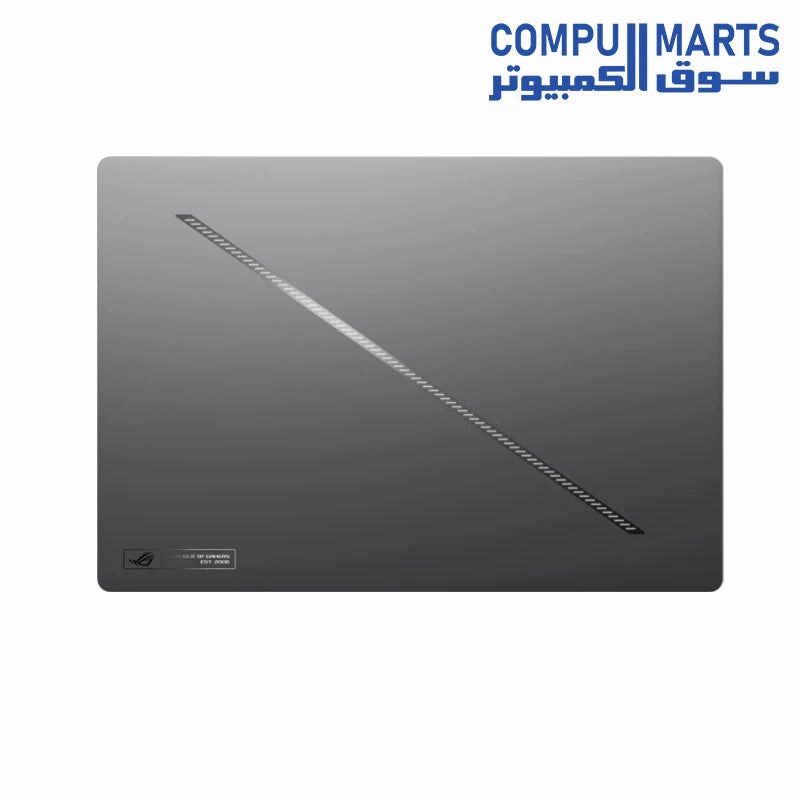

Marketing Name | ROG Zephyrus G16 |
Operating System | Windows 11 Home |
Office | 1-month trial for new Microsoft 365 customers. Credit card required. |
Color | Platinum White |
Dimension (W x D x H) | 35.4 x 24.6 x 1.49 ~ 1.74 cm (13.94" x 9.69" x 0.59" ~ 0.69") |
Weight | 1.95 Kg (4.30 lbs) |
Processor | Intel Core Ultra 9 Processor 285H 2.9 GHz (24MB Cache, up to 5.4 GHz, 16 cores, 16 Threads); Intel AI Boost NPU up to 13TOPS |
Chipset | N/A |
Intergrated GPU | Intel Arc Graphics |
Discrete/Optimus | MUX Switch NVIDIA Advanced Optimus |
Graphic | NVIDIA GeForce RTX 5080 Laptop GPU |
Graphic Wattage | ROG Boost: 1550MHz* at 120W (1500MHz Boost Clock 50MHz OC, 100W 20W Dynamic Boost) |
Graphic Memory | 16GB GDDR7 |
Neural Processor | Intel AI Boost NPU up to 13TOPS |
Panel Size | 16-inch |
Resolution | 2.5K (2560 x 1600, WQXGA) OLED 16:10 aspect ratio |
Refresh Rate | 240Hz |
Viewing Angle | 89/89/89/89 |
Panel Tech | OLED |
Brightness | 500 nits (Peak) |
Contrast Ratio | 1,000,000:1 |
DCI-P3 % | 100% |
Glare | Glossy display |
Adaptive-Sync technology | G-Sync |
Pantone | Pantone Validated |
Nebula Display | ROG Nebula Display |
Support Dolby Vision HDR | Yes |
On board memory | 64GB LPDDR5X 7467 on board(Actual memory speeds may vary by CPU configuration.) |
Total System Memory | LPDDR5X 64GB |
Memory Slot | N/A |
Memory Max. | 64GB |
Multi-channel memory technology | Support dual channel memory technology |
Storage | 2TB PCIe 4.0 NVMe M.2 SSD |
M.2 slots support either SATA or NVMe | 2 |
M.2 SSD Support List | 1TB M.2 NVMe PCIe G4x4 Performance SSD (ACC/TW only)2TB M.2 NVMe PCIe G4x4 Performance SSD (ACC/TW only)1TB M.2 NVMe PCIe G4x4 Value SSD2TB M.2 NVMe PCIe G4x4 Value SSD |
Expansion Slot (includes used) | 2x M.2 PCIe |
LAN | N/A |
Wireless | Wi-Fi 7(802.11be) (Triple band) 2*2 Bluetooth 5.4 Wireless Card (*Bluetooth version may change with OS version different.) |
I/O Ports | 1x Thunderbolt 4 with support for DisplayPort / power delivery (data speed up to 40Gbps)1x USB 3.2 Gen 2 Type-C with support for DisplayPort / power delivery / G-SYNC (data speed up to 10Gbps)2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)1x card reader (SD) (UHS-II, 312MB/s) |
Display output | 1x HDMI 2.1 FRL |
Camera | 1080P FHD IR Camera for Windows Hello |
Mic | Built-in 3-microphone array |
Keyboard Type | Backlit Chiclet Keyboard 1-Zone RGB |
Aura Sync | Yes |
Touchpad | TouchpadN/A |
Speakers | 4-speaker (dual-force woofer) system with Smart Amplifier Technology, 2 Tweeters |
Audio | 1x 3.5mm Combo Audio JackBuilt-in 3-microphone array |
Audio Tech | AI noise-canceling technologyDolby AtmosHi-Res certification (for headphone)Smart Amp Technology |
Security | BIOS Administrator Password and User Password ProtectionTrusted Platform Module (Firmware TPM) |
Antivirus | McAfee 30 days free trial |
Battery | 90WHrs, 4S1P, 4-cell Li-ion |
Fast charging | Recharge from 0-50% in 30 minutes |
Power | Rectangle Conn, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
Required charging power | Min: 45WMax: 100W |
Xbox Game Pass | Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |

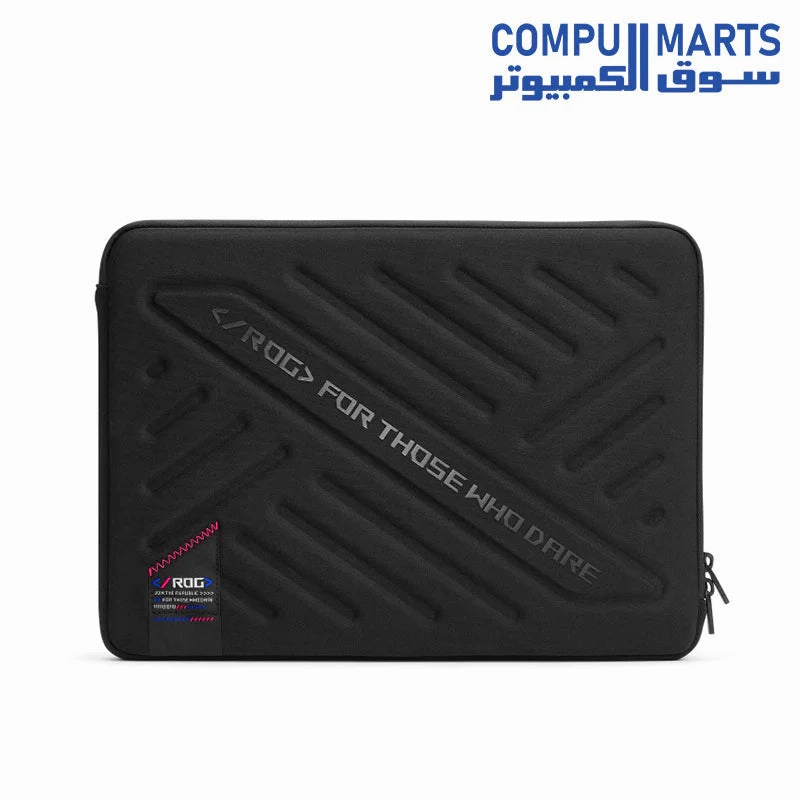

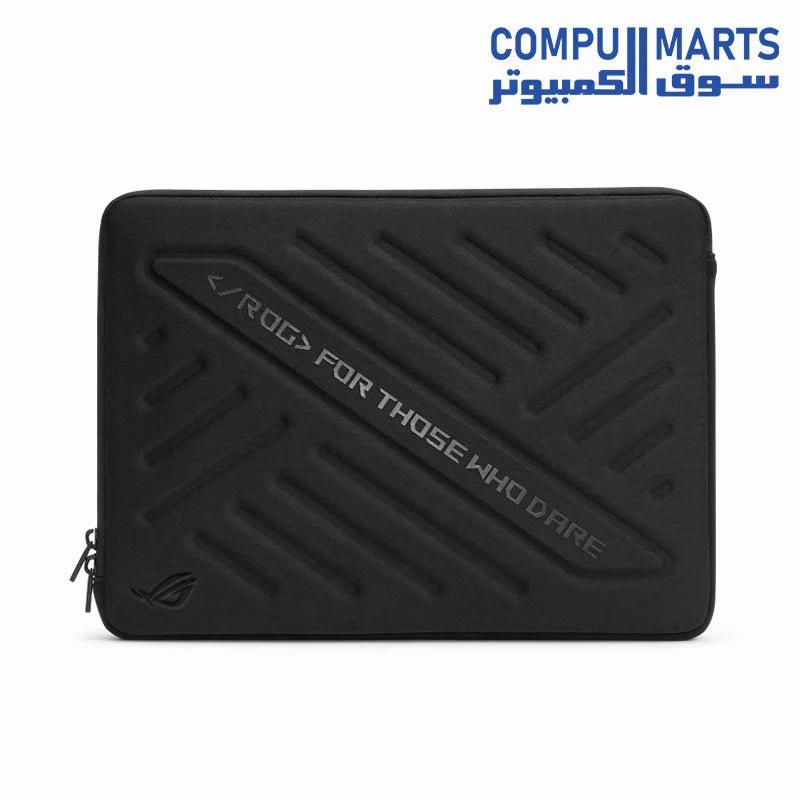

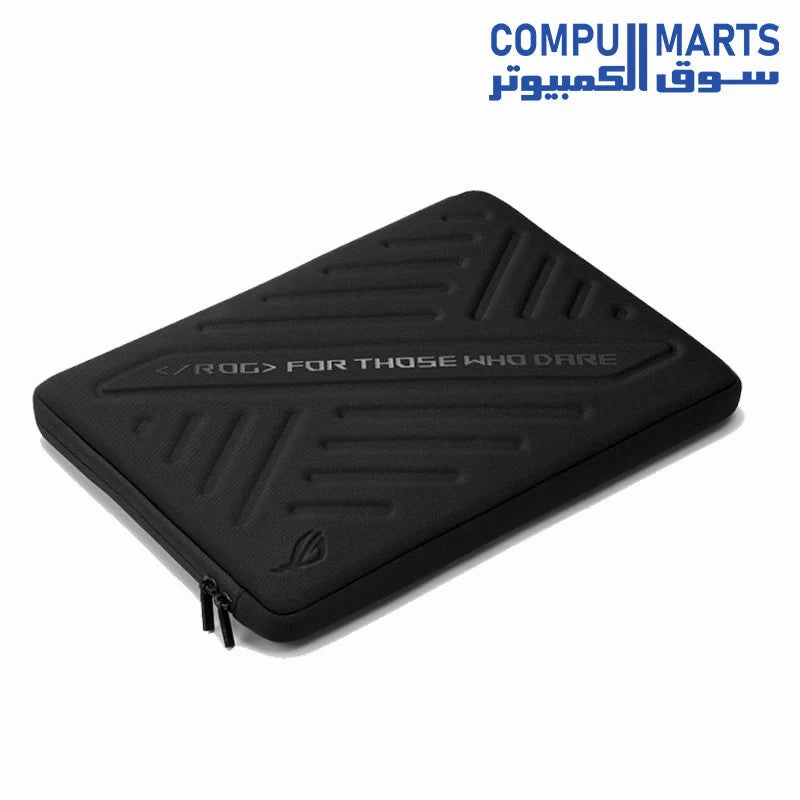

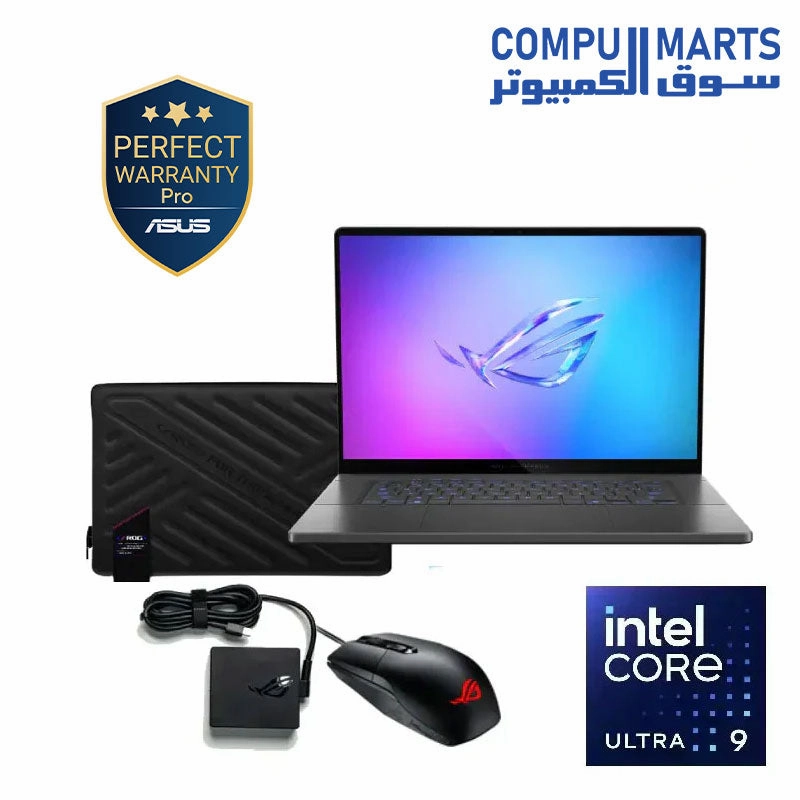

Included in the Box | ROG Impact Gaming MouseTYPE-C, 100W AC Adapter, Output: 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universalROG Zephyrus G16 Sleeve (2024) |
Ecolabels & Compliances | N/A |
Reparability Index (for France) | 9.3 |
