Part No

90NR0E85-M00330

Model Name

FA507NV-LP023W

EAN Code

UPC Code

WEEE

BASE UNIT

VSNR0E85-BU1000

Marketing Name

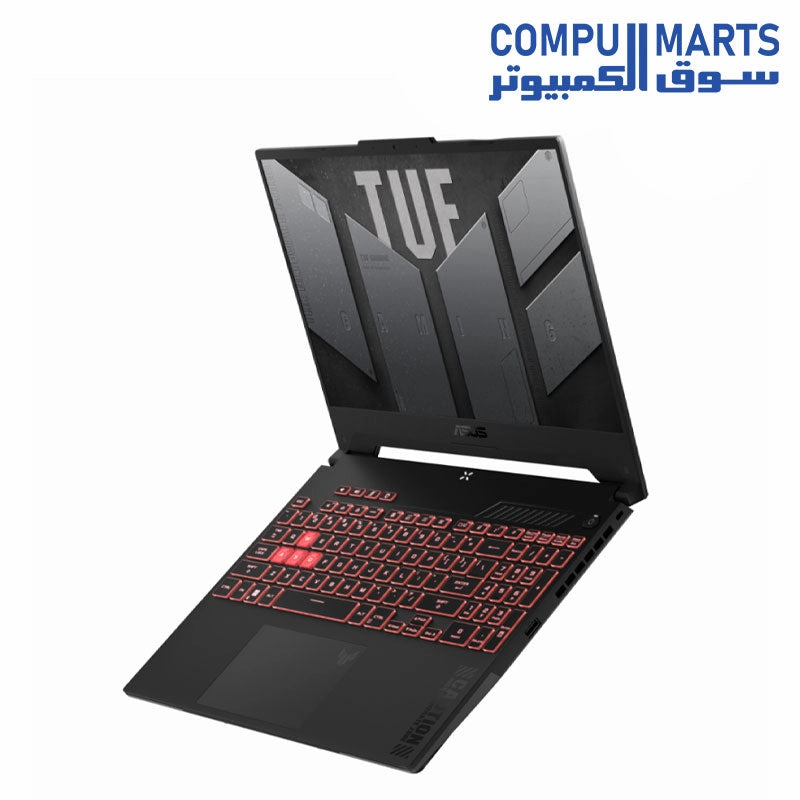

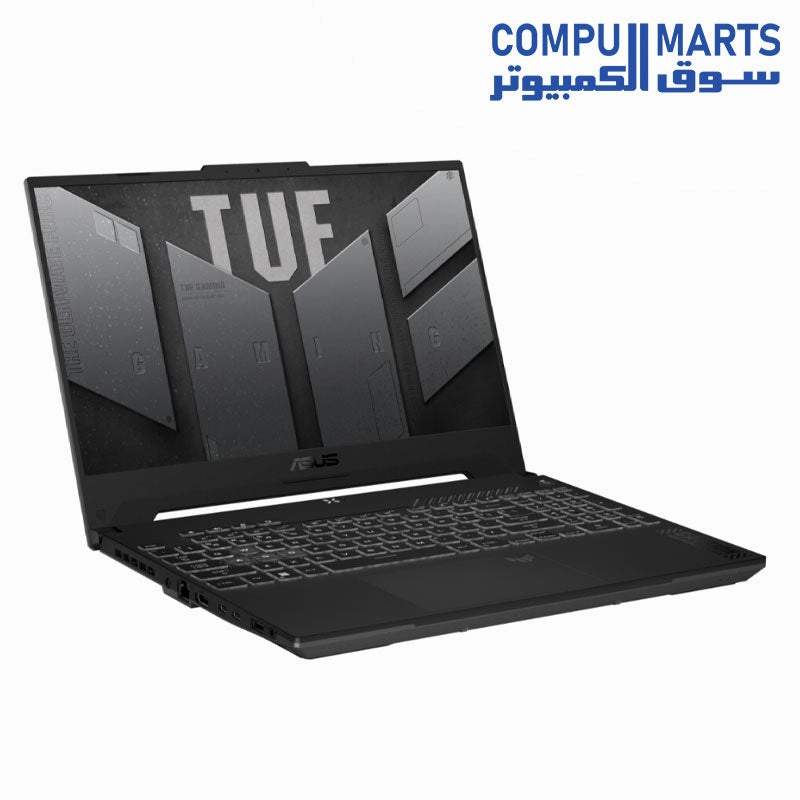

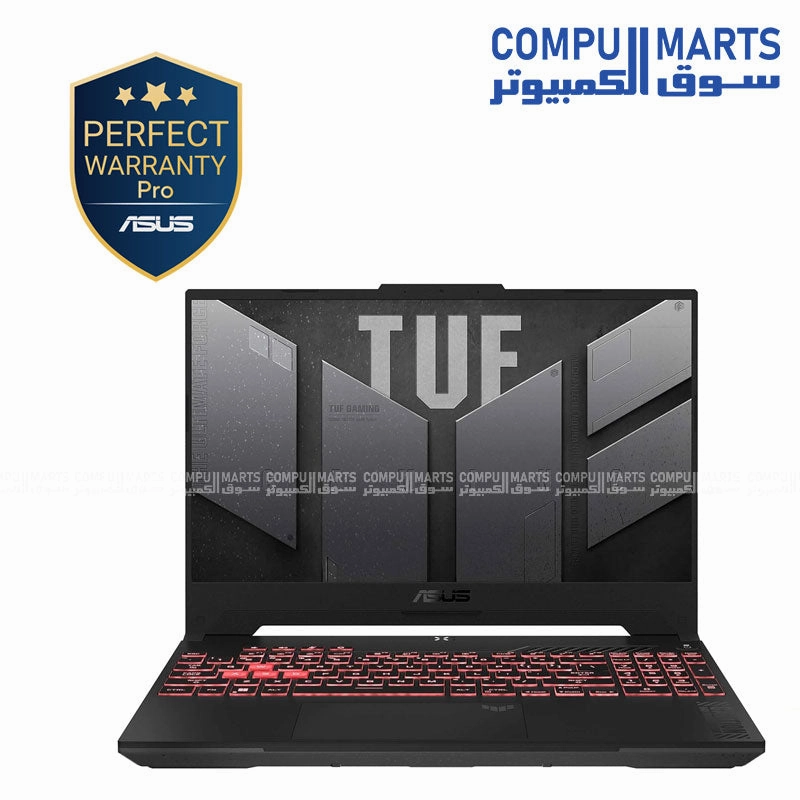

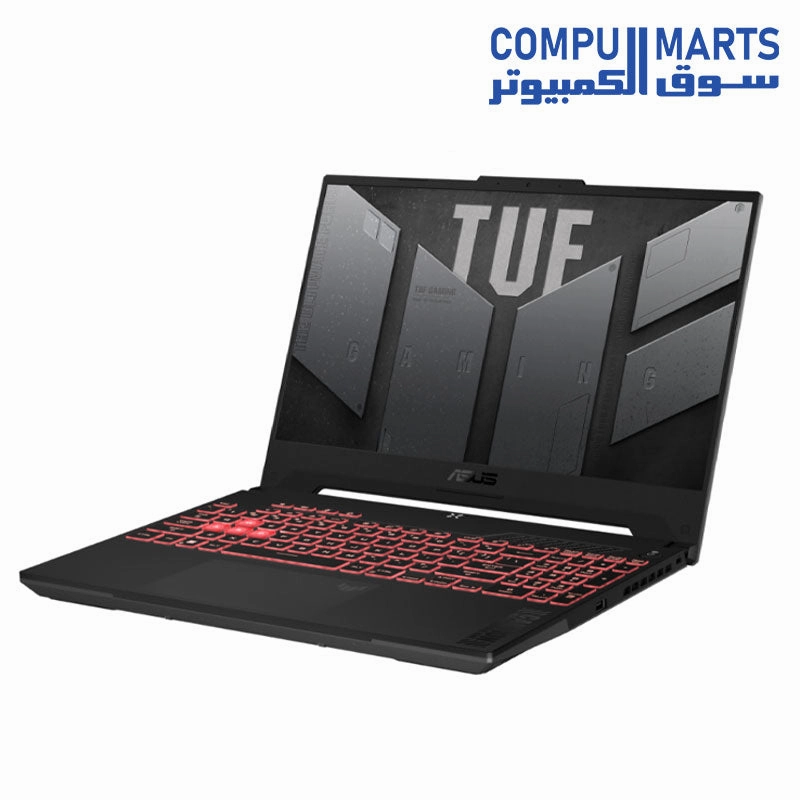

ASUS TUF Gaming A15

Color

Mecha Gray

Dimension (W x D x H)

35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94" x 9.88" x 0.88" ~ 0.98")

Weight

2.20 Kg (4.85 lbs)

Processor

AMD Ryzen 7 7735HS Mobile Processor (8-core/16-thread, 16MB L3 cache, up to 4.7 GHz max boost)

Chipset

N/A

Discrete/Optimus

MUX Switch NVIDIA Advanced Optimus

Graphic

NVIDIA GeForce RTX 4060 Laptop GPU

Graphic Wattage

2420MHz* at 140W (2370MHz Boost Clock 50MHz OC, 115W 25W Dynamic Boost)

Graphic Memory

8GB GDDR6

Intergrated GPU

AMD Radeon Navi2 Graphics

Panel Size

15.6-inch

Resolution

FHD (1920 x 1080) 16:9

Refresh Rate

144Hz

Viewing Angle

85/85/85/85

Panel Tech

IPS-level

Brightness

250nits

Contrast

1000:1

NTSC %

72%

SRGB %

100%

Adobe %

75.35%

Anti glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

8GB DDR5-4800 SO-DIMM *2

Total System Memory

DDR5 16GB

Memory Slot

2x SO-DIMM slots

Memory Max.

32GB

Multi-channel memory technology

Support dual channel memory

How to upgrade memory

Upgradable

System Storage Installed

512GB PCIe 4.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2 PCIe 512GB

M.2 PCIe 1TB

M.2 PCIe 2TB

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

LAN

10/100/1000 Mbps

Wi-Fi/Bluetooth

Wi-Fi 6(802.11ax) (Dual band) 2*2 Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)

Wi-Fi 6(802.11ax) (Dual band) 2*2 Bluetooth 5.2 Wireless Card (*Bluetooth version may change with OS upgrades.)

I/O Ports

1x RJ45 LAN port

1x Type C USB 4 support DisplayPort

1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery / G-SYNC

2x USB 3.2 Gen 1 Type-A

Display output

1x HDMI 2.1 FRL

Audio

1x 3.5mm Combo Audio Jack

Camera

720P HD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB

NumberPad

N/A

Aura Sync

N/A

Speakers

2-speaker system

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Support Microsoft Cortana near field/far field

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Antivirus

McAfee 30 days free trial

Xbox Game Pass

Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Security

BIOS Administrator Password and User Password Protection

Kensington Security Slot

Trusted Platform Module (Firmware TPM)

Battery

90WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal

Ecolabels & Compliances

ENERGY STAR

EPEAT Bronze

Reparability Index (for FR)

8.6
