Part No | 90NR0FF5-M004D0 |
Model Name | FA507XI-LP018 |
TTV | 2023-02-27 |
End of Production | 2023-12-25 |
EAN Code | 4711387244012 |
UPC Code | 197105244016 |
WEEE | 2.582 |
BASE UNIT | VSNR0FF5-BU0110 |

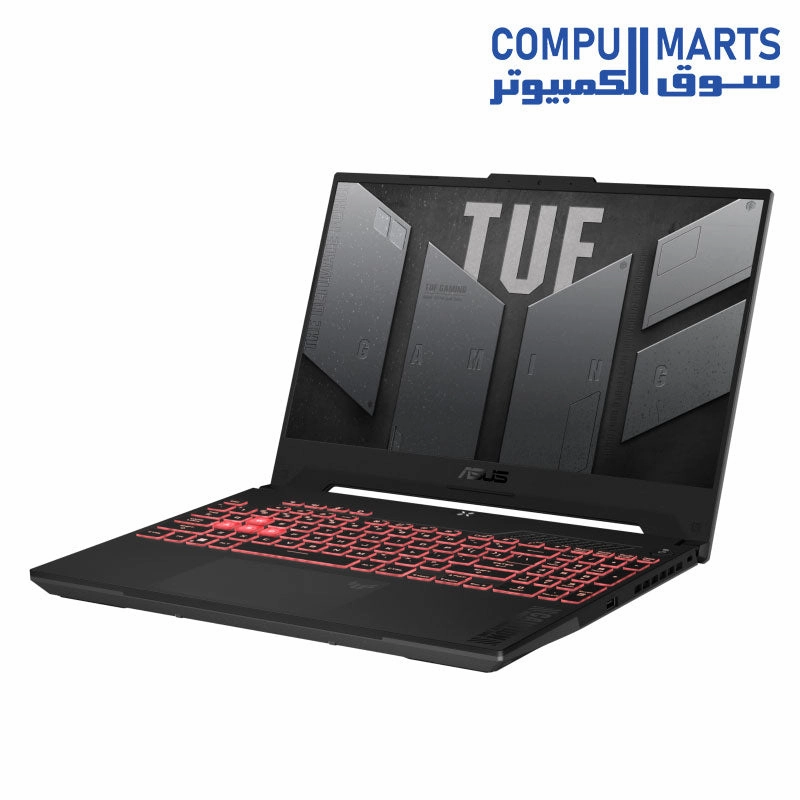

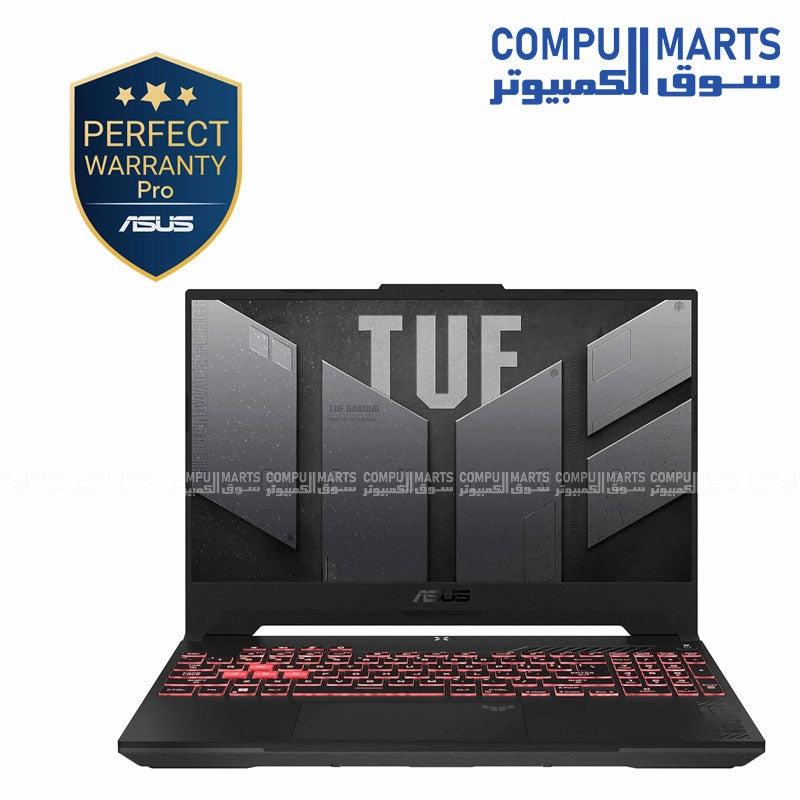

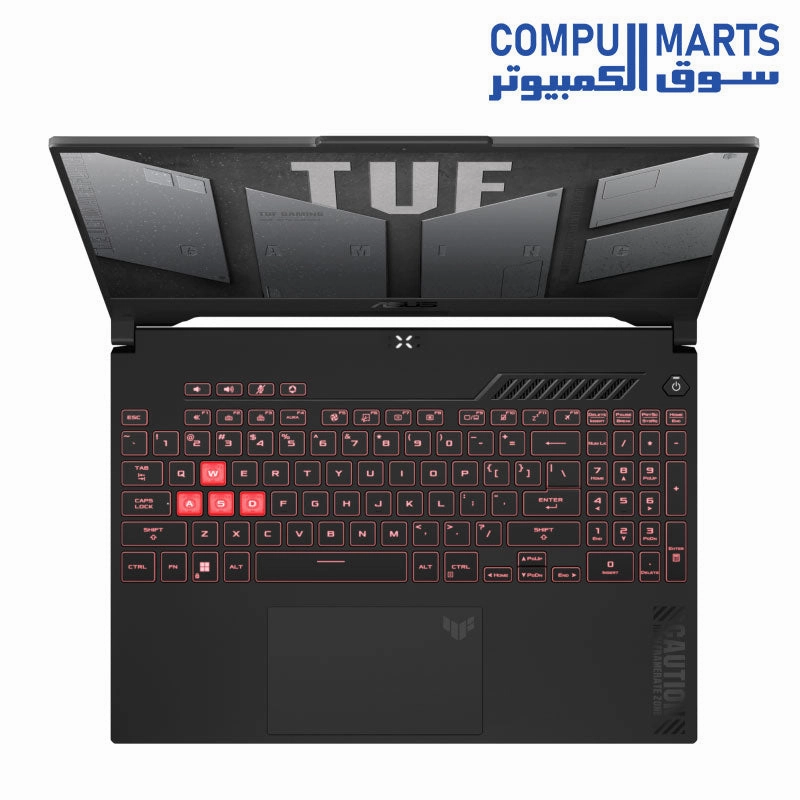

Marketing Name | ASUS TUF Gaming A15 |
Color | Mecha Gray |
Dimension (W x D x H) | 35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94" x 9.88" x 0.88" ~ 0.98") |
Weight | 2.20 Kg ( lbs) |
Processor | AMD Ryzen 9 7940HS Mobile Processor (8-core/16-thread, 16MB L3 cache, up to 5.2 GHz max boost) |
Chipset | N/A |
Discrete/Optimus | MUX Switch NVIDIA Advanced Optimus |
Graphic Wattage | 2225MHz* at140W (2175MHz Boost Clock 50MHz OC, 115W 25W Dynamic Boost) |
Graphic | NVIDIA GeForce RTX 4070 Laptop GPU |
Graphic Memory | 8GB GDDR6 |
IGPU | AMD Radeon Navi3 Graphics |
Panel Size | 15.6-inch |
Resolution | FHD (1920 x 1080) 16:9 |
Refresh Rate | 144Hz |
Viewing Angle | 170 |
Panel Tech | Value IPS-level |
Contrast | 1000:1 |
Brightness | 250nits |
NTSC % | 72% |
SRGB % | 100% |
Adobe % | 75.35% |
Anti glare | Anti-glare display |
Adaptive-Sync technology | G-Sync |
Pantone | N/A |
Support Dolby Vision HDR | N/A |
On board memory | N/A |
DIMM Memory | 8GB DDR5-4800 SO-DIMM *2 |
Total System Memory | DDR5 16GB |
Memory Slot | 2x SO-DIMM slots |
Memory Max. | 32GB |
Multi-channel memory technology | Support dual channel memory |
How to upgrade memory | Upgradable |
System Storage Installed | 1TB PCIe 4.0 NVMe M.2 SSD |
M.2 slots support either SATA or NVMe | 2 |
M.2 SSD Support List | M.2 PCIe 512GB M.2 PCIe 1TB M.2 PCIe 2TB |
Expansion Slot (includes used) | 2x DDR5 SO-DIMM slots |
LAN | 10/100/1000 Mbps |
Wi-Fi/Bluetooth | Wi-Fi 6(802.11ax) (Dual band) 2*2 Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.) |
I/O Ports | 1x RJ45 LAN port 1x Type C USB 4 support DisplayPort 1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery / G-SYNC 2x USB 3.2 Gen 1 Type-A |
Display output | 1x HDMI 2.1 FRL |
Audio | 1x 3.5mm Combo Audio Jack |
Webcam | 720P HD camera |
Mic | Built-in array microphone |
Keyboard Type | Backlit Chiclet Keyboard 1-Zone RGB |
NumberPad | N/A |
Aura Sync | N/A |
Speakers | 2-speaker system |
Audio Tech | AI noise-canceling technology Dolby Atmos Hi-Res certification Support Microsoft Cortana near field/Far field |
Operating System | No preinstalled OS |
Security | BIOS Administrator Password and User Password Protection Kensington Security Slot Trusted Platform Module (Firmware TPM) |
Battery | 90WHrs, 4S1P, 4-cell Li-ion |
Fast charging | Recharge from 0-50% in 30 minutes |
Power | 6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
Ecolabels & Compliances | ENERGY STAR |
Reparability Index (for FR) | 8.6 |
