Part No

90NR0N06-M008L0

Sales Model Name

FX607VU-RL805W

EAN Code

4711387856925

UPC Code

197105856929

WEEE

3.038

BASE UNIT

VSNR0N06-BU0100

Marketing Name

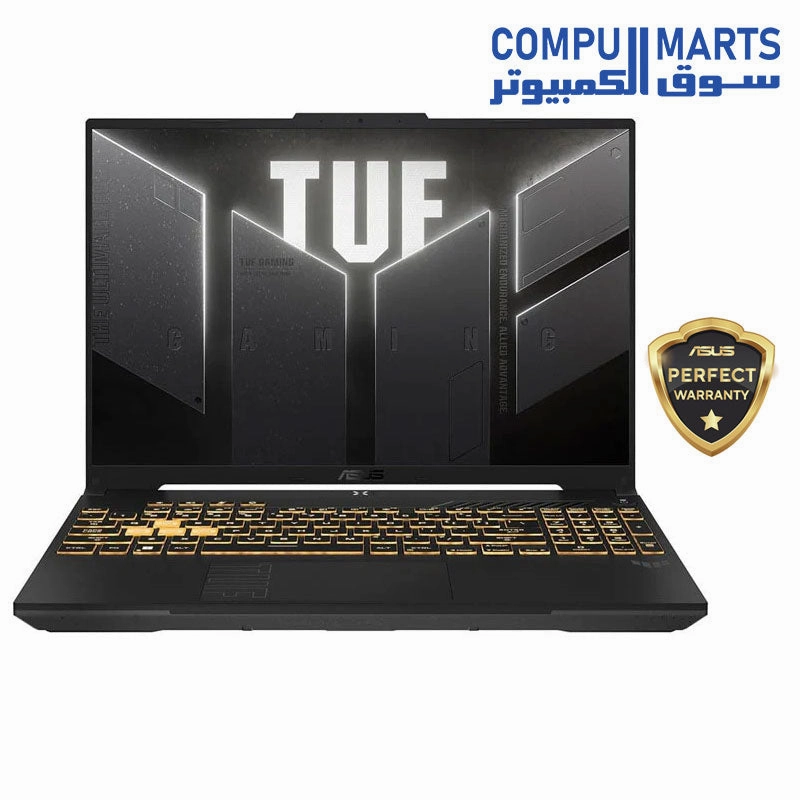

ASUS TUF Gaming F16

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Color

Mecha Gray

Dimension (W x D x H)

35.4 x 25.1 x 2.21 ~ 2.67 cm (13.94" x 9.88" x 0.87" ~ 1.05")

Weight

2.20 Kg (4.85 lbs)

Processor

Intel Core 5 Processor 210H 2.2 GHz (12MB Cache, up to 4.8 GHz, 8 cores, 12 Threads)

Chipset

N/A

Intergrated GPU

Intel Iris X Graphics

Discrete/Optimus

MUX Switch NVIDIA Advanced Optimus

Graphic

NVIDIA GeForce RTX 4050 Laptop GPU (194 AI TOPs)

Graphic Wattage

2420MHz* at 140W (2370MHz Boost Clock 50MHz OC, 115W 25W Dynamic Boost)

Graphic Memory

6GB GDDR6

Panel Size

16-inch

Resolution

FHD 16:10 (1920 x 1200, WUXGA)

Refresh Rate

144Hz

Response Time (G2G)

7ms

Viewing Angle

85/85/85/85

Panel Tech

Value IPS-level

Brightness

300nits

Contrast Ratio

1000:1

NTSC %

45%

Glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

8GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC

Total System Memory

DDR5 8GB

Memory Slot

2x SO-DIMM slots

Memory Max.

64GB

Multi-channel memory technology

Support dual channel memory

Storage

512GB PCIe 4.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2 2TB G4X4 PCIe SSD

M.2 1TB G4X4 PCIe SSD

M.2 512GB G4X4 PCIe SSD

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

2x M.2 PCIe

LAN

10/100/1000 Mbps

Wireless

Wi-Fi 6(802.11ax) (Dual band) 2*2 Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x Thunderbolt 4 with support for DisplayPort (data speed up to 40Gbps)

1x USB 3.2 Gen 2 Type-C with support for DisplayPort / power delivery / G-SYNC (data speed up to 10Gbps)

2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)

Display output

1x HDMI 2.1 FRL

Camera

720P HD camera

Mic

Built-in array microphone

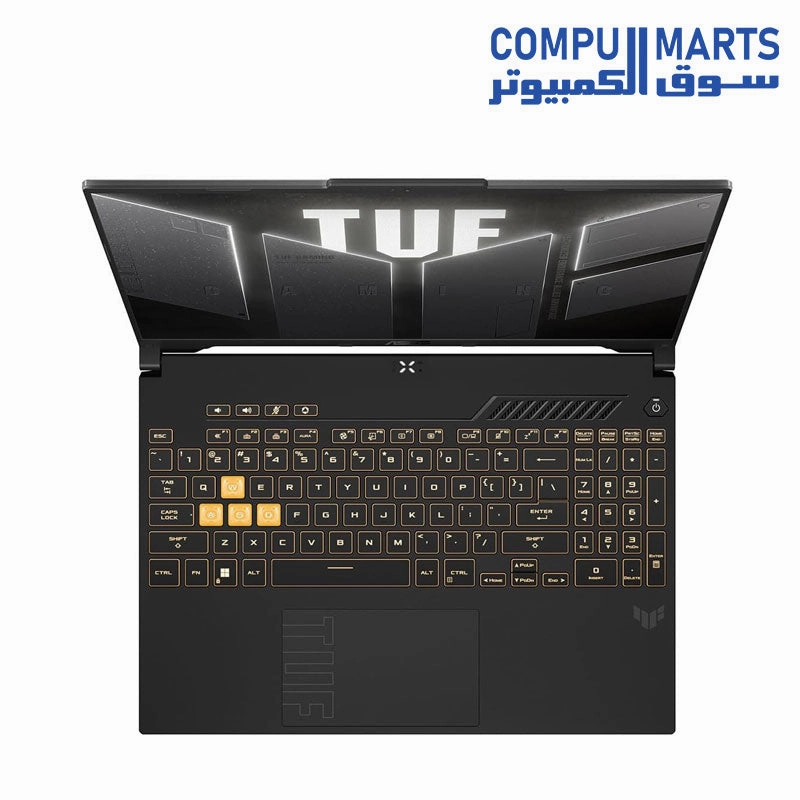

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB

With Copilot key

Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market.

Aura Sync

N/A

Touchpad

Touchpad

N/A

Speakers

2-speaker system

Audio

1x 3.5mm Combo Audio Jack

Built-in array microphone

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)

Security

BIOS Administrator Password and User Password Protection

Kensington Security Slot

Trusted Platform Module (Firmware TPM)

Antivirus

McAfee 30 days free trial

Battery

56WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal

Required charging power

Min: 45W

Max: 100W

*The indicated wattage is for demonstrating the systems support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Xbox Game Pass

Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Ecolabels & Compliances

ENERGY STAR

Reparability Index (for France)

9.9
