Part No | 90NB0Z92-M00D50 | |
Model Name | UX5304VA-OLED517W | |
TTV | 2023-10-12 | |
End of Production | 2024-12-31 | |
EAN Code | 4711387177563 | |
UPC Code | 197105177567 | |
WEEE | 0.8 | |
BASE UNIT | VSNB0Z92-BU1000 | |
|
| |
Marketing Name | ASUS Zenbook S 13 OLED | |
Operating System | Windows 11 Home - ASUS recommends Windows 11 Pro for business | |
LCD cover-material | Aluminum | |
LCD cover-color | Basalt Grey | |
Top case-material | Mg-Al | |
Top case-color | Basalt Grey | |
Keyboard color | Gray | |
Bottom case-material | Aluminum | |
Bottom case-color | Basalt Grey | |
Military grade | US MIL-STD 810H military-grade standard | |
Touch Panel | Non-touch screen | |
Panel Size | 13.3-inch | |
Resolution | 2.8K (2880 x 1800) OLED 16:10 aspect ratio | |
Response time | 0.2ms response time | |
Refresh rate | 60Hz refresh rate | |
Peak Brightness | 550nits HDR peak brightness | |
Color gamut | 100% DCI-P3 color gamut | |
Gamut mapping | Yes | |
Contrast ratio | 1,000,000:1 | |
VESA CERTIFIED Display HDR | VESA CERTIFIED Display HDR True Black 500 | |
Color depth | 1.07 billion colors | |
Pantone | PANTONE Validated | |
Glare | Glossy display | |
Low blue light | 70% less harmful blue light | |
T?V Rheinland-certified | TV Rheinland-certified | |
SGS Eye Care Display | SGS Eye Care Display | |
Screen-to-body ratio | 85 | |
Intel Athena Program | Intel Evo Platform | |
Processor | Intel Core i7-1355U Processor 1.7 GHz (12MB Cache, up to 5.0 GHz, 10 cores, 12 Threads) | |
Chipset | N/A | |
Discrete/Share | Share | |
Intergrated GPU | Intel Iris Xe Graphics | |
Disclaimer for Intel Iris Xe | *Intel Iris X Graphics is only available in models with Intel Core i5/i7/i9 processors and dual-channel memory. | |
VRAM | N/A | |
How to upgrade memory | Not Available | |
Expansion Slot(includes used) | N/A | |
On board memory | 16GB LPDDR5 on board | |
Total System Memory | LPDDR5 16GB | |
Storage | 512GB M.2 NVMe PCIe 4.0 SSD | |
Front-facing camera | FHD camera with IR function to support Windows Hello | |
on board Wireless | Wi-Fi 6E(802.11ax) (Dual band) 2*2 Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.) | |
Touchpad | Touchpad | |
FingerPrint | N/A | |

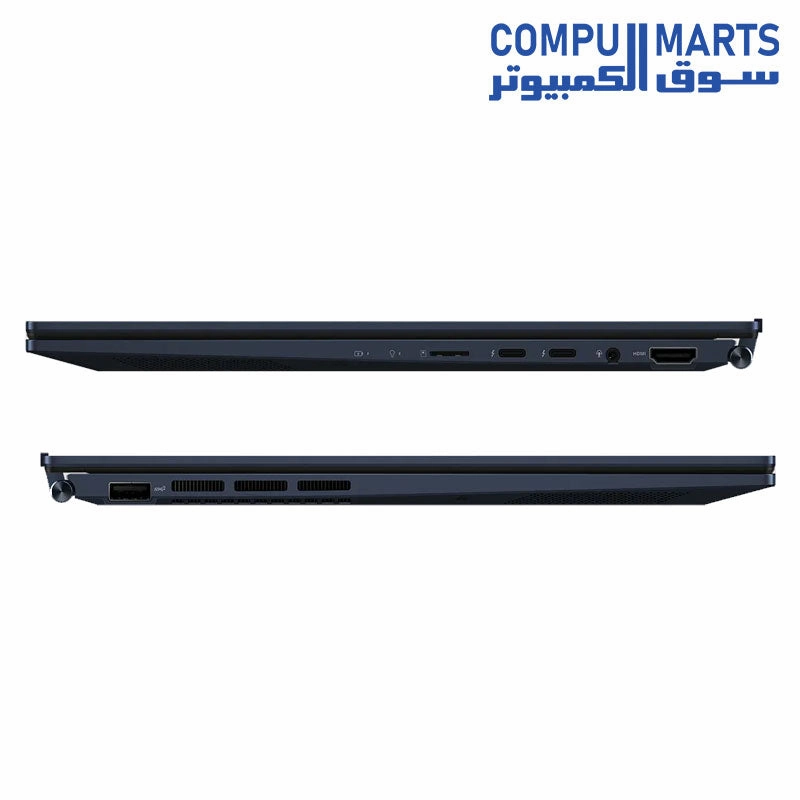

I/O ports | 1x USB 3.2 Gen 2 Type-A 2x Thunderbolt 4 supports display / power delivery 1x HDMI 2.1 TMDS 1x 3.5mm Combo Audio Jack | |
Audio | Smart Amp Technology Built-in speaker Built-in array microphone harman/kardon (Premium) | |
Voice control | with Cortana voice-recognition support | |
AC Adapter | TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal | |
Battery | 63WHrs, 2S2P, 4-cell Li-ion | |
Replaceable Battery | No | |
Keyboard type | Backlit Chiclet Keyboard | |
Dimension (WxHxD) | 29.62 x 21.63 x 1.09 ~ 1.18 cm (11.66" x 8.52" x 0.43" ~ 0.46") | |
Weight (with Battery) | 1.00 kg (2.20 lbs) | |
Weight (without Battery) | 0.80 kg (1.76 lbs) | |
Antivirus | McAfee 30 days free trial | |
Security | McAfee 30 days free trial IR webcam with Windows Hello support McAfee Trusted Platform Module (TPM) 2.0 | |
MyASUS feature | System diagnosis Battery health charging Fan Profile Splendid Tru2Life Function key lock WiFi SmartConnect Link to MyASUS TaskFirst Live update ASUS OLED Care AI Noise Canceling | |
Built-in Apps | MyASUS ScreenXpert GlideX | |
Adobe Creative Cloud Hard Bundle | Three-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2024. | |
Included in the Box | Sleeve | |
Reparability Index (for France) | 8.3 | |
| | |
| | |
