Product Details

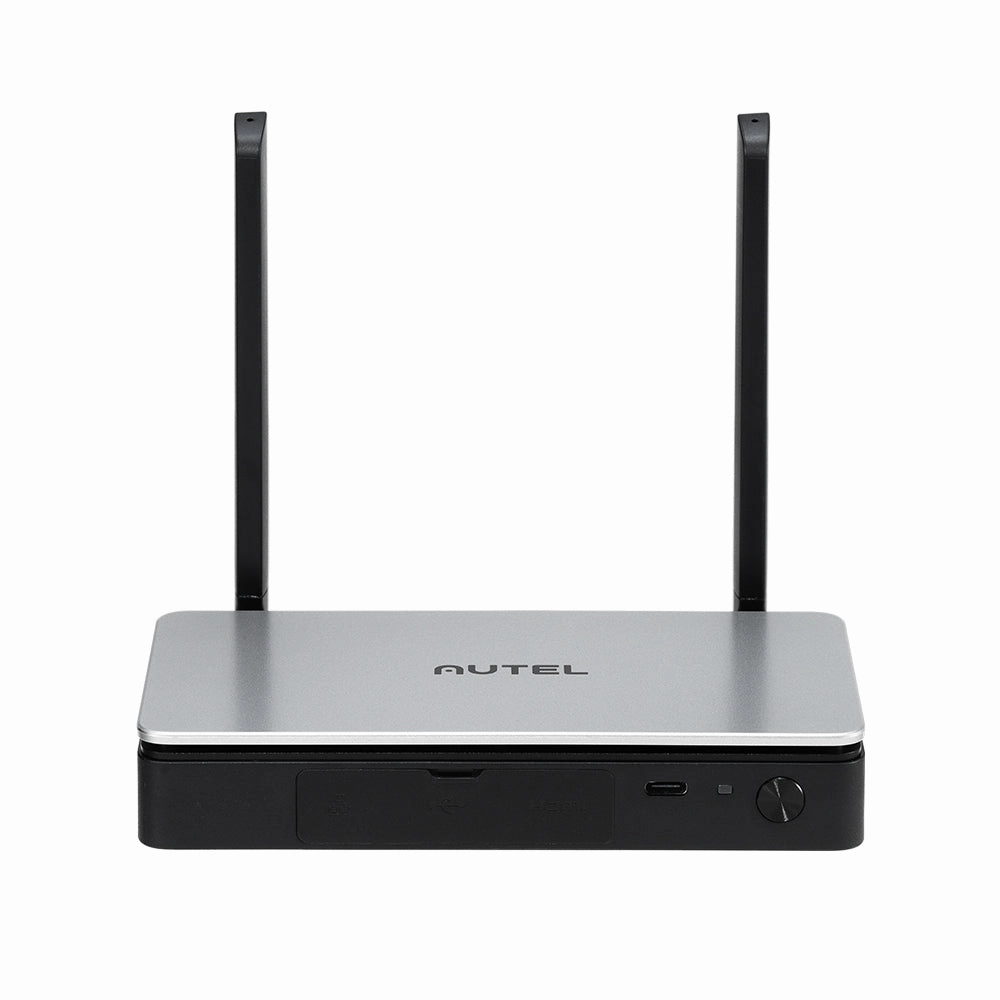

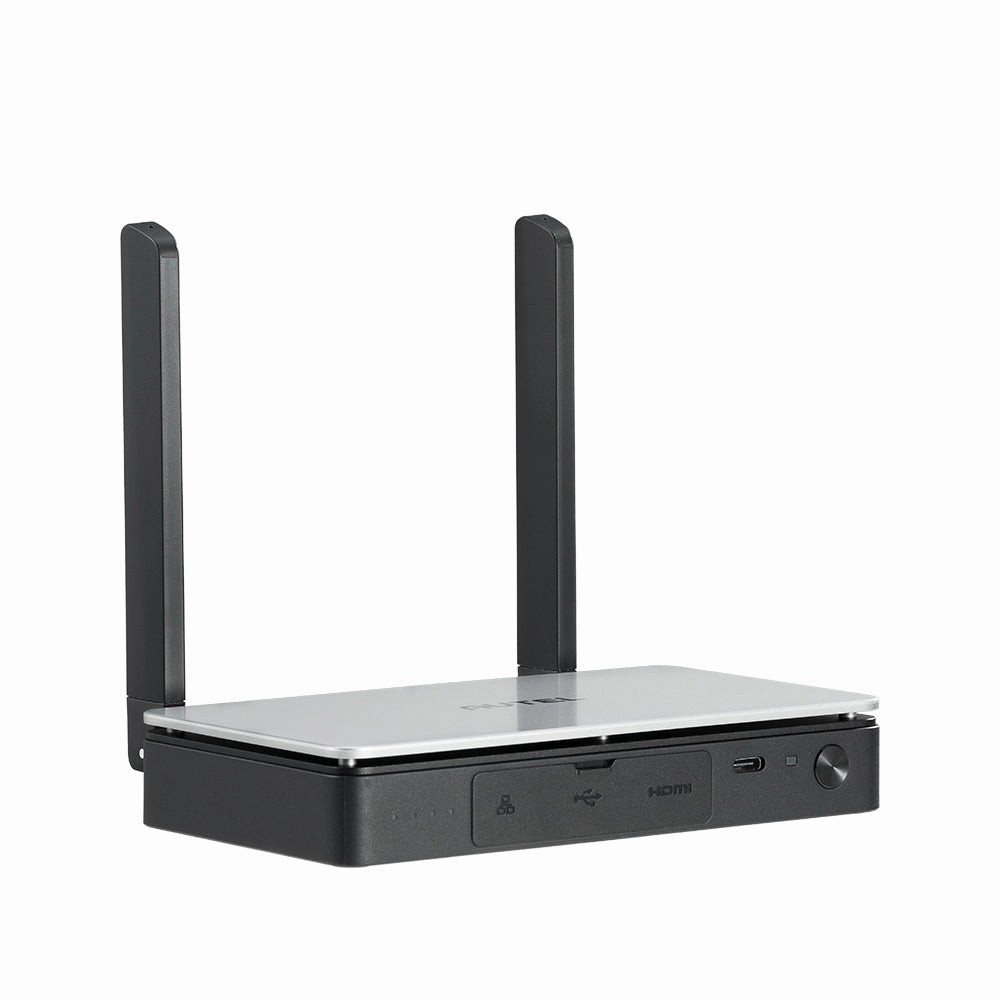

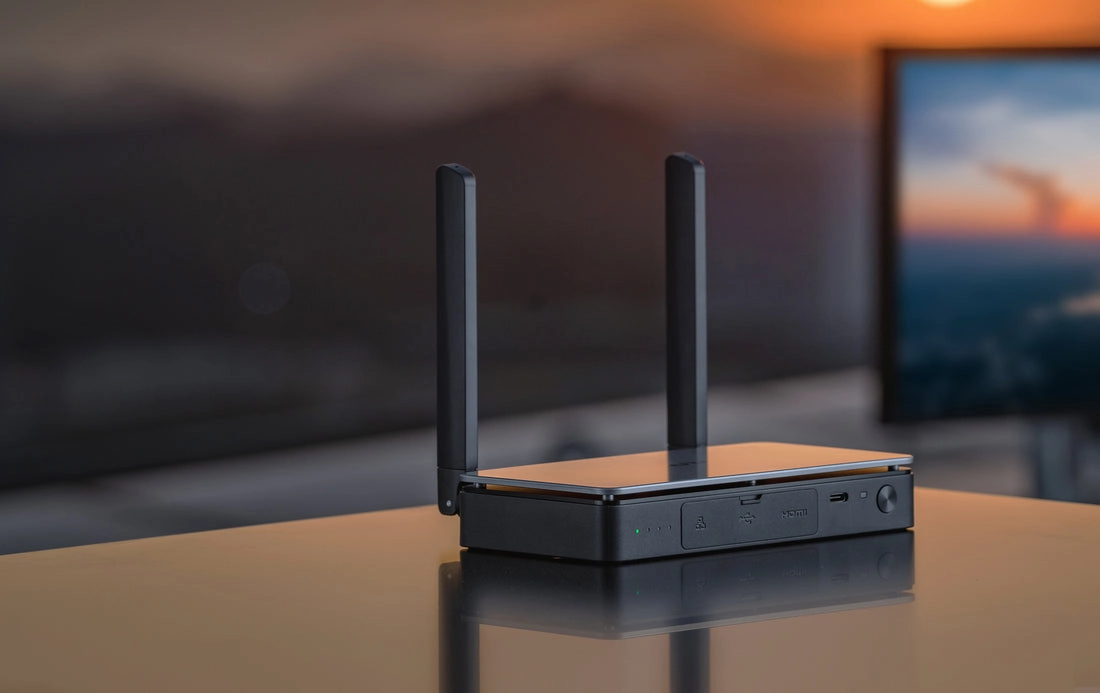

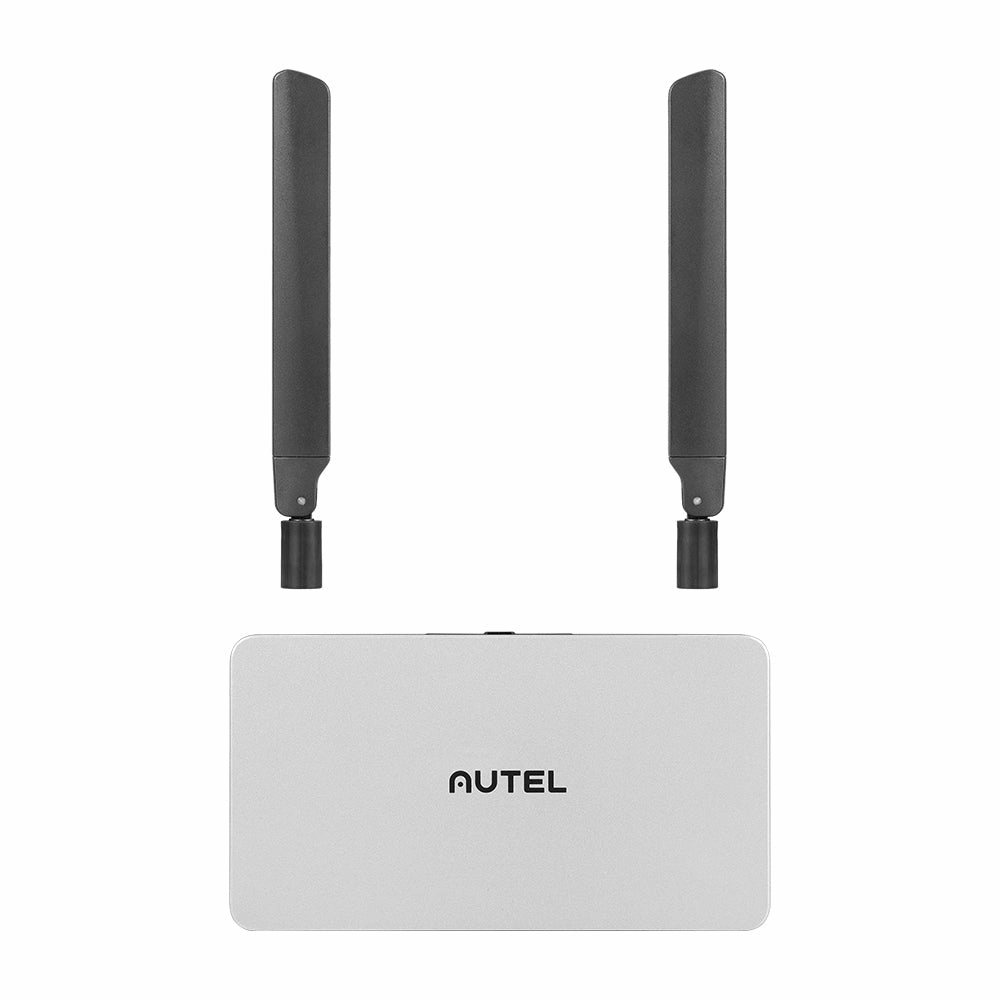

Autel Robotics Live Deck 2

A dedicated broadcasting station for your Autel Robotics Drones, the Live Deck 2 live-streams real-time data in full HD to your TV, computer, multiple smart devices via Ethernet, USB-A, HDMI interface or livedeck generated WiFi. An impressive upgrade, Live Deck 2 boasts of an upgraded image transmission tech with 4x increased anti-interference ability, a remarkable enhancement from Live Deck 1.

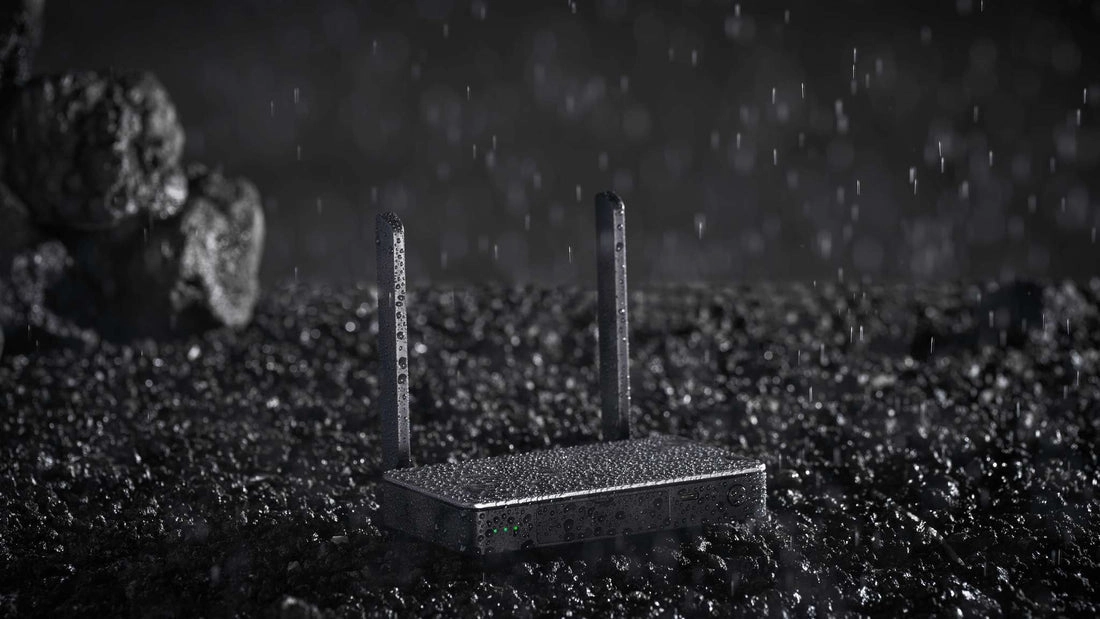

This IP43 weather resistant transmission center needs no internet and can simply plug and play straight from the box. Engineered with multi-band strong transmission, Live Deck 2 supports working frequencies of 2.4GHz/5.8GHz/900MHz.

Live Deck 2 can stream real-time data for up to 5 hours on a single charge thanks to its powerful 6200mAh lithium battery that can plug on to any micro USB port or portable battery pack to rejuvenate.

Highlights:

  • 1080P/60FPS Video Stream
  • Three Auto-Switch Bands
  • 7.5 Miles Transmission Range
  • 5-Hour Battery Life
  • IP 43 Resistance
  • Advanced signal anti-interference system
  • Secure closed-loop system provides optimal security

Specifications:

Weight: 424.5g

Dimensions: 152*111*23.2mm (antennas folded) 223.9*152*23.3mm (antennas unfolded)"

Ingress Protection: IP43

Operating Frequency: 902-928MHzFCC 2.400-2.4835GHz 5.725-5.850GHzNon-Japan 5.650-5.755GHzJapan Only)

Transmitter Power (EIRP): 900MHz: FCC<=33dBm 2.4GHz: CC/NCC<=33dBm; CE/MIC/SRRC/KC<=20dBm 5.8GHz/5.7GHz: FCC/SRRC/NCC<=33dBm; KC<=20dBm; CE<=14dBm"

Max Transmission Distance (unobstructed, free of interference): 12km

Operating time: 5h

Operating Current/Voltage: 1.3A/3.85V (not connected to smartphone)

Battery Type: Li-Po

Battery Capacity: 6200mAh

Rated Power: 5 W

Operating Temperature: 14F~104F (-10C~40C)

Operating Humidity: 95%RH

HDMI: 1080p@60 fps

Ethernet: 100M

What's in the Box:

1 x Live Deck 2

2 x Pair of SMA Threaded Antennas
