The Sky is Your Playground

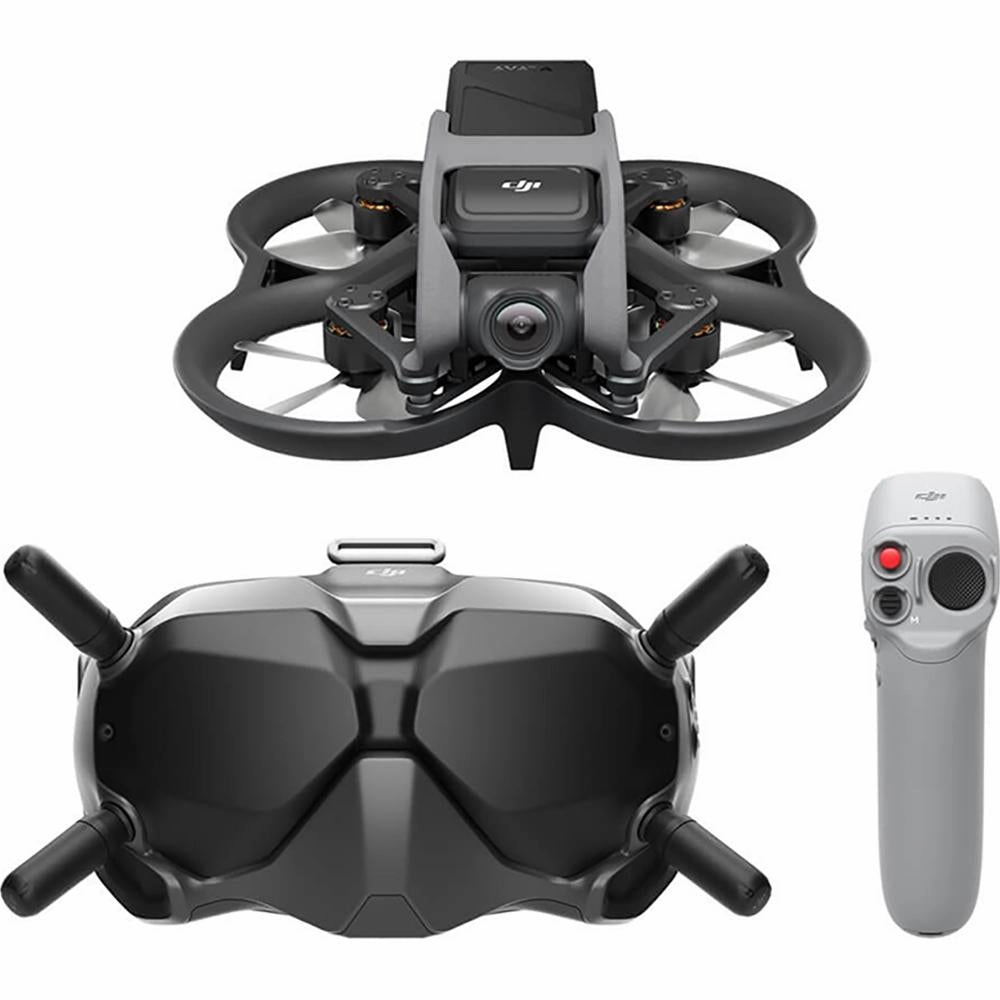

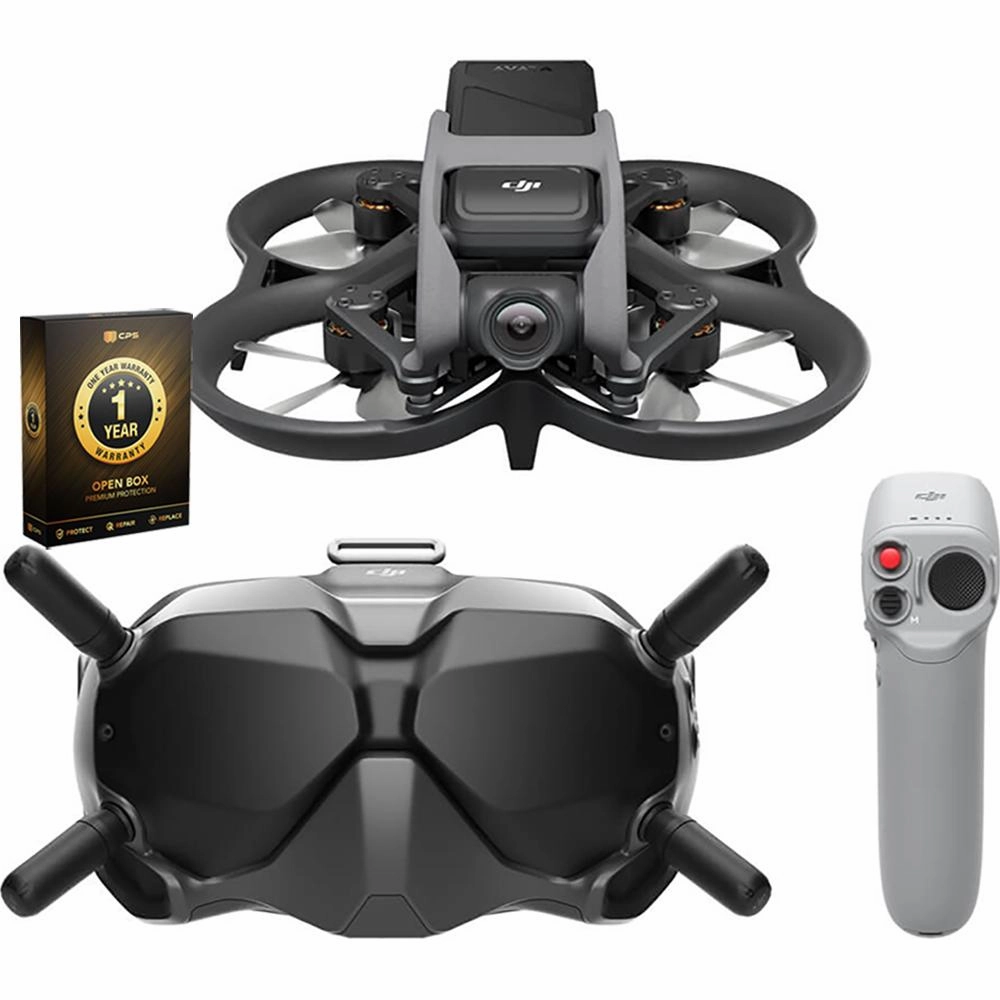

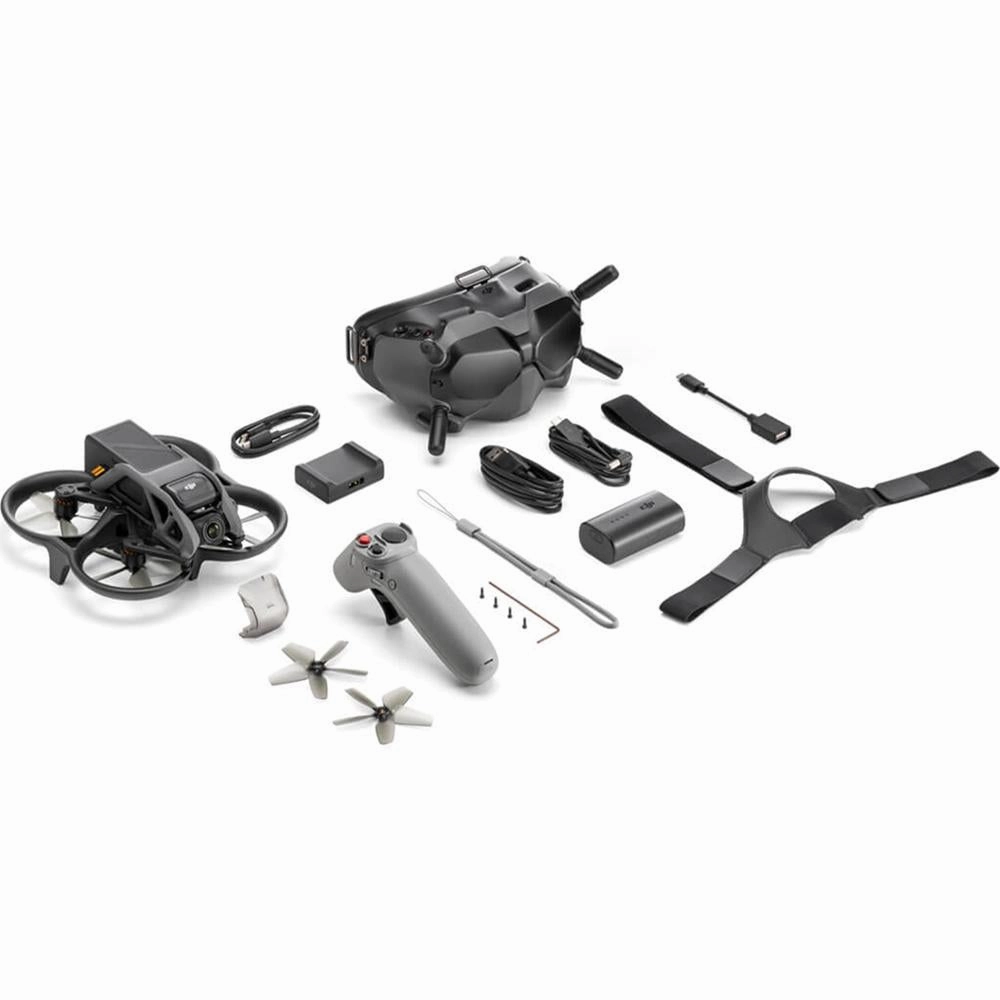

When you combine Avata with the goggles and motion controller, flight becomes accessible to all. [1] Experience the thrill of total immersion with unrivaled safety and control. Embrace your spontaneity and capture the world around you. Some of us were Born to Fly.
Product Highlights:
Immersive Flight Experience
Intuitive Motion Controller
4K Stabilized Video
Palm-Sized and Agile

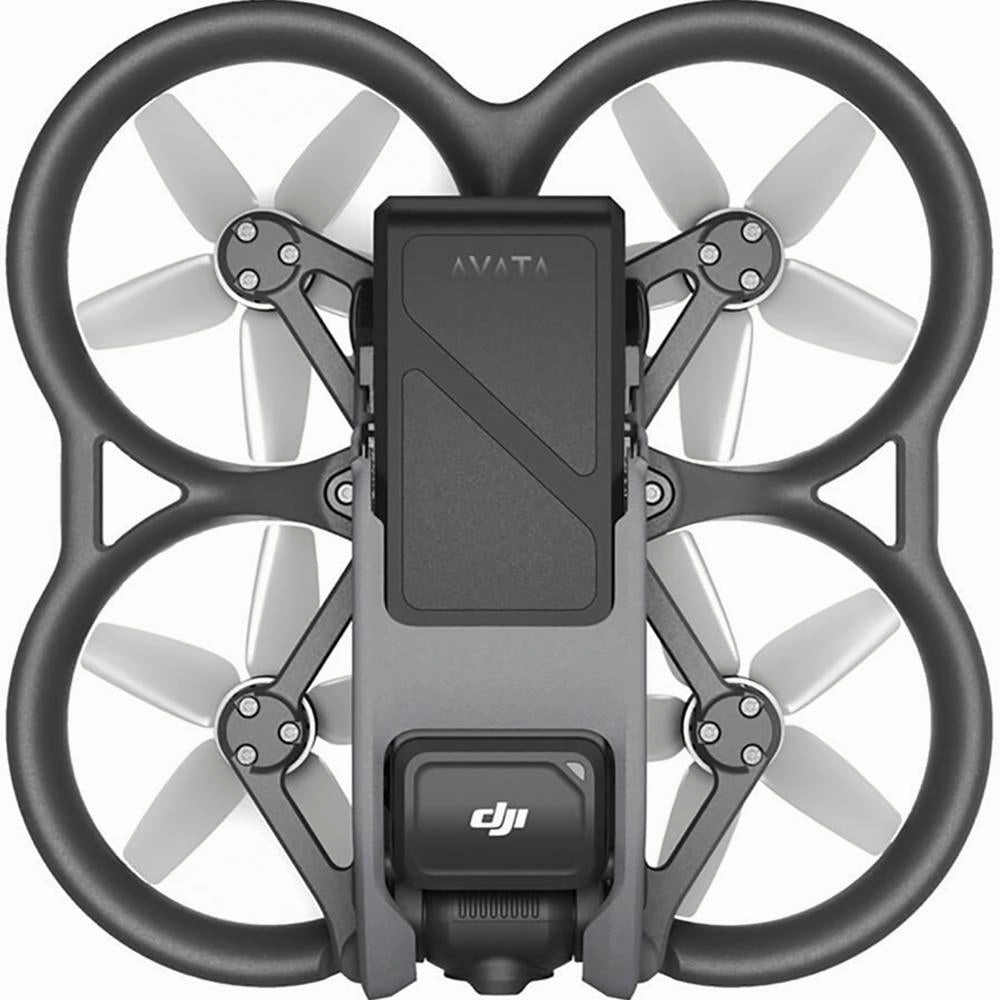

Built-in Propeller Guard
HD Low-Latency Transmission
Product Features:
Where Agility Meets Toughness

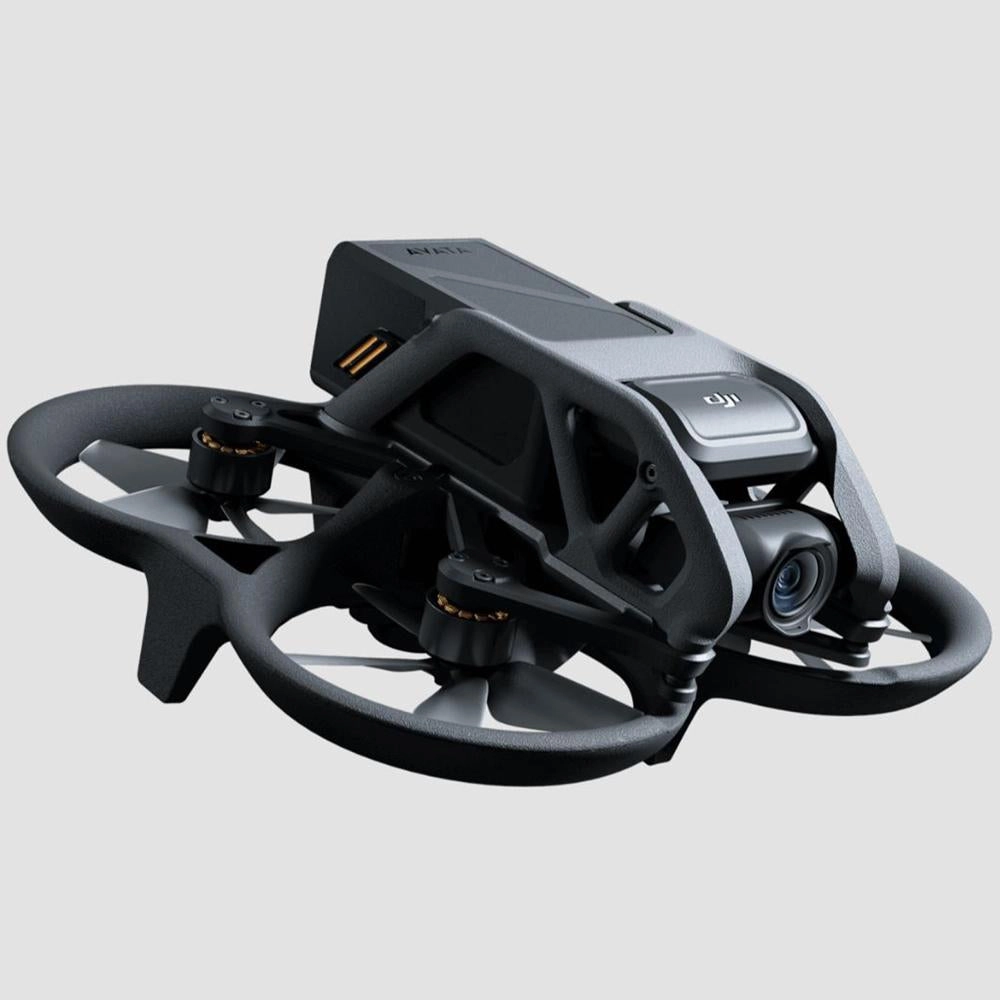

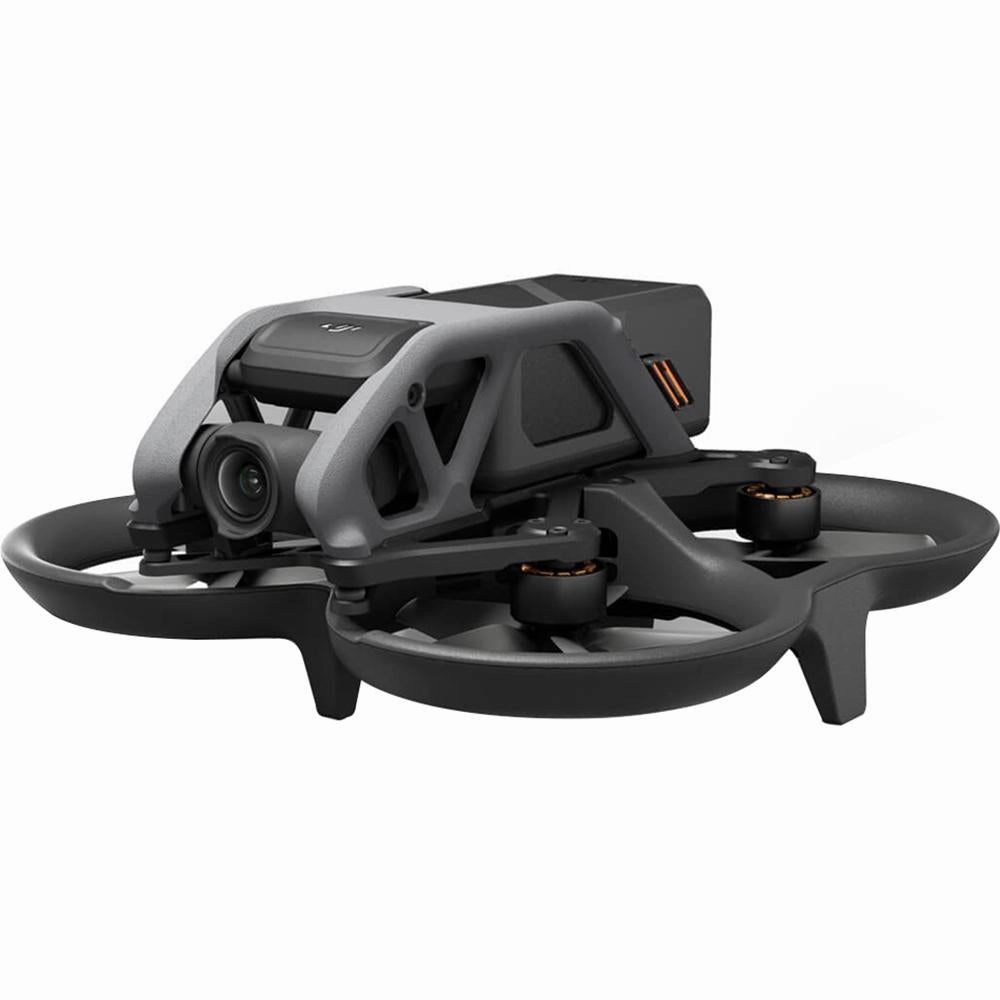

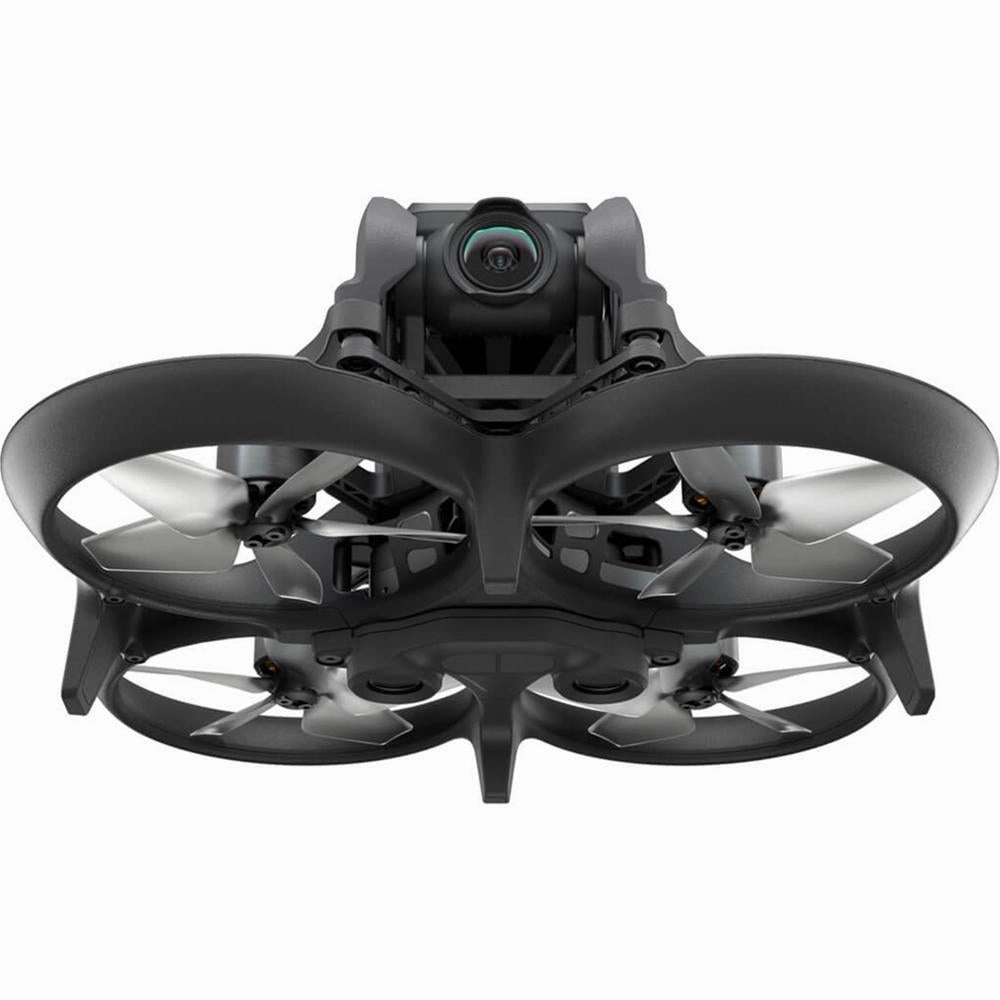

Compact and lightweight, DJI Avata is nimble in tight spaces. Every aspect of its design was made for you to be bold. The built-in propeller guard means that if Avata comes in contact with an object, it can bounce back, stay in the air, and can keep on flying.
Get in the Pilot's Seat

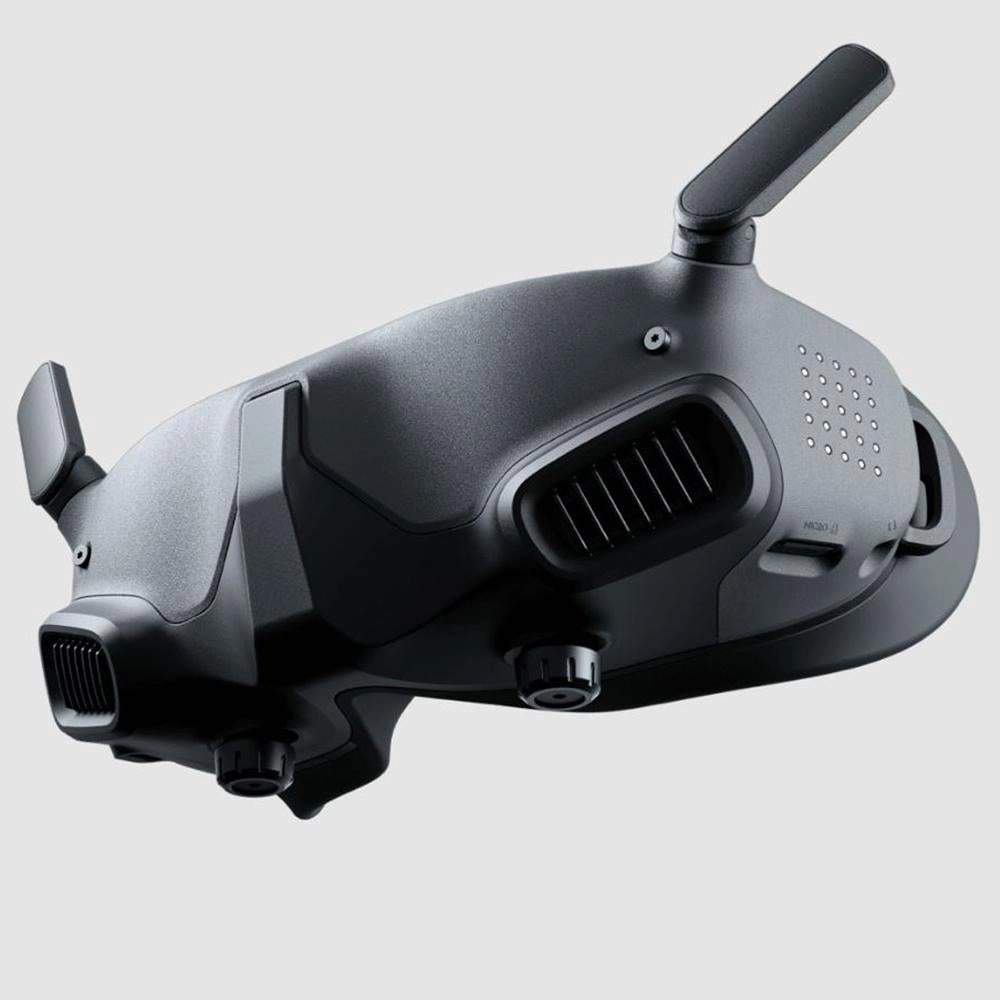

Enjoy next-level comfort and convenience with DJI Goggles 2. Now smaller, lighter, and equipped with Micro-OLED screens, so you experience outstanding clarity as you navigate the sky. DJI Avata also supports DJI FPV Goggles V2.
Get a Feel for Flying

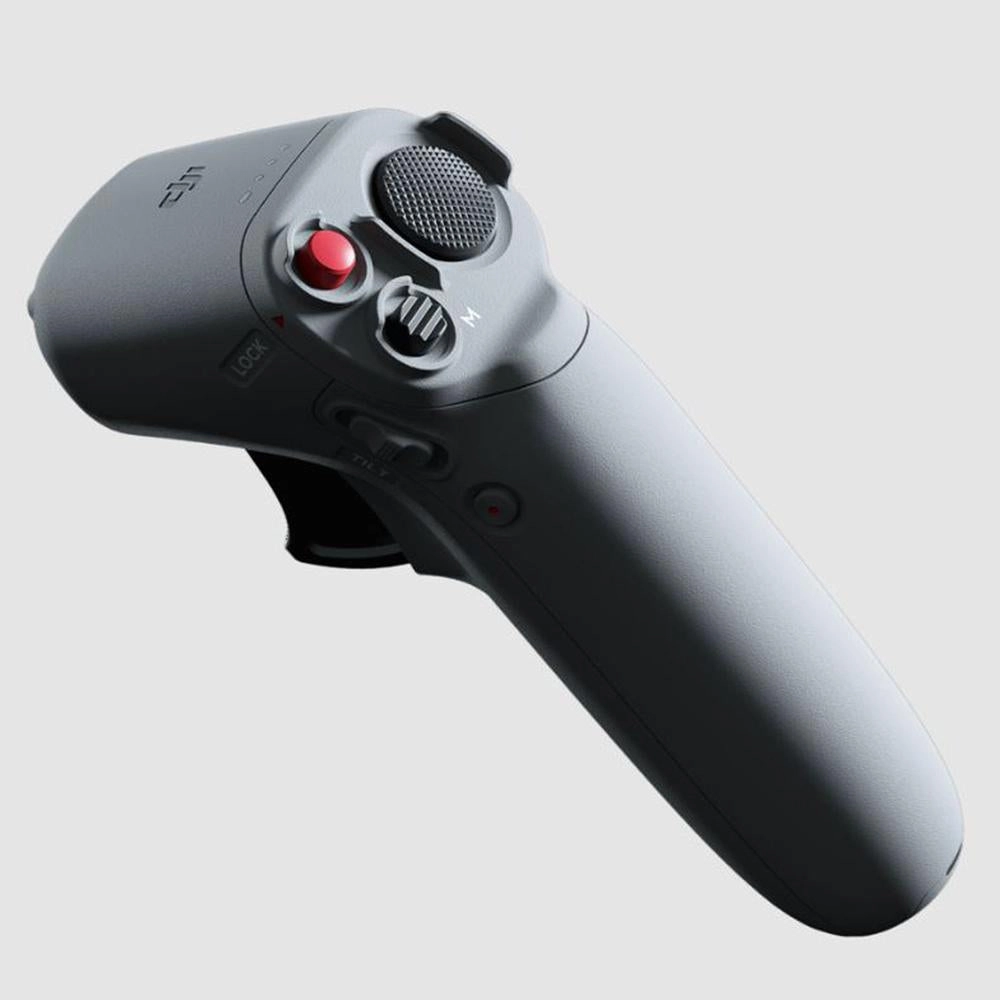

With the DJI Motion Controller, intuitive flight is in your hands. Squeeze the trigger and bolt forward or turn a corner with the swivel of your wrist. The controls are easy to use and provide a totally unique way to fly.
A Breakthrough in FPV Visuals
Equipped with a 1/1.7-inch CMOS sensor, DJI Avata supports 4K ultra-wide-angle recording with an f/2.8 aperture. Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats.
155 Degree Super-Wide FOV
Most camera drones offer, at best, an 84 degree FOV. DJI Avata kicks things up a gear with its super-wide 155 degree FOV. This expanded FOV is closer to that of what we see with our own eyes, creating impactful, hyper-immersive visuals.
Smooth Shooting
Keep your footage stable as you swoop and dive with RockSteady 2.0 and HorizonSteady. These flagship technologies open a world of cinematic possibilities by reducing camera shake and ensuring smooth ultra-HD video.
Agile in the Editing Room
Dive into a world of colors by shooting in D-Cinelike color mode. Make your footage pop with advanced color grading in post-editing and turn your creation into a masterpiece.
Portable and Ready for Adventure

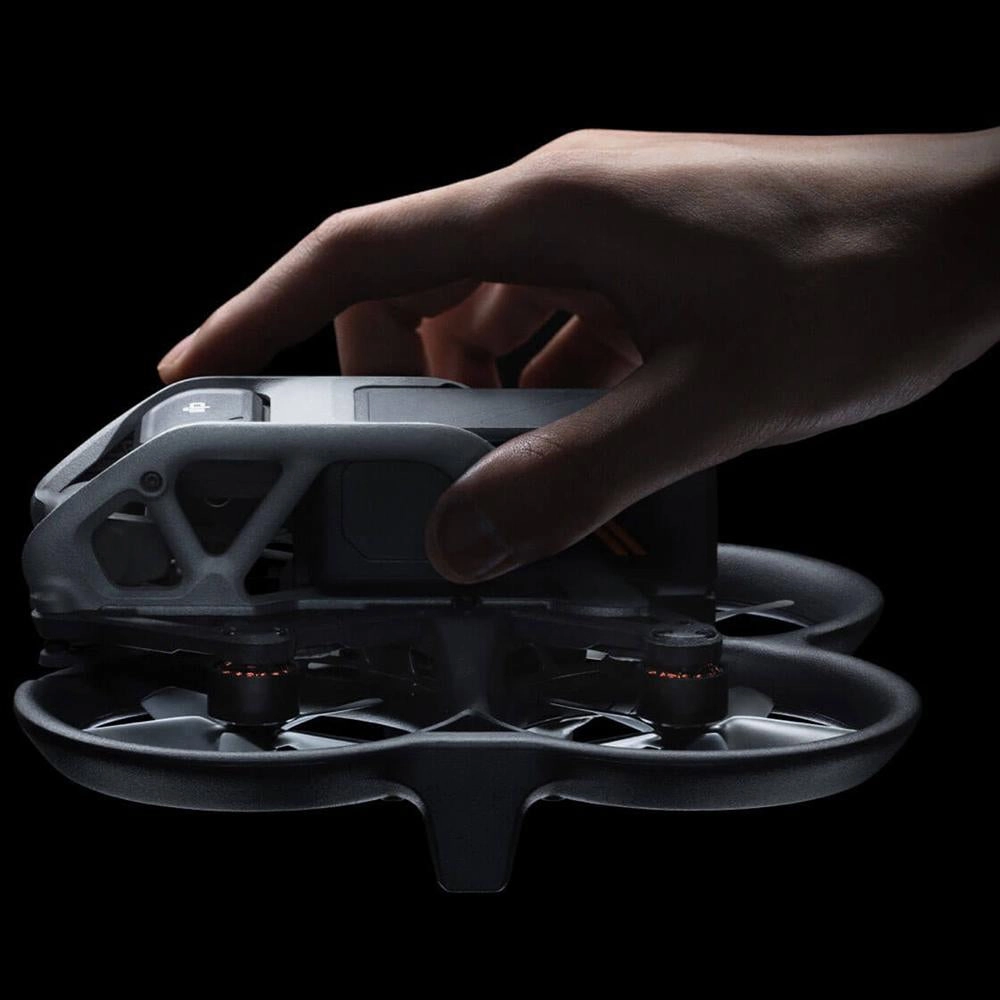

Avata adopts a new innovative design that is made with convenience in mind. It is more lightweight, compact, and easy to carry.
Be Bold. Fly Far.

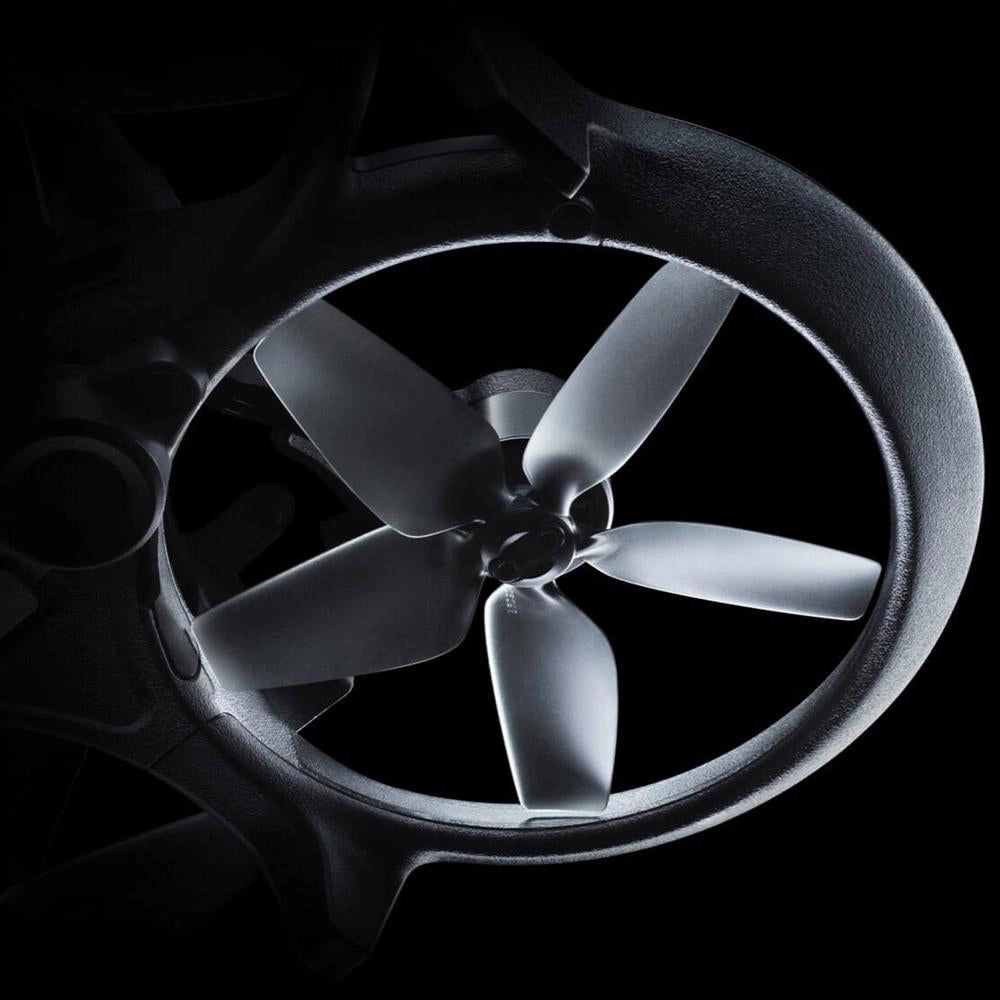

DJI Avata is built tough, so you can be brave. The durable frame reduces the risk of damage, giving you more peace of mind. The new ducted aerodynamic design optimizes power efficiency allowing for an impressive flight time of up to 18 minutes.
Fly Where Others Can't
Capture truly unique footage as you fly between branches, under bridges, and through corridors, filming in places previously inaccessible.
Turtle Mode
Should Avata fall on its back, activate Turtle with a few simple taps and watch it spring back into action.
Downward Obstacle Sensing System
In addition to the built-in propeller guard, Avata features downward binocular vision and ToF infrared sensing for even greater safety. These sensors detect obstacles below and allow Avata to perform low-altitude or indoor flight.
Who Said Safety Isn't Fun?
Enjoy the experience with less flight anxiety. The motion controller's Emergency Brake button lets you stop on a dime at the tap of a button. And with support for RTH, you get added protection when the battery is low or signal drops out.
Transmission You Can Depend On
Avata features DJI's flagship O3 video transmission and 2T2R omnidirectional antennas for unrivaled stability and responsiveness during flight. Enjoy a crisp and smooth real-time view in your goggles, even in environments with interference.
Product Specifications:
Camera
Sensor -1/1.7-inch CMOS
Effective Pixels -48 MP
Lens FOV - 155
Equivalent Focal Length -12.7 mm
Focal Length -2.34 mm
Aperture -f/2.8
Focus Mode -FF
Focus Range -0.6 m to
ISO Range -100-6400 (Auto); 100-25600 (Manual)
Shutter SpeedVideo -1/8000-1/50 s
Photo -1/8000-1/50 s
Still Photography Mode -Single Shot
Max Image Size -40003000
Photo Format -JPEG
With DJI FPV Goggles V2 -4K@50/60fps; 2.7K@50/60/100/120fps; 1080p@50/60/100/120fps
Video Format -MP4
Max Video Bitrate -150 Mbps
Color Mode -Standard; D-Cinelike
EIS -Supports RockSteady and HorizonSteady; Can be disabled
Distortion Correction -Supports Normal Mode, Wide Mode, and Ultra Wide Mode
Supported File System -exFAT (recommended); FAT32
Gimbal
Mechanical Range -Tilt: -95 to 75
Controllable Range - Tilt: -80 to 65
Stabilization -Single-Axis (tilt)
Max Control Speed -60/s
Angular Vibration Range -0.01
Electronic Roll Axis -Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
Aircraft
Model -QF2W4K
Takeoff Weight -Approx. 410 g
Dimensions (LWH) -18018080 mm
Diagonal Distance -120 mm
Max Ascent Speed -6 m/s (Normal Mode, Sport Mode)
Max Descent Speed -6 m/s (Normal Mode, Sport Mode)
Max Speed -8 m/s (Normal Mode); 14 m/s (Sport Mode); 27 m/s (Manual Mode)
Maximum Takeoff Altitude -5000 m
Max Hover Time -Approx. 18 mins [2]
Max Flight Distance -11.6 km
Max Wind Speed Resistance -10.7 m/s (Level 5)
Operating Temperature Range --10 to 40 C (14 to 104 F)
Transmission Power (EIRP)
FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
Antennas -Dual Antennas, 2T2R
GNSS -GPS Galileo BeiDou
Hovering Accuracy Range
Vertical:0.1 m (with Vision Positioning); 0.5 m (with GNSS Positioning)
Horizontal:0.3 m (with Vision Positioning); 1.5 m (with GNSS Positioning)
Supported SD Cards -microSD (up to 256 GB)
Recommended microSD Cards -SanDisk Extreme U3 V30 A1 32GB microSDXC; SanDisk Extreme Pro U3 V30 A1 32GB microSDXC; Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC; Kingston Canvas React Plus U3 V90 A1 64GB microSDXC; Kingston Canvas React Plus U3 V90 A1 128GB microSDXC; Kingston Canvas React Plus U3 V90 A1 256GB microSDXC; Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
Internal Storage -20 GB
Sensing System
Downward (Binocular Vision and ToF)
ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-10 m
Vision Sensor Hovering Range: 0.5-20 m
Operating Environment -Diffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people); Adequate lighting (lux > 15, normal indoor lighting conditions)
Intelligent Flight Battery
Battery Capacity -2420 mAh
Voltage -14.76 V
Charging Voltage Limit -17 V
Type -Li-ion
Chemical System -LiNiMnCoO2
Energy -35.71 [email protected]
Discharge Rate -Typical: 7C
Weight -Approx. 162 g
Charging Temperature Range -5 to 40 C (41 to 104 F)
Video Transmission
Communication Frequency -2.400-2.4835 GHz (RX only); 5.725-5.850 GHz (RX and TX)
Communication Bandwidth -Max 40 MHz
Live View Quality and Latency
810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
Max Video Transmission Bitrate - 50 Mbps
Max Video Transmission Range - 10 km (FCC), 2 km (CE), 6 km (SRRC)
DJI FPV Goggles V2
Model -FGDB28
Weight - Approx. 420 g (headband and antennas included)
Supported Video and Audio Playback Formats -MP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature Range -0 to 40 C (32 to 104 F)
Video Recording Format -MOV (video coding format: H.264)
FOV -30 to 54, adjustable; Image Size: 50% to 100%
Communication Frequency -2.400-2.4835 GHz; 5.725-5.850 GHz
Max Video Transmission Bitrate - 50 Mbps
Dimensions (LWH) -Without antennas: 184122110 mm; With antennas: 202126110 mm
Transmission Power (EIRP) - 2.400-2.4835 GHz
FCC: 28.5 dBm
CE: 20 dBm
SRRC: 20 dBm
Transmission Power (EIRP) -5.725-5.850 GHz
FCC: 31.5 dBm
CE: 14 dBm
SRRC: 19 dBm
Screen Size (single screen) -2-inch
Power Input -Dedicated DJI Goggles batteries
Supported SD Cards -microSD (up to 256 GB)
Communication Bandwidth -Max 40 MHz
Interpupillary Distance Range -58-70 mm
Refresh Rate -144 Hz
Screen Resolution -1440810
DJI FPV Goggles V2 Battery
Weight -Approx. 119 g
Dimensions (LWH) -73.0440.9626 mm
Capacity -1800 mAh
Voltage -Max 9 V
Chemical System -LiNiMnCoO2
Type -Li-Po 2S
Energy -18 Wh
Charging Temperature Range -0 to 45 C (32 to 113 F)
Max Charging Power -10 W
Operating Time -Approx. 110 mins
DJI Motion Controller
Model -FC7BMC
Weight -Approx. 167 g
Communication Frequency -2.400-2.4835 GHz; 5.725-5.850 GHz
Transmission Power (EIRP)
2.4 GHz: 28.5 dBm (FCC), 20 dBm (CE/SRRC)
5.8 GHz: 31.5 dBm (FCC), 19 dBm (SRRC), 14 dBm (CE)
Operating Temperature Range --10 to 40 C (14 to 104 F)
Operating Time -Approx. 5 hours
