Product Description

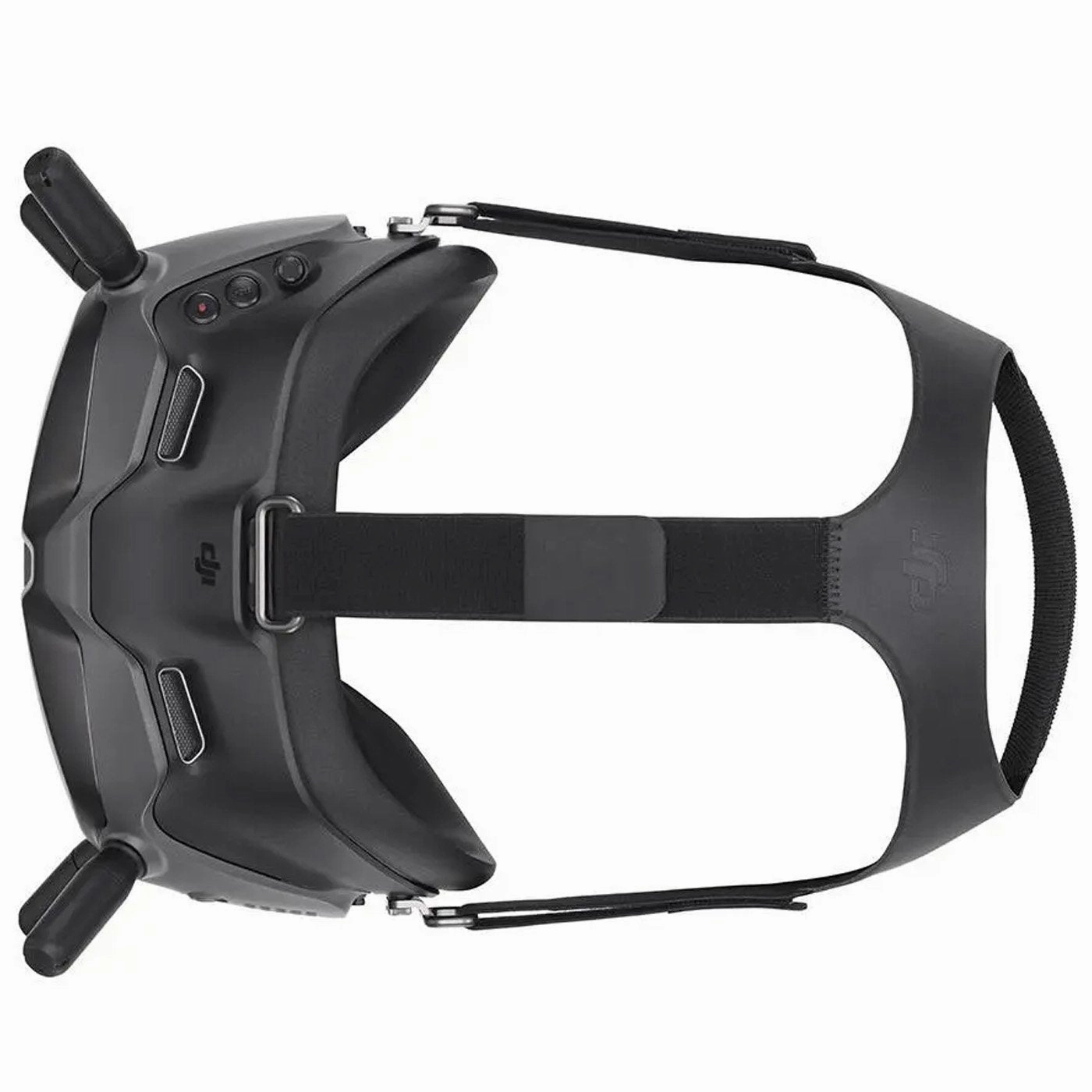

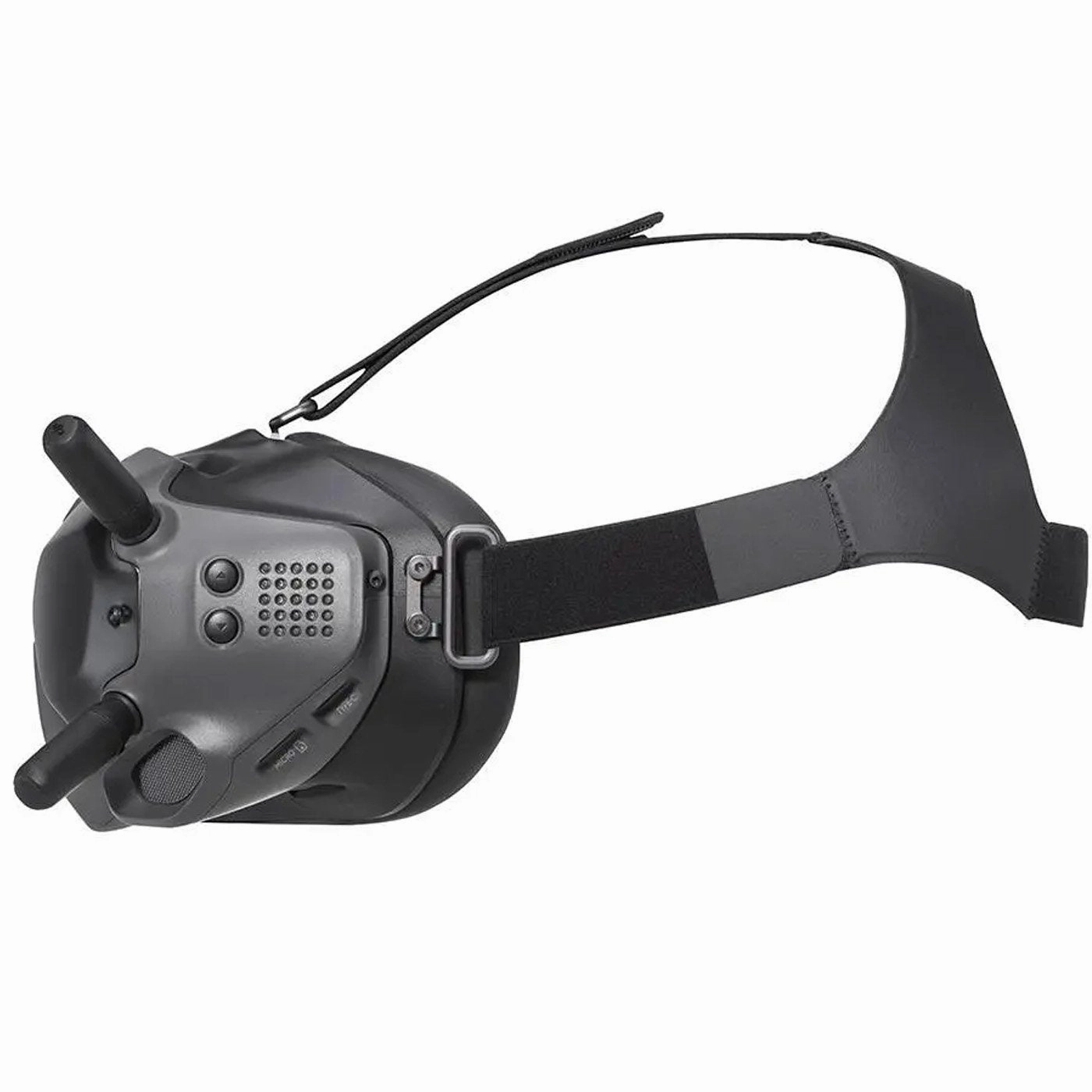

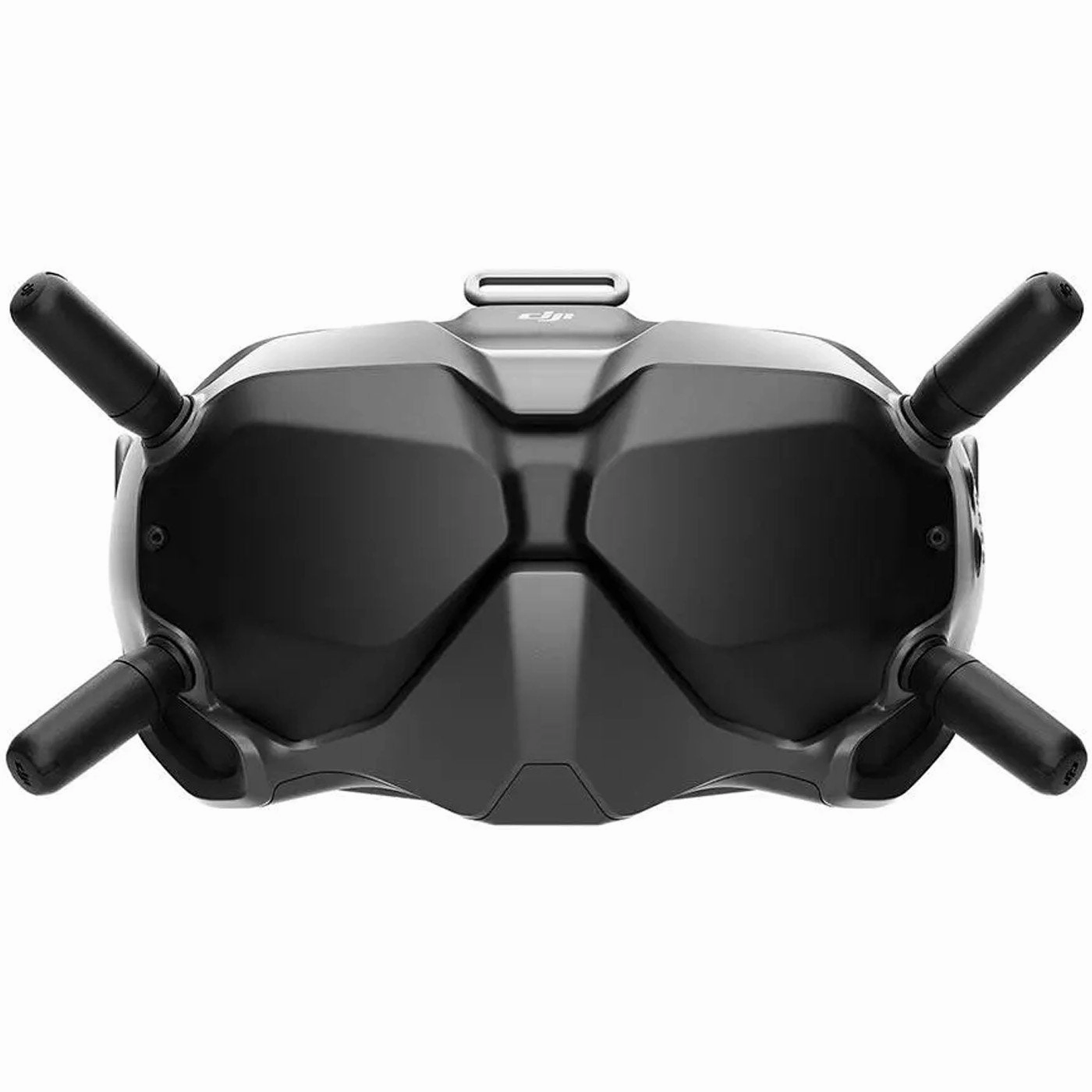

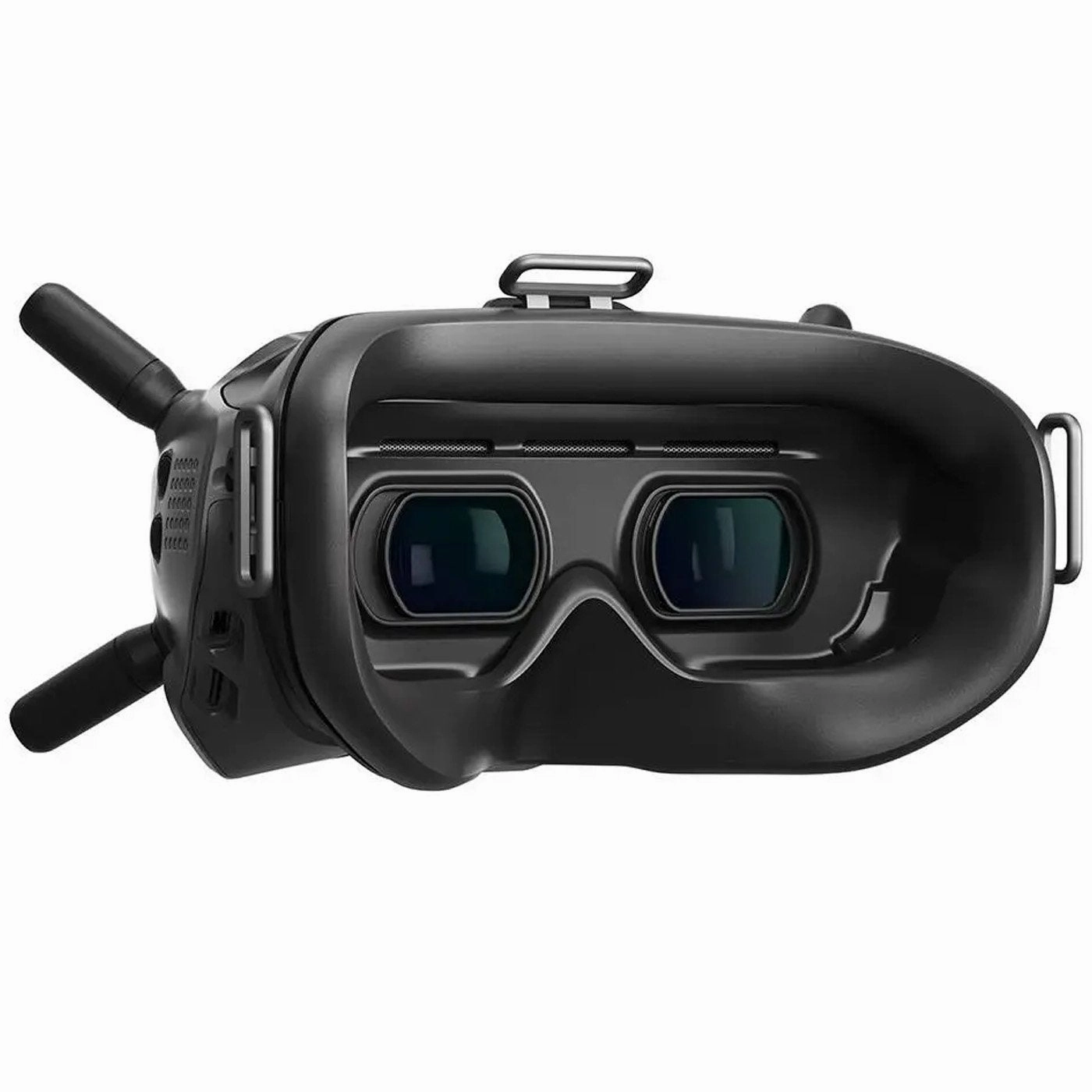

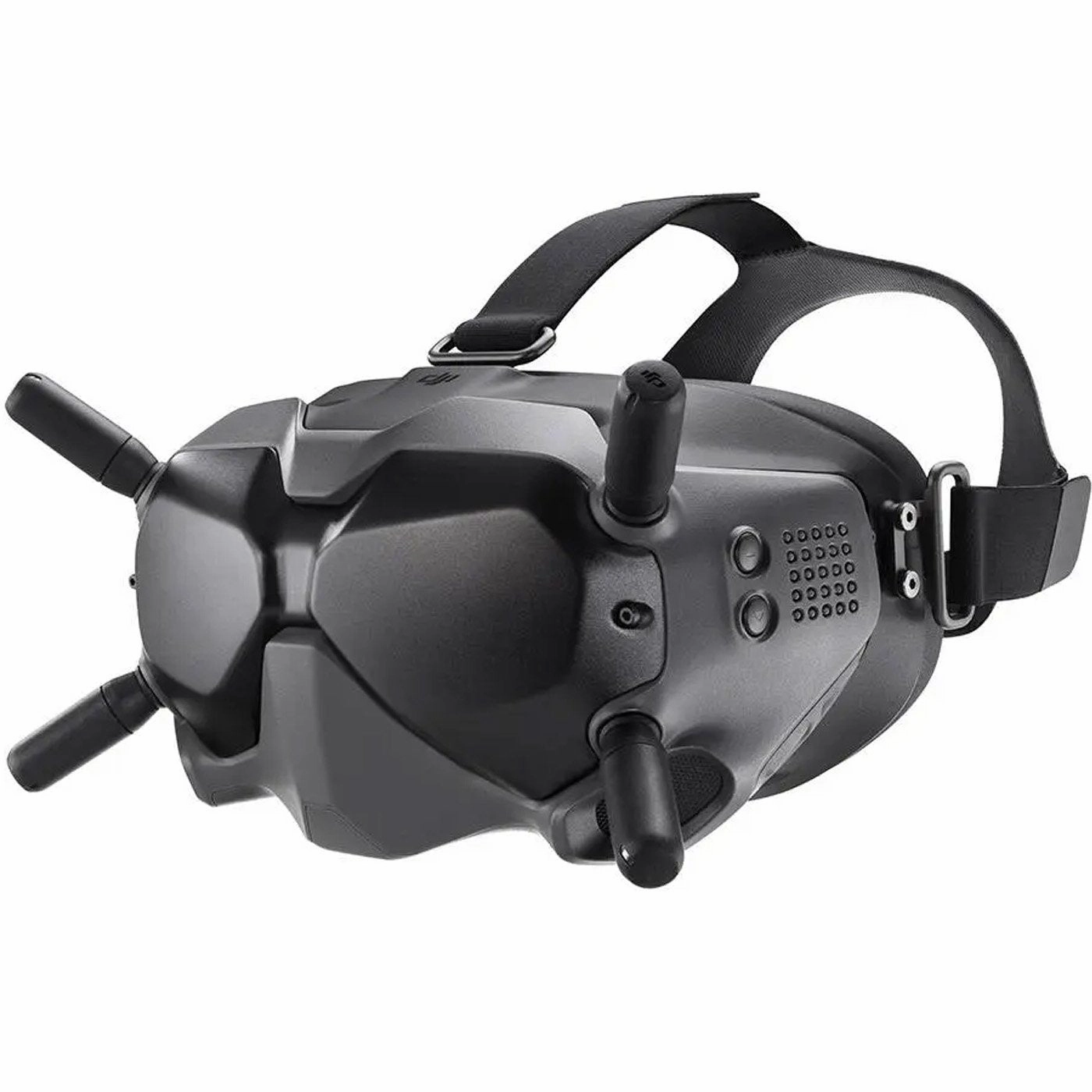

DJI's FPV Goggles V2 allow drone racing enthusiasts to view live first-person footage from up to miles away. Equipped with an optional DJI Air Unit, the goggles receive steady signals via four antennas and 2.4 or 5.8 GHz wireless signals. The goggles feature two built-in 2" screens with resolution of 1440 x 810, adjustable field of view, and up to 110 minutes of FPV fun.

Product Features

Supports

MP4 video format

MOV video format

MKV video format

Record footage on an optional microSD card up to 256GB in size

Product Specifications

Screens

Size: 2 x 2" / 5.1 cm

Screen Resolution: 1440 x 810 (Each)

Refresh Rate: 144 Hz

FOV: 30 to 54

Image Size: 50 to 100%

Interpupillar Distance Range: 2.3 to 2.8" / 58 to 70 mm

Frequency

2.4 GHz: 2.400 to 2.4835 GHz

5.8 GHz: 5.725 to 5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: 2.400 to 2.4835 GHz

2.4 GHz: (FCC/MIC) 28.5 dBm, (CE) 20 dBm, (SRRC) 20 dBm, and (MIC) 20 dBm

5.8 GHz: 5.725 to 5.850 GHz

5.8 GHz: (FCC/MIC) 31.5 dBm, (CE) 14 dBm, and (SRRC) 19 dBm

Live View

Low-Latency Mode: 810p120

High-Quality Mode: 810p60

Video Formats

Record: MP4 (H.264)

Play: MP4, MOV, MKV (Video: H.264; Audio: AAC-LC, AAC-HE, AC-3, MP3)

Memory Card:microSD (Up to 256 GB)

Battery

Capacity: 1800 mAh

Voltage: 9 V (Max)

Type: LiPo 2S

Charging Temperature: 32 to 113F / 0 to 45C

Energy: 18 Wh

Max Charging Power: 10 W

Battery Life: Approximately 110 Minutes, at Max Brightness in 77F / 25C Environment

Operating Temperature:32 to 104F / 0 to 40C

Dimensions

With Antennas: 8 x 5 x 4.3" / 20.2 x 12.6 x 11 cm

Without Antennas: 7.2 x 4.8 x 4.3" / 18.4 x 12.2 x 11 cm

Weight

With Headband & Antennas: 14.8 oz / 420 g

Packaging Info

Package Weight:1.98 lb

Box Dimensions (LxWxH):7.9 x 6.7 x 4.8"
