Product Details

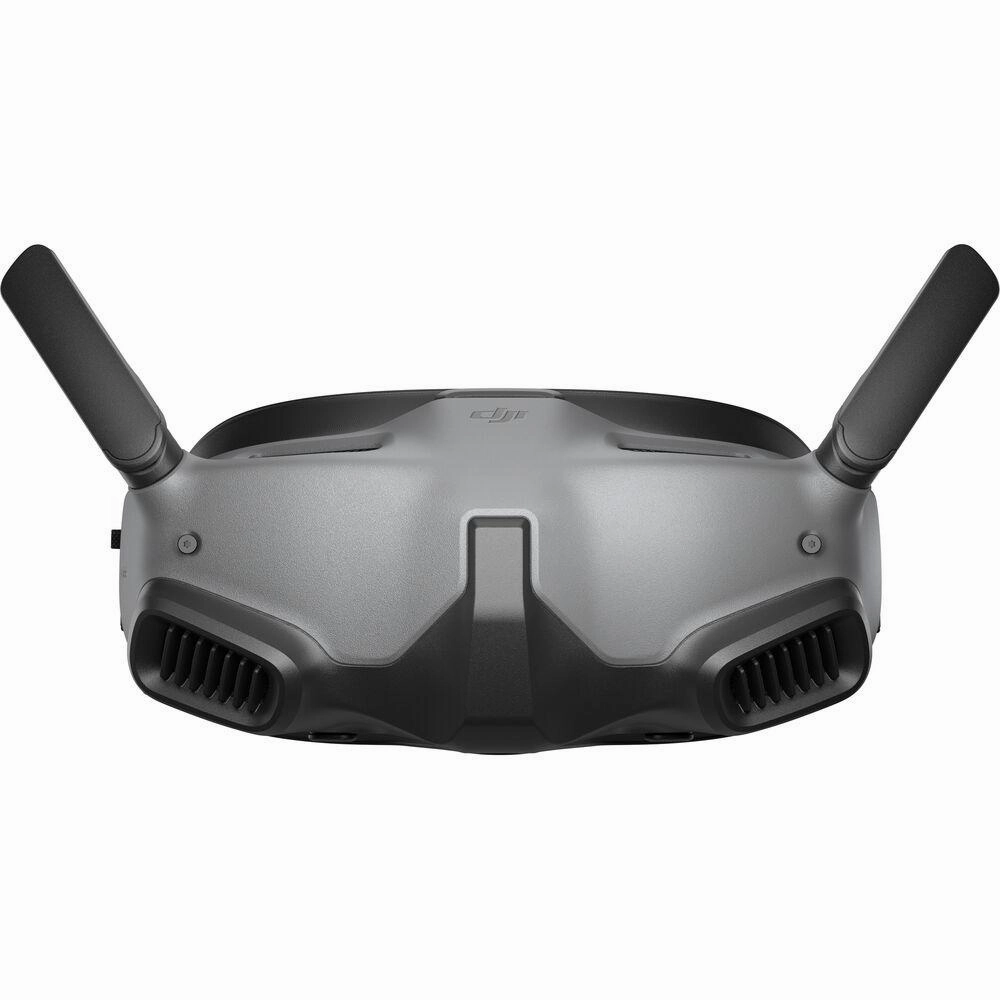

DJI Goggles Integra features an integrated design, adopts two 1080p Micro-OLED screens with up to 100Hz refresh rate, and supports ultra-low-latency video transmission, delivering a more immersive flight experience.

Compatibility

  • DJI Avata
  • DJI O3 Air Unit
  • DJI Motion Controller
  • DJI RC Motion 2
  • DJI FPV Remote Controller 2
  • DJI FPV Air Unit Module

Combined for Convenience

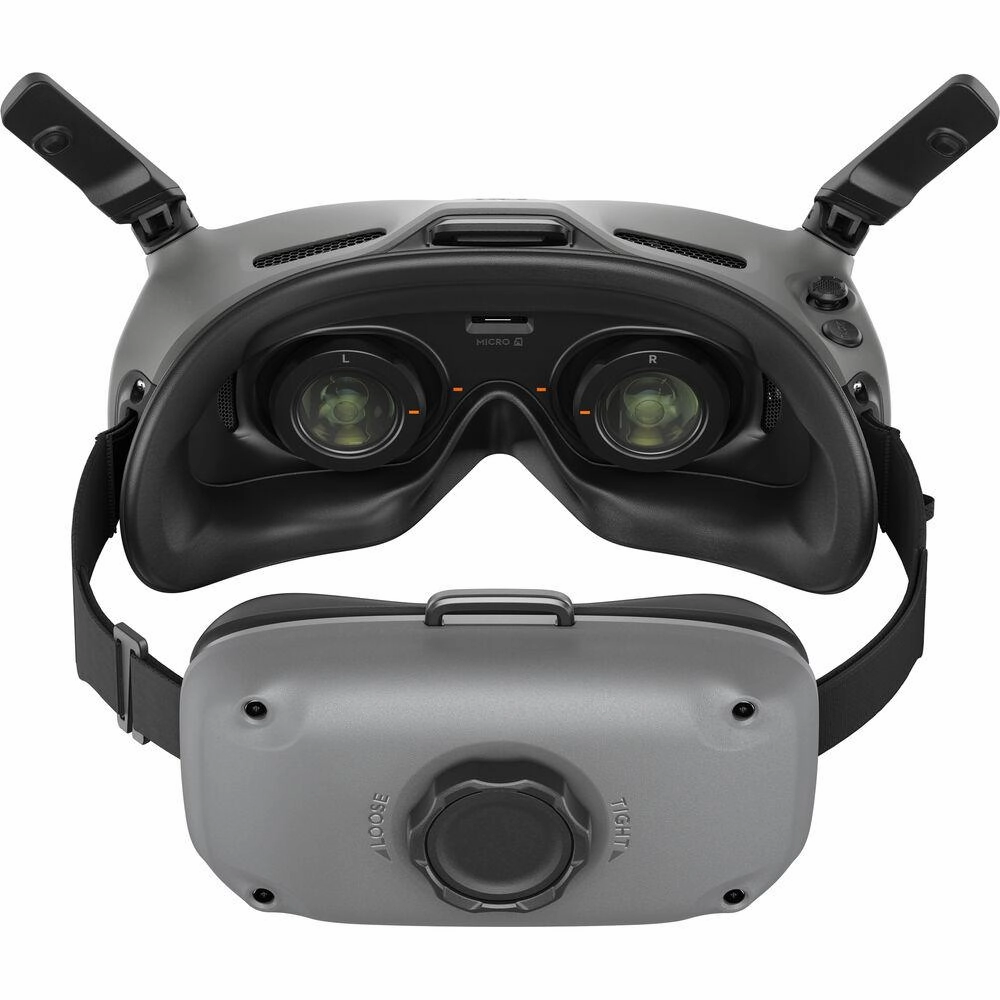

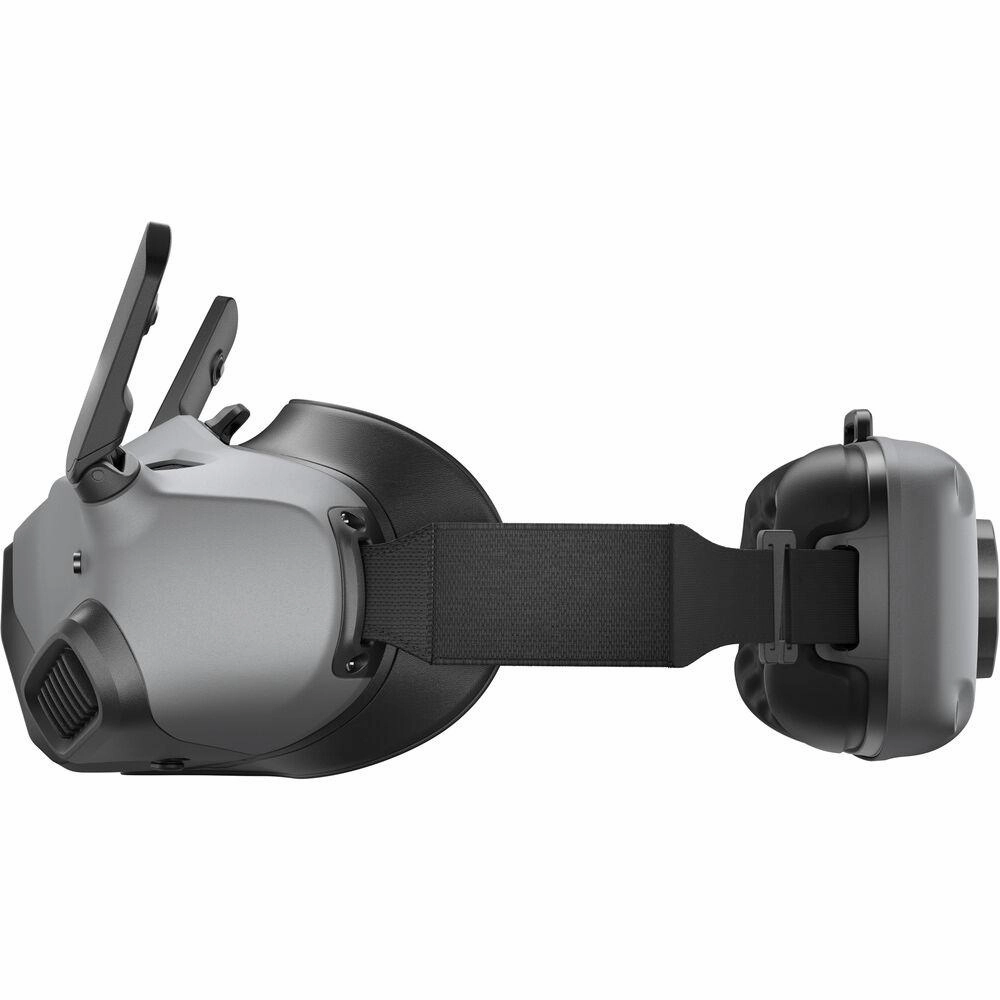

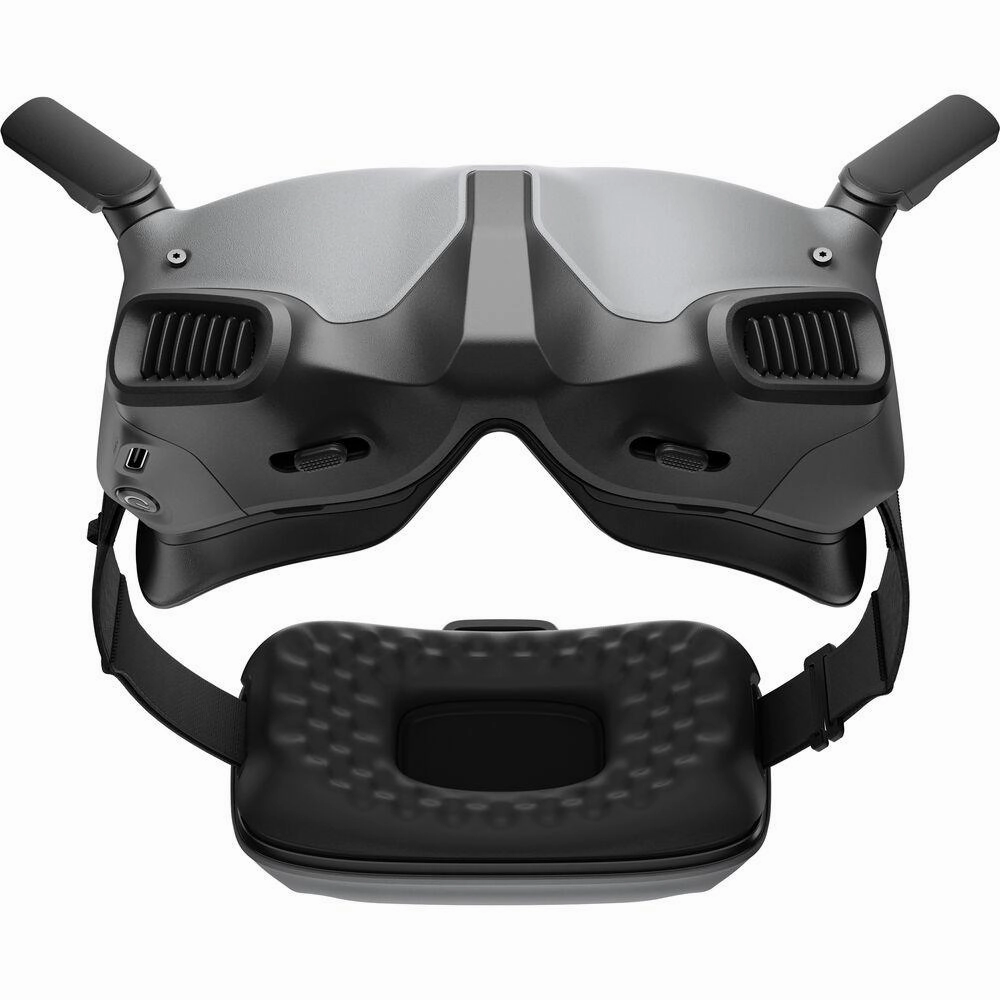

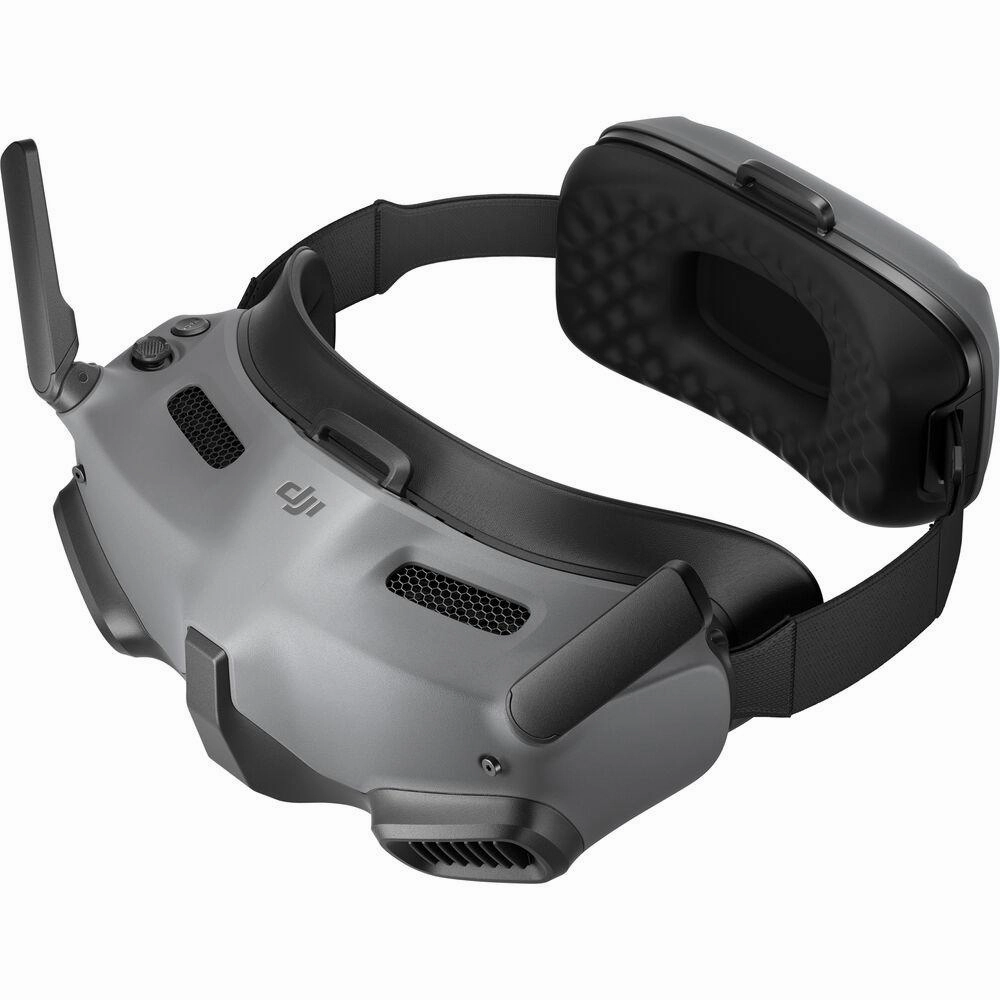

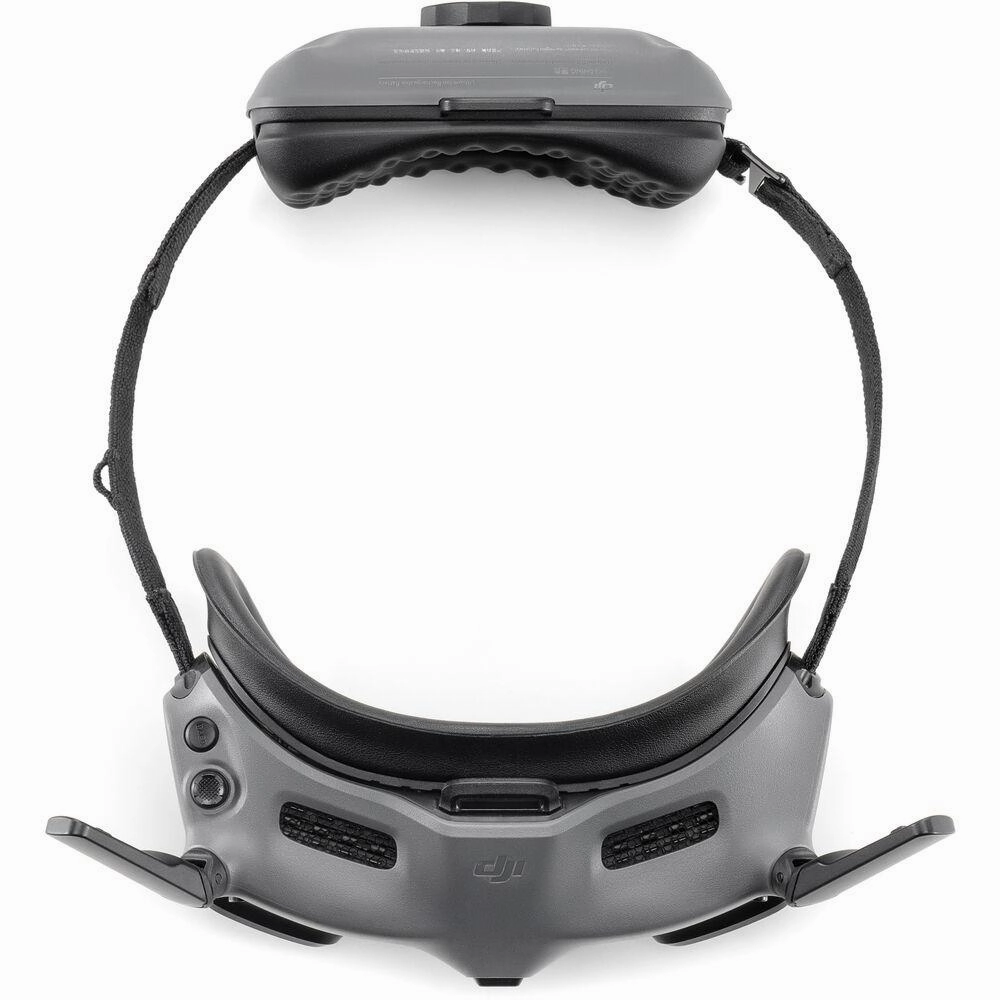

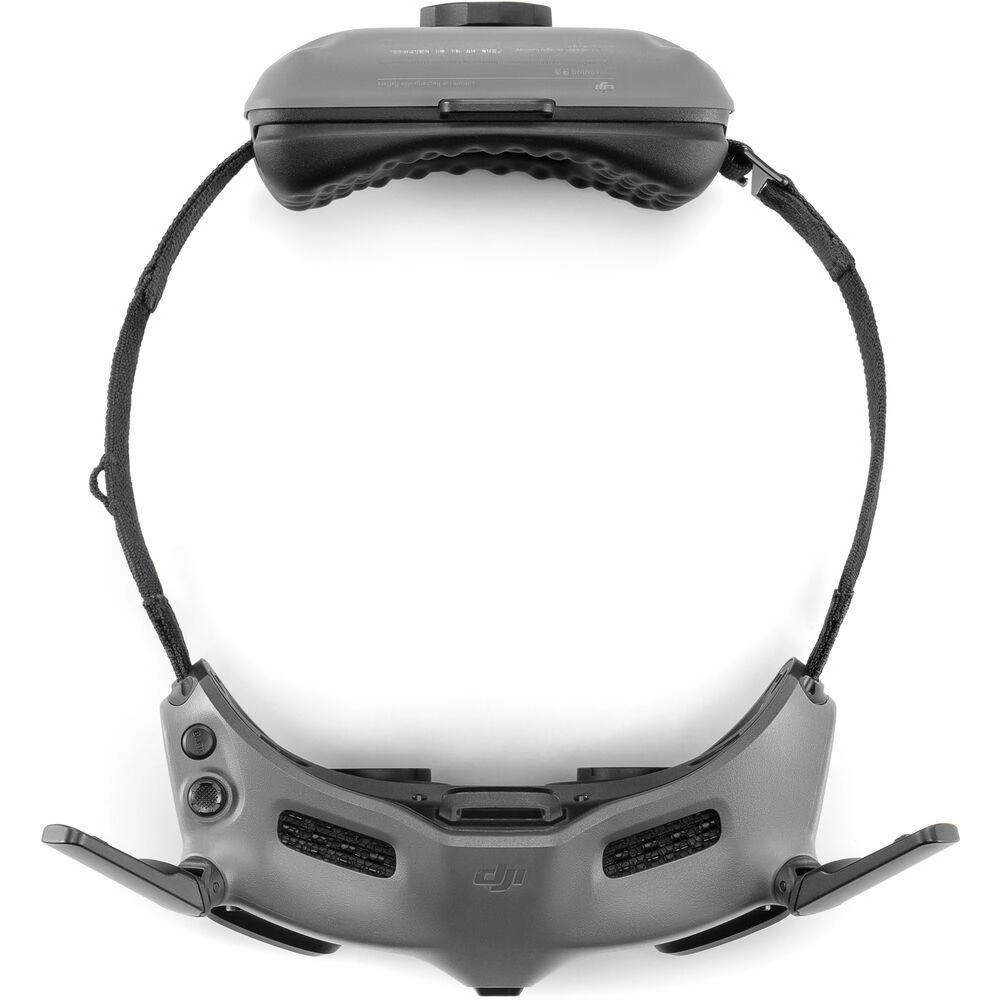

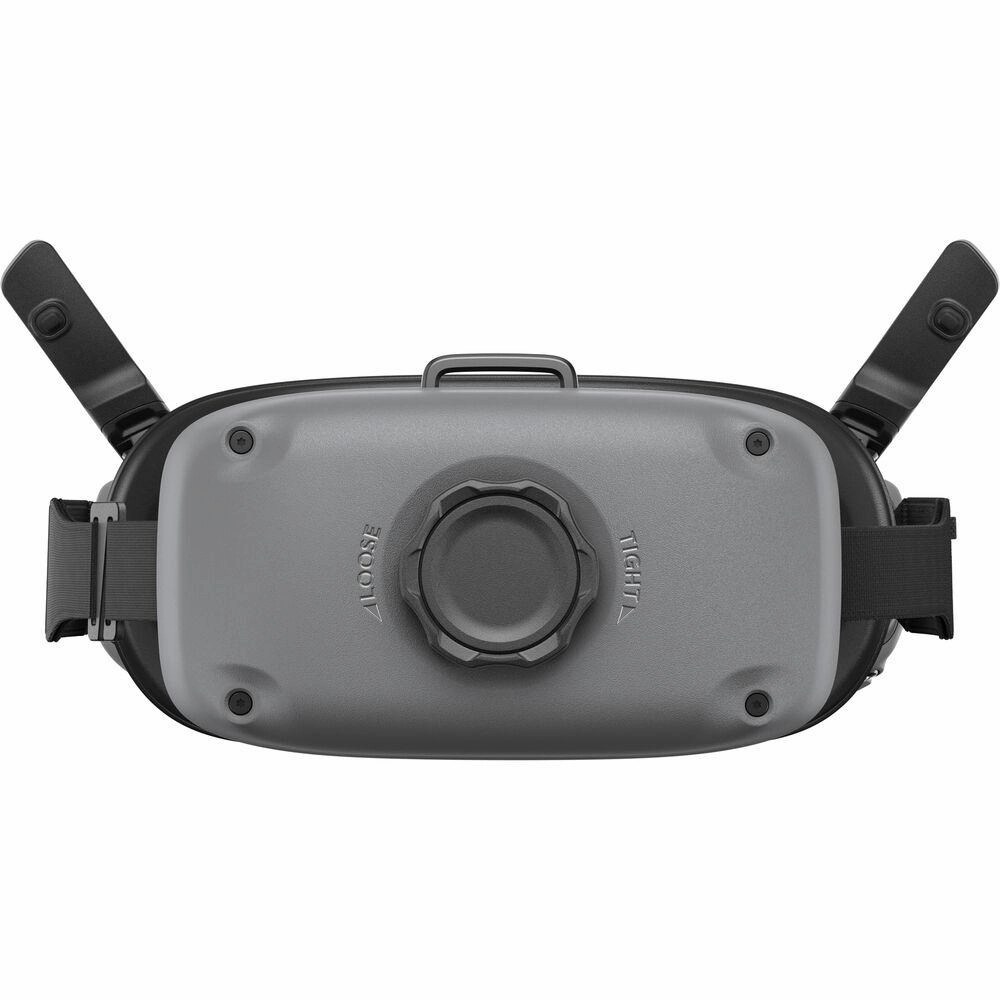

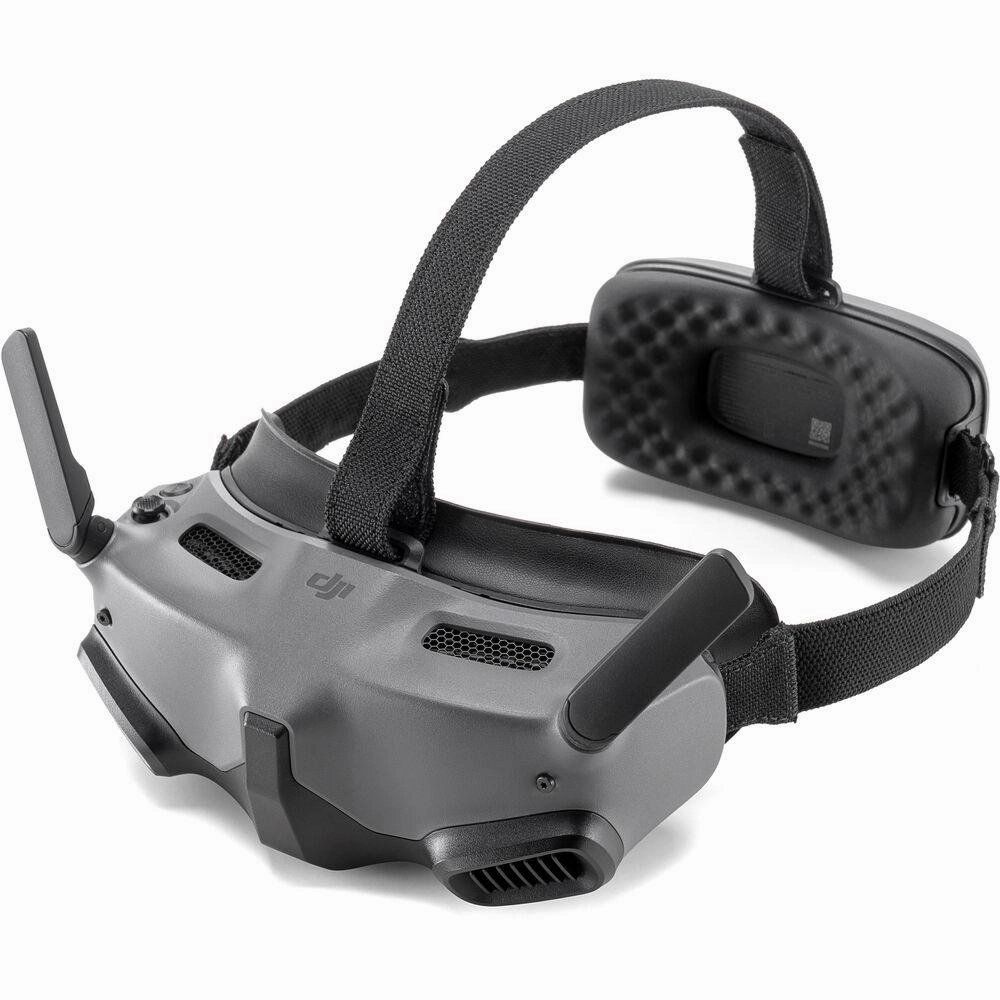

DJI Goggles Integra combines headband and battery into one, getting rid of pesky cables. Light and compact, the goggles weigh about 410 g with foldable antennas. And with a two-hour battery life, you can fly comfortably and worry-free for extended flights.

HD Display, Stunning Colors
DJI Goggles Integra has two 1080p Micro-OLED screens to deliver true-to-life colors and highlight-shadow details. Enjoy brilliant views with a screen brightness of up to 700 nits and a refresh rate of up to 100 Hz. DJI Goggles Integra is also TV Rheinland Low Blue Light Certified, so you can rest assured your flight is easy on the eyes.

Ultra-Low Latency, Stable Video Transmission
DJI Goggles Integra adopts DJI O3 video transmission, boasting latency as low as 30 ms. The goggles automatically switch frequency bands and possess strong anti-interference capabilities so that you can soar uninterrupted.

Share the Sky
Connect to the DJI Fly app and display a real-time camera view to your goggles and smartphone so you can share your view.

DJI O3 Video Transmission
The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a strong and stable signalexperience flight without interruption.

DJIGogglesIntegra Specs

General

CompatibilityDJIAvata/O3 Air Unit/Digital FPV System
DisplayQuantity: 2
Type: Micro OLED
Screen Size: 0.49" / 12.5 mm (Each)
Resolution: 1920 x 1080 (Each)
Refresh Rate: Up to 100 Hz
FOV: 44 (Each)
Brightness: 700 cd/m
IPD Coverage56 to 72 mm
Video Recording FormatMOV
Playback FormatsVideo: MP4, MOV (H.264/H.265)
Audio: AAC, PCM
Memory CardmicroSD (Up to 512 GB)

Inputs / Outputs

USB I/O1 xUSB-C Female Input/Output

Wireless

Mobile App CompatibleYes: Android & iOS
App Name: DJI Fly
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Video TransmissionOperating Frequency: 2.4000 to 2.4835 GHz and 5.725 to 5.850 GHz
Transmitter Power (2.4 GHz) (EIRP): < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC)
Transmitter Power (5.8 GHz) (EIRP): < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Transmission Latency (1080p/100): 30 ms
Transmission Latency (1080p/60): 40 ms
Distance (Avata): 7.5 Miles / 12 km (FCC) or 3.7 Miles / 6 km (CE/SRRC/MIC)
Distance (O3 Air Unit): 6.2 Miles / 10 km (FCC), 3.7 Miles / 6 km (SRRC), or 1.2 Miles / 2 km (CE)
Max Video Bitrate: 50 Mb/s

Power

Power SourceBattery (Built-In)
Battery Type1 xInternal Rechargeable Lithium-Ion
DC Input Power5.6 to 8.4 VDC
Capacity2450 mAh
Operating TimeUp to 2 Hours
Chemical FormulaLINIMnCoO2
Energy17.64 Wh
Maximum Charging Power15 W (Charging When Powered Off)
Charging Temperature41 to 113F / 5 to 45C

Environmental

Operating Temperature14 to 104F / -10 to 40C
