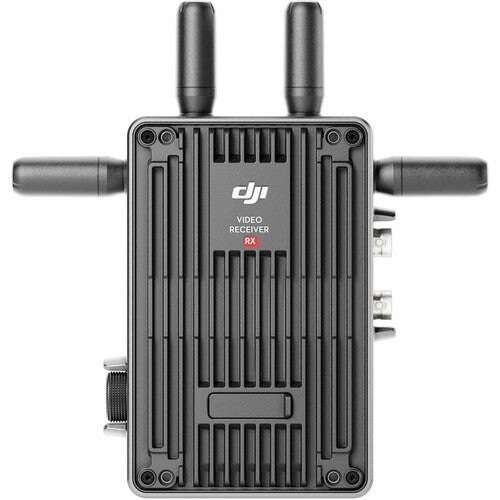

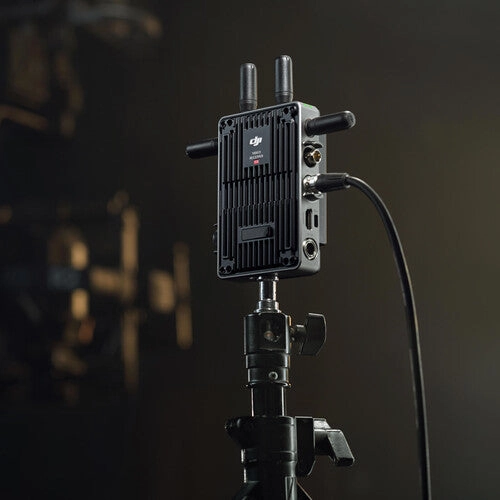

DJI Video Receiver
The DJI Video Receiver CP.RN.00000319.01 is designed to receive high-definition video transmissions from compatible DJI transmitters.
Long-Distance Transmission: Capable of receiving video signals from up to 3 miles (approximately 5 kilometers) line-of-sight, making it suitable for expansive shooting environments. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s and live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.
Secure Communication: Employs AES 256-bit encryption to ensure the security of transmitted video, protecting content from unauthorized access.
Flexible Output Options: Equipped with HDMI and 3G-SDI outputs, allowing for seamless integration with various monitoring setups.
Voice Call Function: Supports talkback communication between the transmitter and receiver using USB-C ports and compatible microphones, facilitating real-time coordination on set.
Power Versatility: It can be powered using optional L-series or WB37 batteries or through its DC power input, providing flexibility in different shooting scenarios.
Highlights:
Receive 1080p60 Video over 3 Miles LoS
O3 Pro Video Transmission Technology
Receive Video from DJI Transmitter
HDMI and 3G-SDI Output
AES 256-Bit Encryption
Power via L-Series or WB37 Battery
SPECIFICATIONS:
Video I/O: 1x BNC (3G-SDI) Output; 1x HDMI 1.4 Output
Embedded Audio: HDMI/SDI
Latency: 70 ms
Video Format: HDMI/SDI (10-Bit 4:2:2 YCC); 1080p: 60/59.94/50/30/25/24/23.98; 1080i: 60/59.94/50; 720p: 60/59.94/50
Battery: 1x L-Series or DJI WB37 Mount on Included, Interchangeable Plates
Power Consumption: 9 W
Antenna I/O: 2x RP-SMA Female
Video I/O: 1x BNC (3G-SDI) Output; 1x HDMI 1.4 Output
Embedded Audio: HDMI/SDI
Audio I/O: No
Power I/O: 1x USB-C Input; 1x Barrel Input
Encryption: Yes, 256-bit AES
Wireless Range: 3.7 Miles / 6 km (Line-of-Sight)
# of Channels: 23
Channel Bandwidth: 40 MHz
Non-DFS Frequencies: 2.4 to 2.48 GHz; 5.15 to 5.25 GHz; 5.72 to 5.85 GHz
DFS Frequencies: 5.25 to 5.35 GHz; 5.47 to 5.6 GHz; 5.65 to 5.72 GHz
Latency: 70 ms
Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth: No
Mobile App Compatible: No
Cellular Support: No
Audio Format: 16-bit 48 kHz PCM Audio
Wireless Video Compression: Compressed
Timecode Support: No
Input Power: 6 to 18 VDC
Operating Conditions: 22 to 77F / -10 to 45C
Dimensions: 5 x 3.4 x 1" / 127 x 87 x 26 mm
Weight: 12.35 oz / 350.00 g
WHATS IN THE BOX:
1 x DJI Wireless Transmission Receiver
1 x L-Series/NP-F Battery Adapter
1 x WB37 Battery Adapter
2 x Antenna
1 x USB-C Cable
1 x SDI Cable
1 x D-Tap Power Cable
1 x Installation Toolkit
