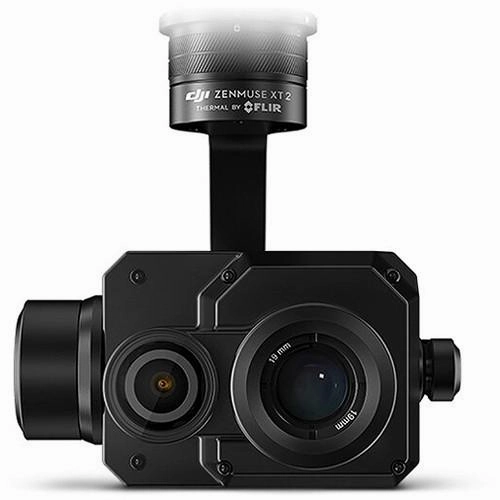

FLIR Systems Zenmuse XT2 fpv drone

FLIR Systems Zenmuse XT2

$ 53.71

$ 214.85

Unavailable
FLIR Systems Zenmuse XT2 fpv drone

FLIR Systems Zenmuse XT2

$ 53.71

$ 214.85

Variants:
  • Flir FZXT2A13SR 640x512 13mm 9Hz
  • FLIR FZXT2A25FR 640x512 25mm 30Hz
  • FLIR FZXT2A19SR 640x512 19mm 9Hz
  • FLIR FZXT2A25SR 640x512 25mm 9Hz
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

  • FLIR Systems Zenmuse XT2

    FLIR CAMERAS ARE MADE TO ORDER AND CANNOT BE CANCELLED ONCE PROCESSED, UNLESS DAMAGED OR DEFECTIVE ON ARRIVAL.FOR INQUIRIES EMAIL [email protected].

    The Zenmuse XT2 integrates a high-resolution FLIR thermal sensor and a 4K visual camera with DJIs leading stabilization and machine intelligence technology to quickly transform aerial data into powerful insights. The advanced thermal sensor provides high sensitivity imaging for infrastructure monitoring, energy inspections, firefighting, search and rescue missions, and more. With a fully-integrated dual payload, professionals can capture thermal and color visible data in a single flight, saving time, money, and lives.

    The three-axis gimbalised camera has a 20x thermal zoom to provide acute deep analysis of a particular spot if needed and grasp clear datathrough the two 640 512 non-radiometric Boson cameras and record clear imagery with a full-featured VGA thermal camera module.

    Main Features

    HIGH-RESOLUTION THERMAL IMAGING
    The FLIR radiometric thermal sensor and 4K visual camera integrate seamlessly with DJIs powerful enterprise drone platforms to increase efficiency.

    IP44 RATED RUGGED DESIGN
    IP44 rated, combining the XT2s weather-resistant dual sensor with the M200 allows pilots to fly in rain, snow, smoke, and fog.

    FLIR MSX MULTI-SPECTRAL DYNAMIC IMAGING
    MSX intelligent image processing embosses visible image edge details onto thermal images for enhanced perspective and safety.

    MISSION READY ALWAYS!

    Easy to inspect, search, or explore from the air, Zenmuse XT2 is ideal for firefighting, SAR, infrastructure thermal imaging and more.



    • 1 xFLIR Systems Zenmuse XT2
  • Exportable Frame Rates
    <9 Hz

    Pixel Pitch
    17 micrometer

    Scene Range (high gain)
    336x256: -25oto 100oC

    Scene Range (low gain)
    -40oto 550oC

    Spectral Band
    7.5 - 13.5 micrometer

    Thermal Imager
    Uncooled VOx Microbolometer

    Supported File System
    FAT 32 (is less than or equal to 32GB), exFAT (is more than or equal to 32GB)

    ELECTRICAL and MECHANICAL

    File Storage
    microSD card, The SD card, which is located near the lens, is used to store TIFF Sequence and SEQ infrared RAW video only. The other format footage will be stored in the other SD card.

    ENVIRONMENTAL

    Storage
    microSD card. Max capacity: 128 GB. UHS-3 required. Recommended model: Sandisk Extreme 16/32 GB UHS-3 microSDHC Sandisk Extreme 64/128 GB UHS-3 microSDXC

    IMAGING and OPTICAL

    Angular Vibration Range
    /- 0.01o

    CMOS
    CMOS, 1/1.7", Resolution: 12 M

    Color and Monochrome Palettes (LUTs)
    Yes

    Digital Detail Enhancement
    Yes

    Digital Zoom
    Thermal Camera: 336x256: 1x, 2x, 4x, Visual Camera: 1x, 2x, 4x, 8x

    FPA and Digital Video Display Formats
    Depends on the variant

    Full Frame Rate
    Depends on the variant

    Image Optimization
    Yes

    Lens
    Prime lens, Focus at 5 mm, FOV 90ox 65oFocus at 8 mm, FOV 57.12ox 42.44

    Mount
    Detachable

    Polarity Control (black hot and white hot)
    Yes

    Sensitivity (NEdT)
    <50 mk at f/1.0

    Still Photography Modes
    Single Shot Burst Shooting (3/5 frames) Interval (2/3/4/7/10/15/20/30 sec)

    Video Format
    Thermal: 8 bit: MOV, MP4 14 bit: TIFF Sequence, SEQ Visible: MOV, MP4 It is recommended to use ImageJ to play the TIFF Sequence video and Flir Tools to play SEQ video

    Photo Format
    Thermal Camera: JPEG, TIFF, R-JPEG Visible Camera: JPEG

    Working Modes
    Capture, Record, Playback

    Video Subtitle
    Support

    PAN-TILT

    Controllable Range
    Tilt: 30oto -90o, Pan: /-320o

    Mechanical Range
    Tilt: 45oto -130o, Pan: /-330o, Roll: -90oto 60o

    PERFORMANCE

    Max controllable speed
    Tilt: 90o/s,Pan: 90o/s

    VIDEO and RECORDING

    Video Resolution
    4K Ultra HD: 3840x2160 29.97p FHD: 1920x1080 29.97p

    Item Dimension (L inchxW inchxH inch)
    10 x 8 x 7

    Weight
    5.00 lb

    Warranty Information
    1 Year
