This custom-built gaming PC is designed for gamers and creators who require powerful performance and efficient cooling. Featuring the Intel Core i5-13400F processor and the RTX 4060 GPU, this build delivers smooth gaming, content creation, and multitasking. The setup includes high-speed DDR4 memory, advanced cooling, and spacious storage, all housed in a stylish mid-tower case with tempered glass panels.

Key Components:

Processor:

• Model: Intel Core i5-13400F
• Generation: 13th Gen
• Base Clock: 2.5 GHz (Boost up to 4.6 GHz)
• Cores/Threads: 10 Cores / 16 Threads (6 Performance 4 Efficient)
• Architecture: Raptor Lake
• Socket: LGA 1700
• Performance: Ideal for gaming, content creation, and multitasking
• Graphics: No integrated graphics (requires a dedicated GPU)

Graphics Card:

• Model: Zotac Gaming GeForce RTX 4060 8GB Twin Edge
• Memory: 8GB GDDR6
• Bus Width: 128-bit
• Ray Tracing: Real-time ray tracing for enhanced graphics
• DLSS Support: Yes (DLSS 3.0)
• Cooling: Dual Fan for optimal temperature management
• Ideal for: High-frame-rate 1080p and 1440p gaming
• Ports: HDMI 2.1, DisplayPort 1.4a

Motherboard:

• Model: MSI PRO H610M-S DDR4
• Chipset: Intel H610
• Form Factor: Micro ATX
• Memory Support: 2x DDR4 (up to 64GB)
• Expansion Slots: 1x M.2, 4x SATA 6Gb/s
• Connectivity: USB 3.2, Gigabit Ethernet
• Graphics Output: HDMI, VGA
• Special Features: Stable power delivery and efficient layout

Memory (RAM):

• Model: TeamGroup T-Force Delta RGB
• Capacity: 16GB (2x8GB)
• Type: DDR4
• Speed: 3600MHz
• Latency: CL18
• RGB Lighting: Yes
• Color: Black
• Purpose: Smooth multitasking and enhanced gaming performance

Storage:

• Model: WD Blue SN5000 NVME SSD
• Capacity: 1TB
• Interface: PCIe 4.0
• Form Factor: M.2 2280
• Read Speed: Up to 2400 MB/s
• Write Speed: Up to 1750 MB/s
• Usage: Fast boot, quick file transfers, and game loading

Cooling System:

• Model: Aigo ICE200 Pro CPU Cooler
• Type: Air Cooling
• Fan Size: 120mm
• Heat Pipes: 4 Direct Contact
• Lighting: RGB
• Cooling Efficiency: Keeps the CPU at optimal temperatures during heavy usage

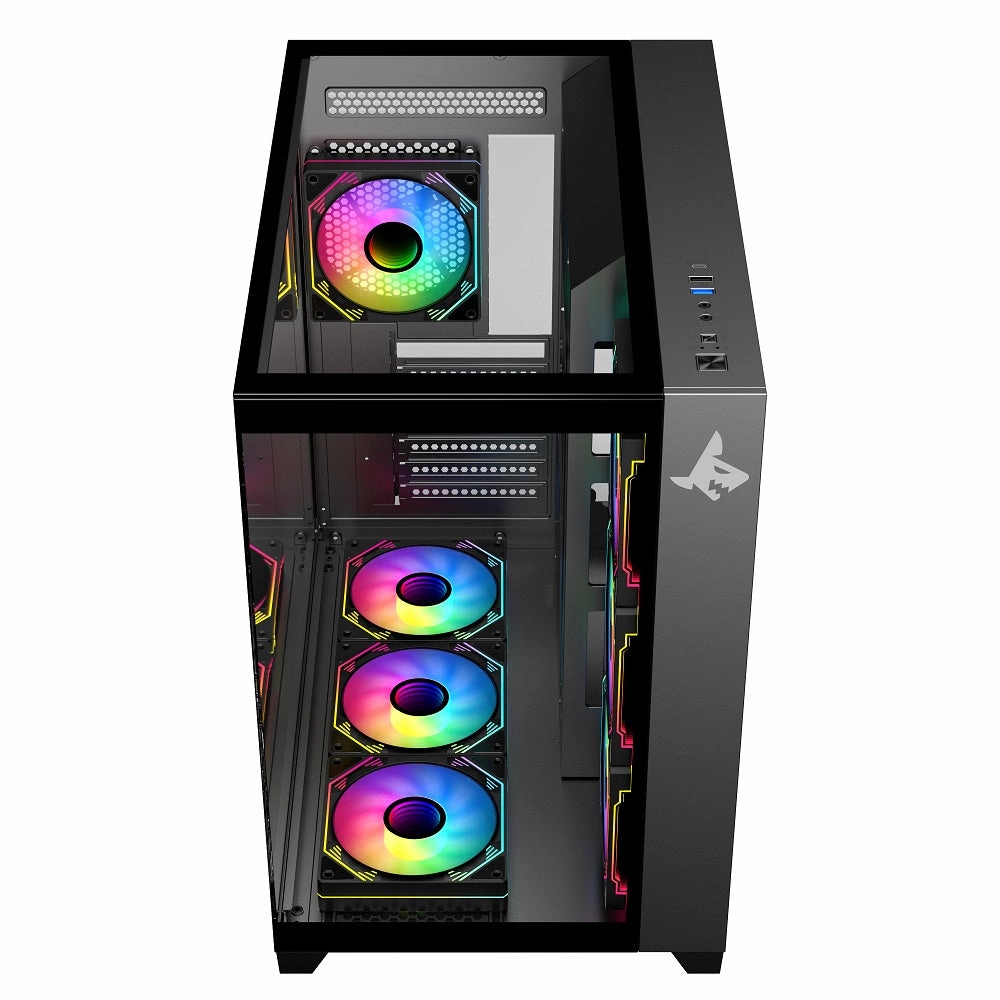

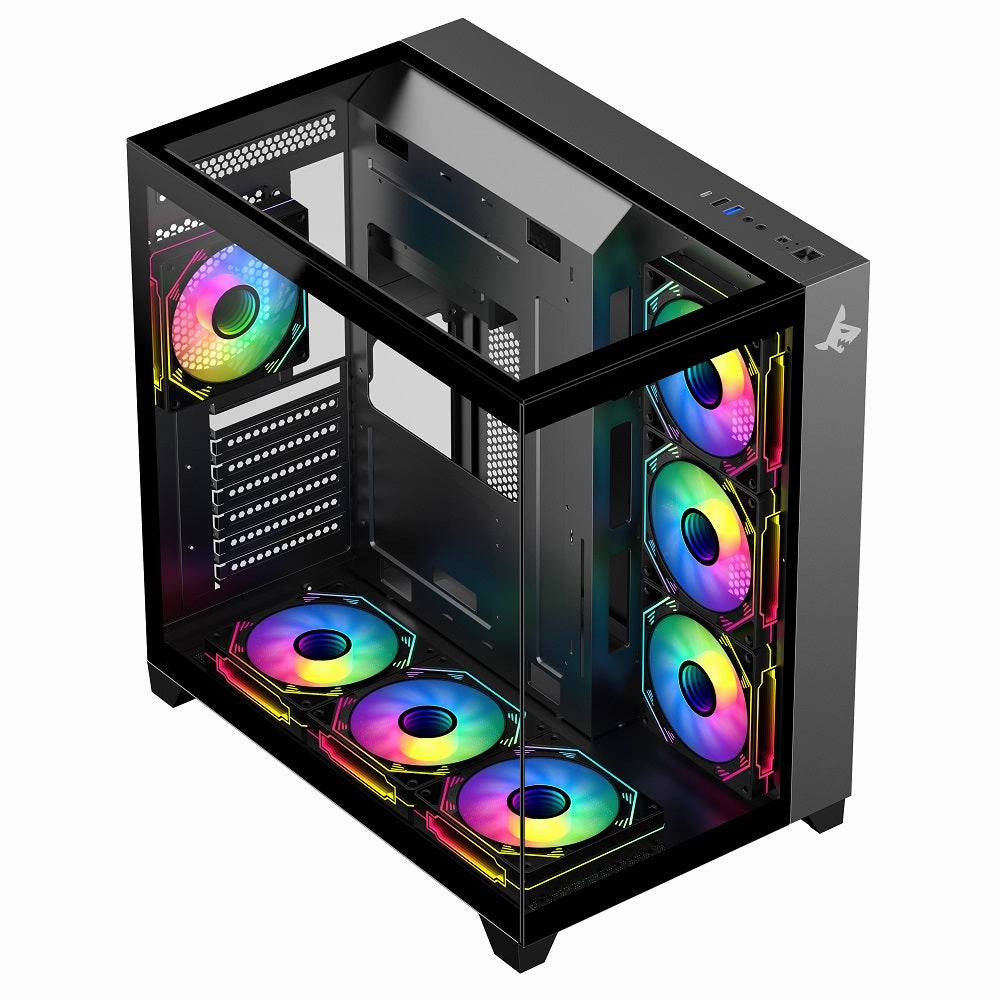

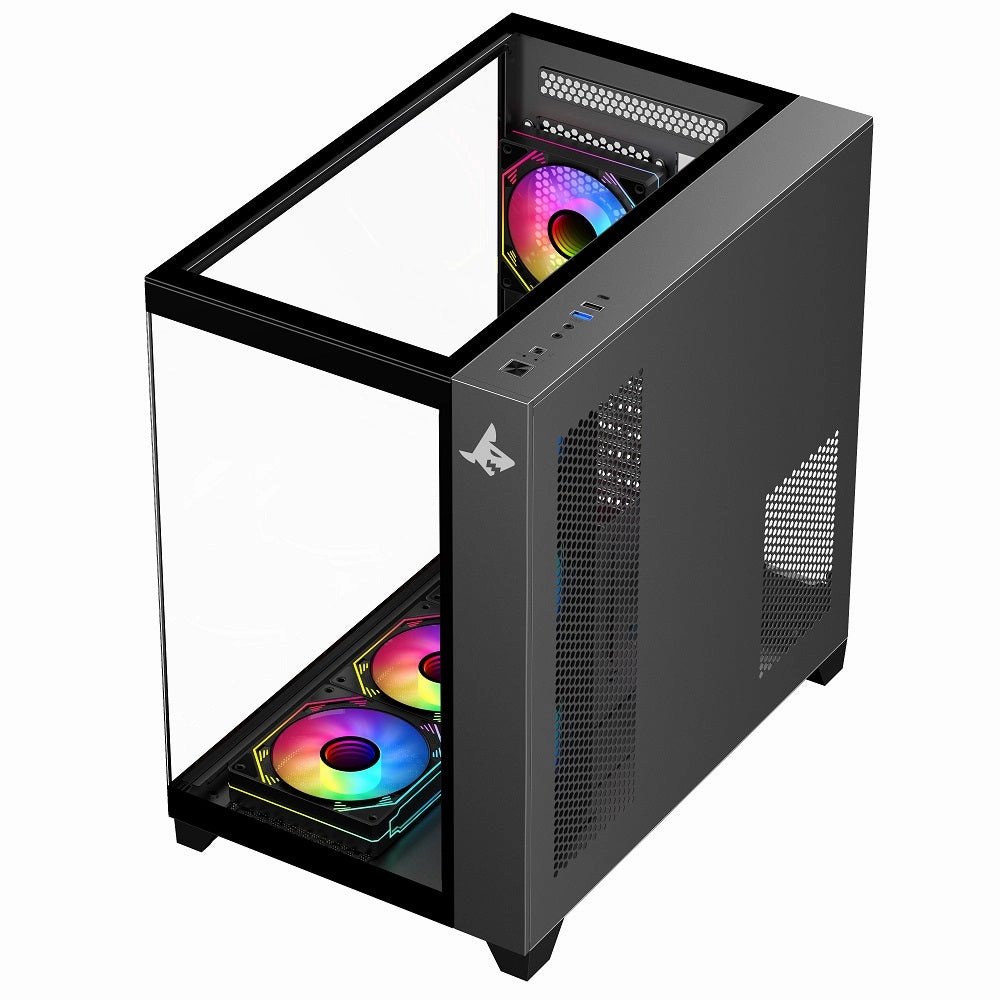

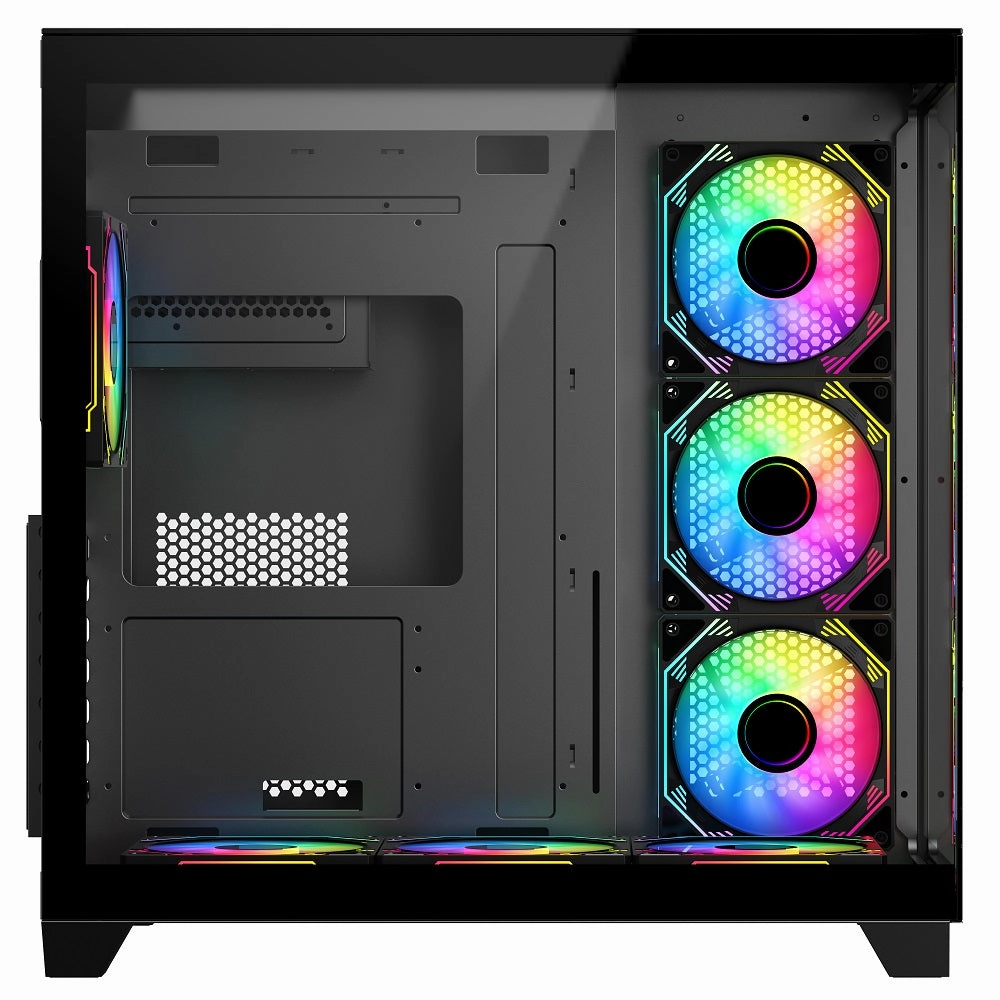

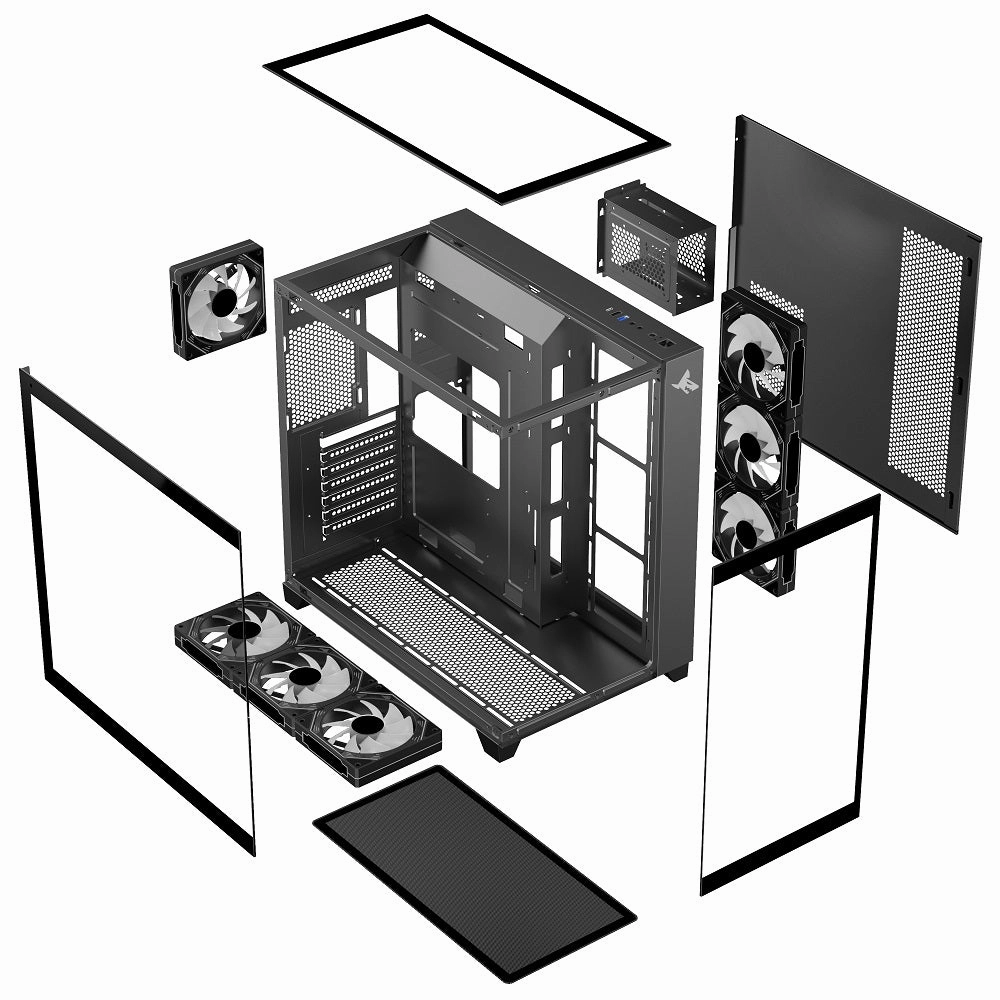

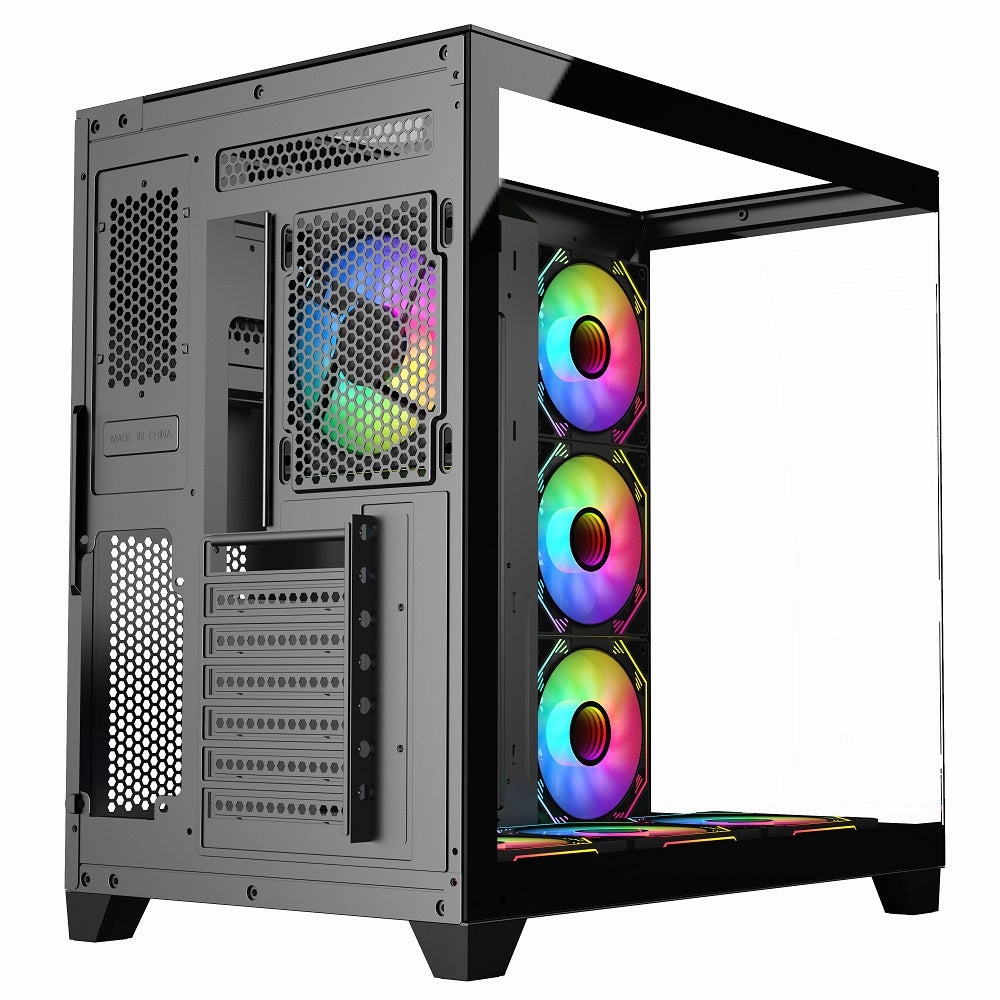

PC Case:

• Model: Sharx Profin (GX700-B) Mid Tower
• Form Factor: ATX Mid Tower
• Cooling: 7 ARGB Fans pre-installed
• Front Panel: Tempered Glass
• Side Panel: Left Side Tempered Glass
• I/O Ports: USB 3.0, USB 2.0, HD Audio
• Design: Stylish black finish with ARGB lighting
• Features: Enhanced airflow with mesh front panel and tempered glass for aesthetics

Power Supply:

• Model: Aigo Warrior AK600 Max
• Wattage: 600W
• Certification: 80 Plus
• Cooling: 120mm Silent Fan
• Modularity: Non-Modular
• Reliability: Provides stable power for mid to high-performance builds

Technical Specifications:

• CPU: Intel Core i5-13400F (10 Cores, 2.5 GHz Base)
• GPU: Zotac Gaming GeForce RTX 4060 8GB Twin Edge
• RAM: 16GB DDR4 (2x8GB TeamGroup T-Force Delta RGB, 3600MHz)
• Storage: 1TB WD Blue SN5000 NVMe SSD (PCIe 4.0)
• Cooling: Aigo ICE200 Pro CPU Cooler (120mm, RGB)
• Motherboard: MSI PRO H610M-S DDR4 (Micro ATX)
• Power Supply: 600W Aigo Warrior AK600 Max
• Case: Sharx Profin (GX700-B) Mid Tower (7 ARGB Fans)
• Operating System: Windows 11 Pro (recommended)

Key Features:

High-Performance Gaming:

• Smooth gameplay at 1080p and 1440p
• Real-time ray tracing for enhanced visual effects
• Efficient multitasking with a high-core processor
• Reliable performance in both gaming and content creation
