This custom-built high-end gaming PC is designed for enthusiasts who demand top-tier performance and exceptional cooling. Built around the powerful AMD Ryzen 9 9950X3D processor and the MSI GeForce RTX 5090 SUPRIM SOC graphics card, this system is optimized for 4K gaming, professional content creation, and intensive multitasking.

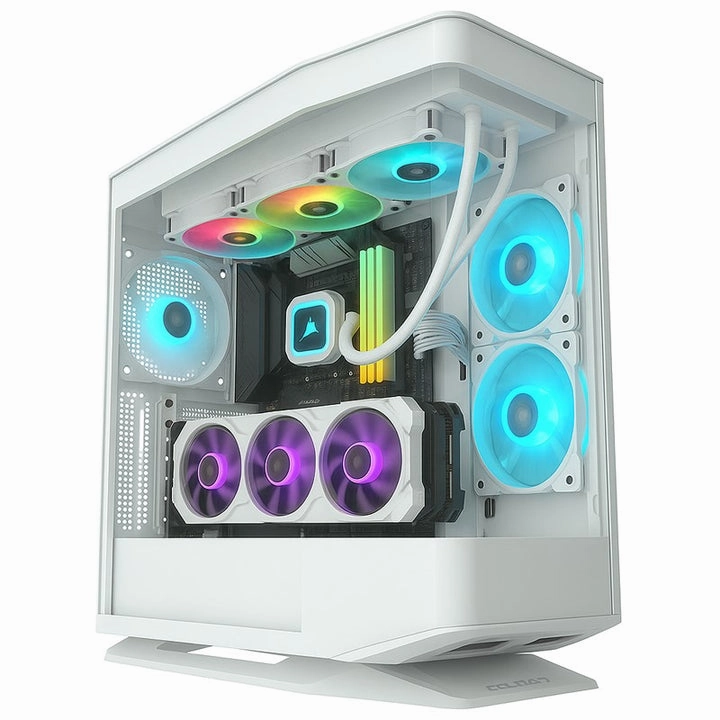

Housed in the stylish Cougar FV270 RGB E-ATX Mid Tower case, it features vibrant ARGB lighting and a clean white aesthetic. The advanced cooling system from LIAN LI ensures optimal thermal performance, while the Samsung 990 EVO Plus SSD provides ultra-fast storage.
Key Components
1. Processor:
Model: AMD Ryzen 9 9950X3D
Cores/Threads: 16 Cores / 32 Threads
Base Clock: 4.4 GHz
Max Boost Clock: Up to 5.8 GHz
Cache: 128MB L3
Socket: AM5
Features: AMD 3D V-Cache technology for gaming performance
2. Motherboard:
Model: MSI MPG X870E EDGE TI WIFI
Form Factor: ATX
Chipset: AMD X870
Memory Support: DDR5, up to 128GB
Expansion Slots: PCIe 5.0 x16
Connectivity:
Wi-Fi 6E
Bluetooth 5.3
2.5G LAN
Storage:
4 x M.2 PCIe Gen 4x4
6 x SATA III
Ports: USB 3.2 Gen 2x2 Type-C, HDMI, DisplayPort
3. Memory (RAM):
- Model:Corsair Dominator Titanium RGB 64GB (2x32GB) DDR5 DRAM 6600MTS
- Capacity: 64GB (2 x 32GB modules)
- Speed: 6600MT/s (PC5-52800)
- Type: DDR5 SDRAM
- CAS Latency: CL32 (32-39-39-76)
- Voltage: 1.40V (tested), 1.10V (SPD)
- Form Factor: 288-pin DIMM
- Performance Profile: Intel XMP 3.0
- 4. Storage:
Model: Samsung 990 Pro
Capacity: 4TB
Type: NVMe M.2 2280
Interface: PCIe Gen 4.0 x4, NVMe 2.0
Read/Write Speed: Up to 7,450/6,900 MB/s
- 5. Graphics Card:
Model: MSI GeForce RTX 5090 Gaming Tryo OC
Memory: 32GB GDDR7
Core Clock: Factory Overclocked
Cooling: MSI TRI FROZR 4 triple-fan design
Outputs: 3 x DisplayPort 2.1, 1 x HDMI 2.1a
Ray Tracing & AI Enhancements: 4th Gen RT Cores for real-time ray tracing
- 6. Power Supply:
Model: Asus ROG Strix 1200W Platinum
Efficiency: 80 Plus Platinum
Modularity: Fully Modular
Form Factor: ATX 3.1
Cooling: Dual-Ball Bearing Fan
Protection: OVP, OPP, SCP, OTP, UVP
- 7. PC Case:

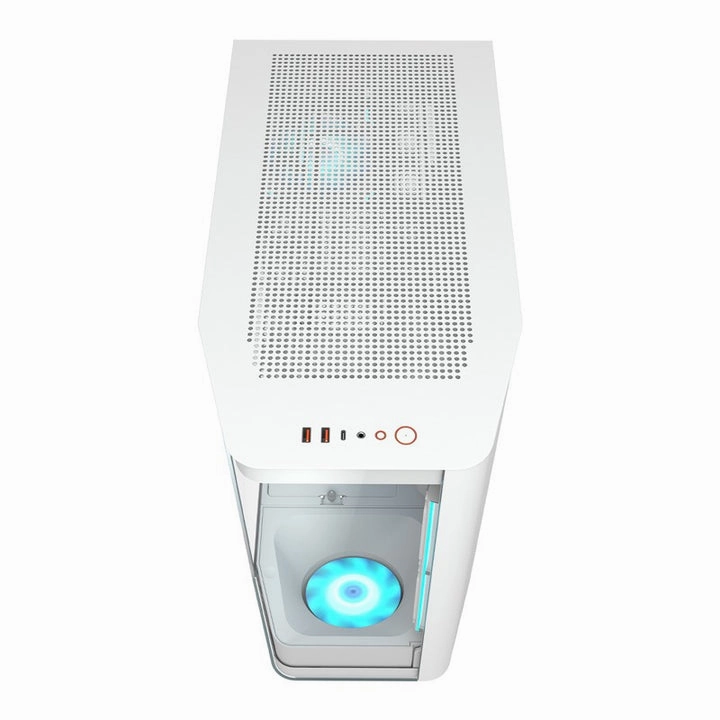

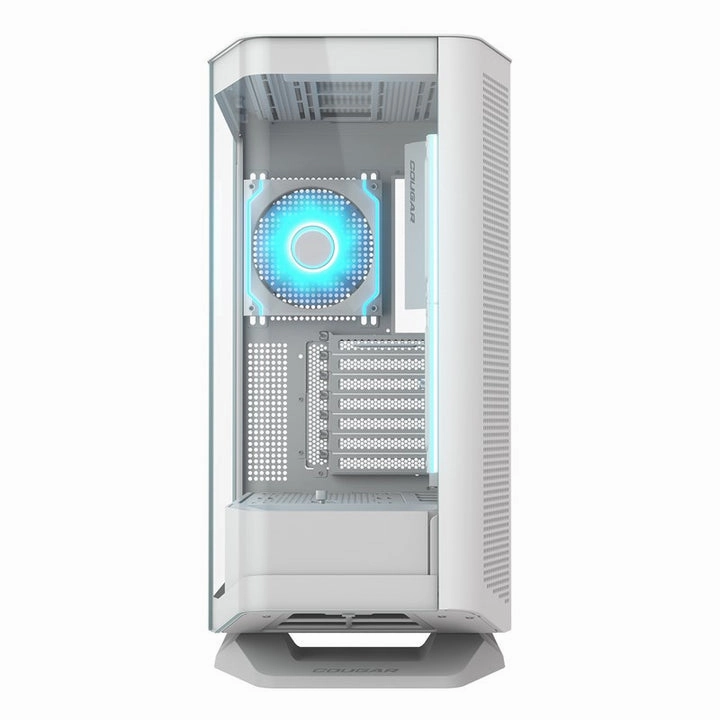

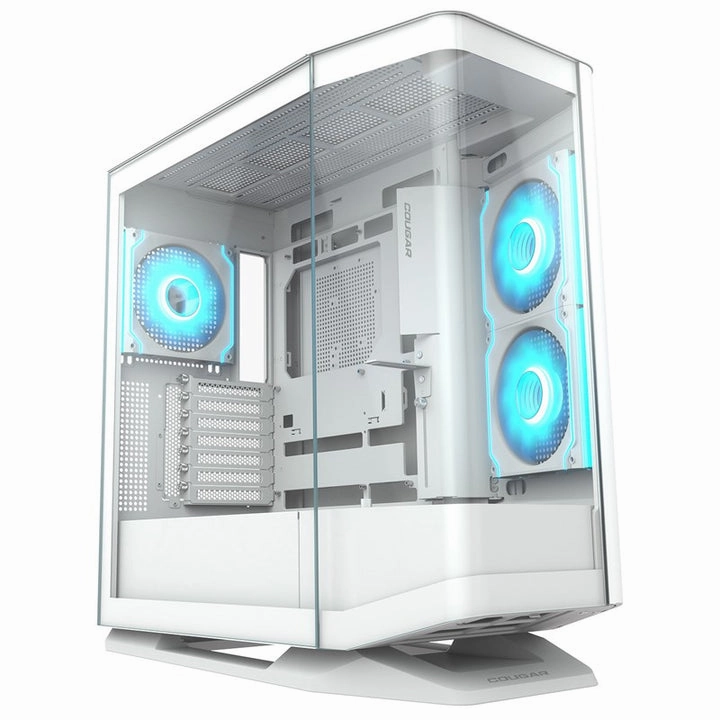

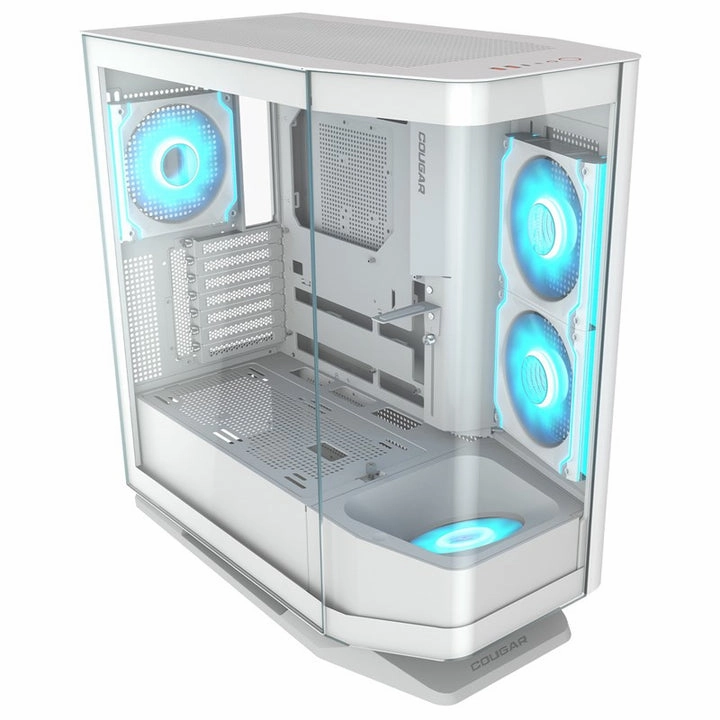

Model: Cougar FV270 RGB E-ATX Mid Tower
Color: White
Form Factor: E-ATX, ATX, Micro-ATX
Included Fans: 4 x ARGB 120mm
Side Panel: Tempered Glass
Front I/O: USB 3.0, USB 2.0, HD Audio
Features: High airflow design, integrated ARGB controller
- 8. Cooling System:
Model: LIAN LI Hydro-Shift LCD 360mm RGB Liquid CPU Cooler
Radiator: 360mm
Fans: 3 x 120mm ARGB
LCD Display: Customizable stats and visuals
Color: White
Compatibility: AM5 socket
- 9. Operating System:
OS: Microsoft Windows 11 Professional 64-bit
Features: Enhanced security, professional tools, gaming optimizations
- Performance Highlights:
4K Ultra Gaming: RTX 5090 provides smooth frame rates in modern AAA titles.
Multitasking Master: 16-core AMD CPU with DDR5 ensures seamless content creation.
Advanced Cooling: Liquid cooling with high airflow keeps temperatures low.
Storage Efficiency: 4TB NVMe ensures fast boot times and quick data access.
Aesthetic Appeal: White-themed build with vibrant RGB accents.
- User Benefits:
Maximized Gaming Performance: Play at ultra settings without compromise.
Versatile for Professional Tasks: Handle video editing, 3D rendering, and programming.
Future-Proof Setup: Supports latest technologies like DDR5 and PCIe 5.0.
Premium Build Quality: High-end components from top brands.
- BR93D-5090
