When it comes to catching more fish, they say, Talk to a local. With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, youll know the water even better than they do.
- The bright 6, 7 or 9 touchscreen display with keyed-assist is user-friendly and easy to read.
- Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVand SideVsonars.
- Improved detail? Check. Distinguished targets? Yep. Thats the beauty of high-contrast vivid color palettes.
- If youre running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.
- Want our best in mapping? Who doesnt? Select chartplotters come with Garmin Navionics mapping.
What's in the box
With Transducer
- ECHOMAP UHD2 (device varies depending on selection)
- GT56-TM transducer
- Powercable
- Tilt mount with quick-release cradle
- Protective cover
- Hardware
- Documentation
Without Transducer
- ECHOMAP UHD2 (device will vary depending on selection)
- 12-pin sounder to 8-pin transducer cable
- Power cable
- Tilt mount with quick-release cradle
- Protective cover
- Hardware
- Documentation
SONAR SUPPORT

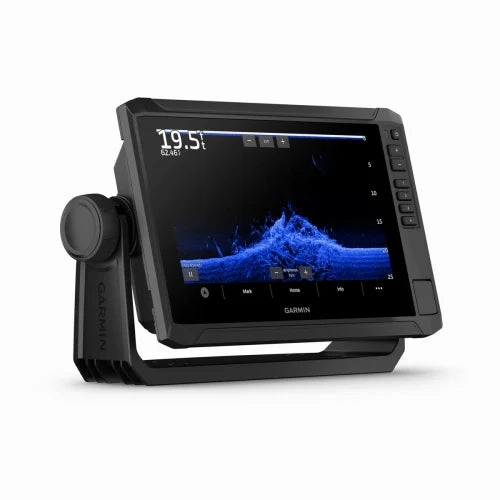

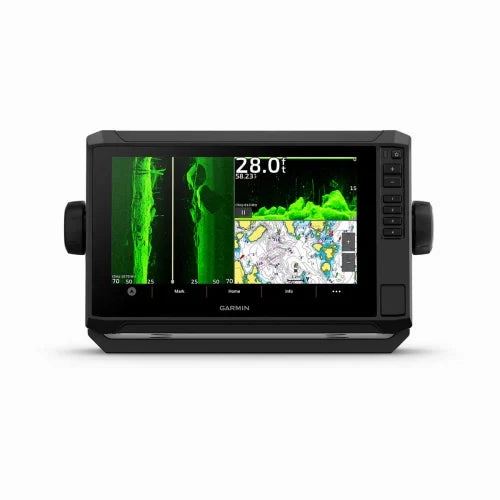

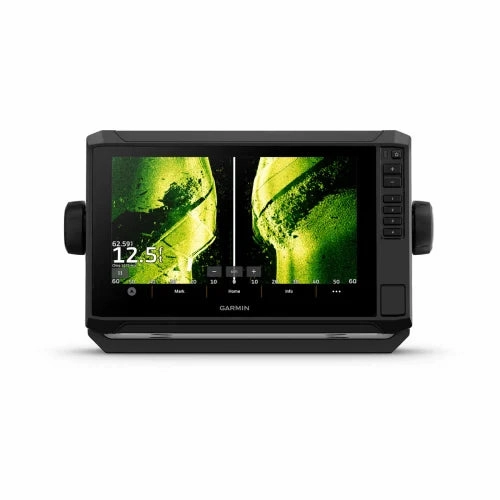

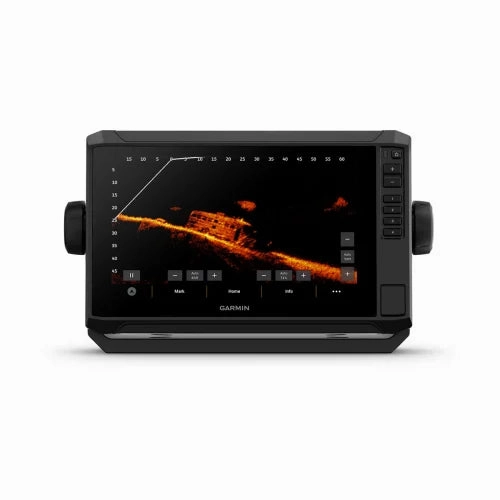

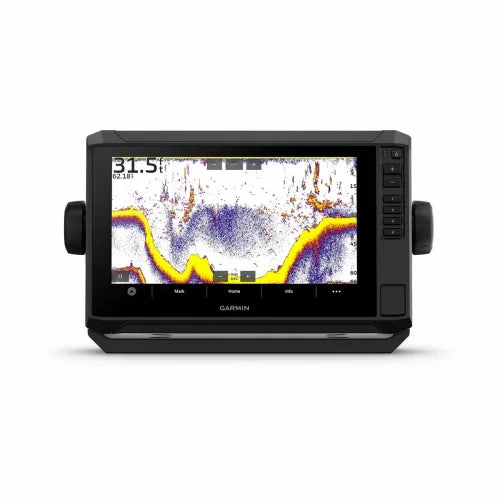

With crisp, clear traditional sonar and brilliant ClearV and SideV scanning sonars, the fish will have nowhere to hide. Your ECHOMAP UHD2 also supports LiveScopelive-scanning sonar.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
BUNDLE YOUR TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers. The 6 and 7 chartplotters come bundled with a while the 9 chartplotter comes with a.
PRELOADED CHARTS
Youve never seen Garmin cartography like this before. Select chartplotters come with built-incartography which includes a 1-year subscription for daily updates, depth range shading and more.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information such as sonar1, waypoints and routes with them.
ACTIVECAPTAIN APP
Built-in Wi-Ficonnectivity pairs with the free all-in-oneon your compatible smartphone for access to the OneChartfeature, smart notifications, software updates, Garmin Quickdraw Community data and more2.
AUTO GUIDANCE TECHNOLOGY
Chartplotters with built-in Garmin Navionics charts include downloadable Auto Guidance technology3with the ActiveCaptain app.
TROLL WITH FORCE
Your ECHOMAP UHD2 wirelessly connects to yourto create and follow routes, navigate to waypoints, control speed, check battery life and more.
MULTI-BAND GPS
Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS.
General | |
| DIMENSION | 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm) |
|---|---|
| TOUCHSCREEN | |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 7.8" x 4.5", 9.0" (19.8 x 11.5 cm, 22.9 cm) |
| DISPLAY RESOLUTION | 1024 x 600 pixels |
| DISPLAY TYPE | WSVGA, TN |
| WEIGHT | 2.9 lbs (1.3 kg) |
IPX7 | |
| MOUNTING OPTIONS | Bail or flush |
Maps & Memory | |
| ACCEPTS DATA CARDS | 1 microSD card; 32 GB maximum size |
|---|---|
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors | |
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER | 10Hz |
| NMEA 2000 COMPATIBLE | |
| GPS | |
| GLONASS | |
| GALILEO | |
| BEIDOU | |
| SUPPORTS WAAS | |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | |
Built-in Maps | |
| BUILT-IN AUTO GUIDANCE | yes (downloadable via ActiveCaptain app) |
|---|---|
| GARMIN NAVIONICS INLAND & COASTAL | yes (see Additional) |
| GARMIN NAVIONICS (COASTAL) | yes (see Additional) |
| GARMIN NAVIONICS (INLAND) | yes (see Additional) |
| TIDE TABLES | yes (see Additional) |
Optional Map Support | |
| GARMIN NAVIONICS | |
|---|---|
| GARMIN NAVIONICS VISION | |
| TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter Features | |
| AIS | |
|---|---|
| DSC | |
| SUPPORTS FUSION-LINK COMPATIBLE RADIOS | |
| ACTIVECAPTAIN COMPATIBLE | |
| SAILING FEATURES | |
Sonar Features & Specifications | |
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 500 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| CLEARV | built-in 260/455/800/1000/1200 kHz |
| SIDEV | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX SONAR | |
| LIVESCOPE | |
Connections | |
| NMEA 2000 PORTS | |
|---|---|
| GARMIN MARINE NETWORK PORTS | 1 |
| 12-PIN TRANSDUCER PORTS | 1 |
| BLUETOOTH PAIRING | |
| ANT (CONNECTIVITY) | |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | |
Electrical Features | |
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 1.72 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.5 A |
| MAXIMUM POWER USAGE AT 10 VDC | 20.7W |
Additional | |
| ADDITIONAL |
|
|---|---|
