Garmin ECHOMAP UHD 73cv Panoptix PS22 Ice Fishing Bundle
Drill fewer holes and catch more fish when you use Panoptix technology, now included with the Panoptix PS22 ice fishing bundle.
- The sun wont steal your screen. The bright 7 display is sunlight readable.
- Get triple the views with three types of sonar by using the included transducer.
- Only drill where theres fish when you use LiveV Forward sonar.
- Keep an eye on your jig and what it attracts with LiveV Down sonar.
- Its all in the details. And with LakeV g3 maps, youll get them all on 18,000 lakes.
- Everything goes where you go. All accessories fit in the rugged, portable carrying case.
What's in the box
- ECHOMAP UHD 73cv chartplotter
- Panoptix PS22-TR transducer
- Panoptix ice fishing mount
- GT10HN-IF transducer
- Tilt/swivel mount
- Power cable
- Documentation
- Portable fishing kit
- Bag with handle
- Foam float
- Transducer adapter cable
- Cable grommet
- Rechargeable battery
- Battery charger

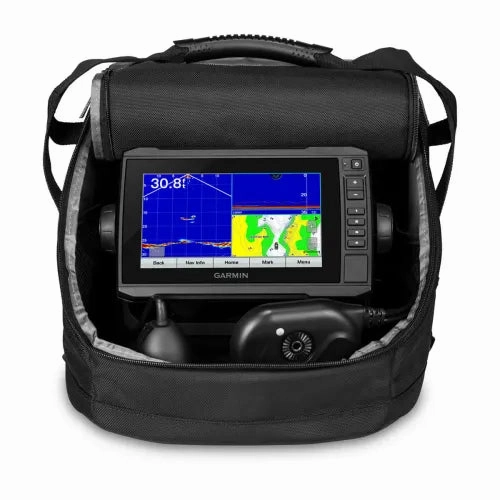

ECHOMAP UHD
Use the 7 ECHOMAP UHD 73cv touchscreen combo with keyed assist for three types of sonar, and go from ice to open water.
PANOPTIX TRANSDUCER
See whats below the surface with the included Panoptix PS22-TR transducer. Use the swivel pole mount to change your angle.
LIVEV FORWARD
LiveV Forward sonar shows up to 100 all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
LIVEV DOWN
LiveV Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.
GARMIN CHIRP SONAR
Garmin CHIRP traditional sonar provides crystal-clear images with remarkable target separation and jig detection.
LAKEV G3 MAPS
The unit comes preloaded withmaps with integrated Navionicsdata, covering more than 18,000 lakes in the U.S.
BUILT-IN FLASHER
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
CUSTOM COMBOS
You can create custom pages that combine sonar, flasher and map on your display.

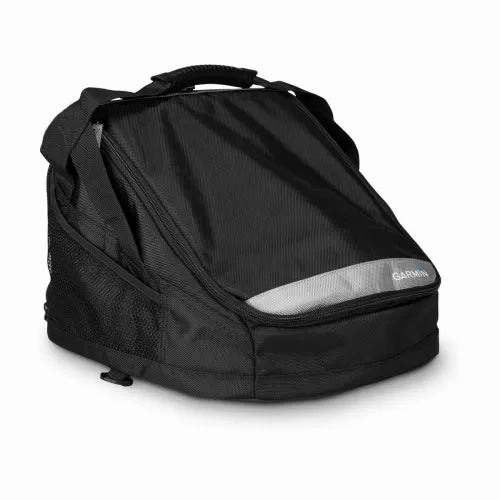

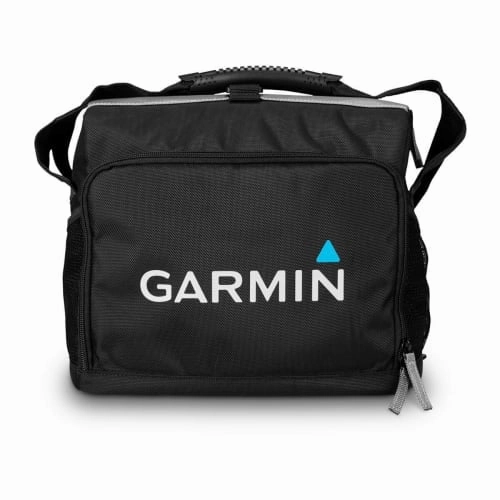

CARRYING CASE
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
General | |
DIMENSION | 12.3" 14.5" 10.0" (31.1 36.7 25.4 cm) |
---|---|
DISPLAY SIZE | 6.0"x3.6"; 7.0" diagonal (15.2 x 9.1 cm; 17.8 cm diagonal) |
DISPLAY RESOLUTION | 800 x 480 pixels |
DISPLAY TYPE | WVGA display |
WEIGHT | 16.7 lbs(7.6 kg) |
IPX7 |
Maps & Memory | |
ACCEPTS DATA CARDS | 1 microSD card; 32 GB maximum card size |
---|---|
WAYPOINTS | 5,000 |
NAVIGATION ROUTES | 100 |
Sensors | |
RECEIVER | 5 Hz |
---|---|
NMEA 2000 COMPATIBLE | |
NMEA 0183 COMPATIBLE |
Connections | |
CONNECTIONS NMEA0183 INPUT PORTS | 1 |
---|---|
GARMIN MARINE NETWORK PORTS | 1 Panoptix port |
Additional | |
ADDITIONAL |
|
---|
