Garmin LiveScope Plus System Live Scanning Sonar

Estimated delivery is 5 8 weeks

With a new innovative down imaging technology, Garmin LivescopeTM has taken the fishing industry by storm.

An underwater sonar that allows you to see images and structures of fish underwater in real-time, the LivescopeTM is a life-changing tool for anglers. Scan surroundings and see images clearly up to 200 feet in any direction with Livescan. The transducer can be installed

One of the most intriguing features of the LivescopeTM is its ability to see your bait and lure in real-time. With just a new transducer, you may upgrade your existing LiveScope System black box (GLSTM 10 sonar module). Vivid color palettes provide the most contrast and clarity in your photographs. A built-in stabilization device maintains the sonar image on your compatible chartplotter constant, even in harsh conditions.

There are three modes to choose from:

Forward Mode: Scout ahead of your boat to keep an eye on what's going on.

Down Mode: See what's going on just beneath your boat in real-time.

Perspective Mode: From your perspective above water, see what's going on beneath the surface.

A game-changing gadget for anglers, sailors, and mariners, the Garmin LivescopeTM is ideal for recreational fishing!

• Better screen clarity, transducer sensitivity, and target separation
• Sharper images and reduced noise signals
• Upgrade current LiveScope system black box with just a transducer
• Forward, Down, and Perspective Modes
• Precise real-time images
• Clear vision
• Image stabilization
• Vivid color palettes

SPECIFICATIONS:

General:

Dimension: GLS 10 sonar black box: 9.7 x 5.9 x 2.6 (24.5 x 14.9 x 6.5 cm);

LVS34 transducer: 6.4 x 3.1 x 1.9 (16.2 x 7.8 x 4.8 cm)

Weight: GLS 10 sonar black box: 4.3 lbs (2.0 kg)

LVS34 transducer: 2.25 lbs (1.02 kg)

Waterproof: IPX7

Transducer Beamwidth: 20 x 135

Transducer Cable Length: 20 ft

Transducer Number of Pins: 21

Temperature Range: GLS 10 Black Box: Operating: -15 C to 70 C

Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C

Sonar Features & Specifications:

Frequency: 530 - 1,100 kHz

Maximum Depth: Down and Forward: 200 (61.0 m)

Sonar Type: Live

Target Separation @100: 14

Perspective Mode Mount Included: Yes

Connections:

Garmin Marine Network Ports: 1 (small connector)

Electrical Features:

Power Input: 10-32 V

Power Usage: 21 W typical, 58 W max

Transmit Power: 500 W

Fuse: 7.5 A

Compass- Safe Distance: 4 (0.1 m)

WHATS IN THE BOX:

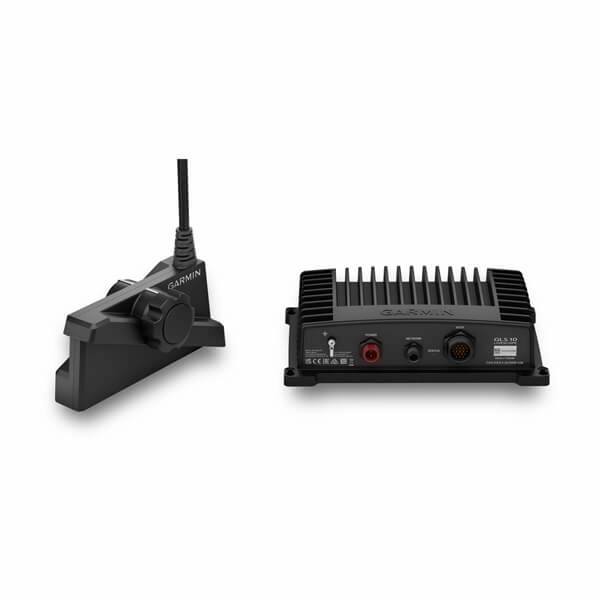

1 x LiveScope GLS 10 Sonar Black Box

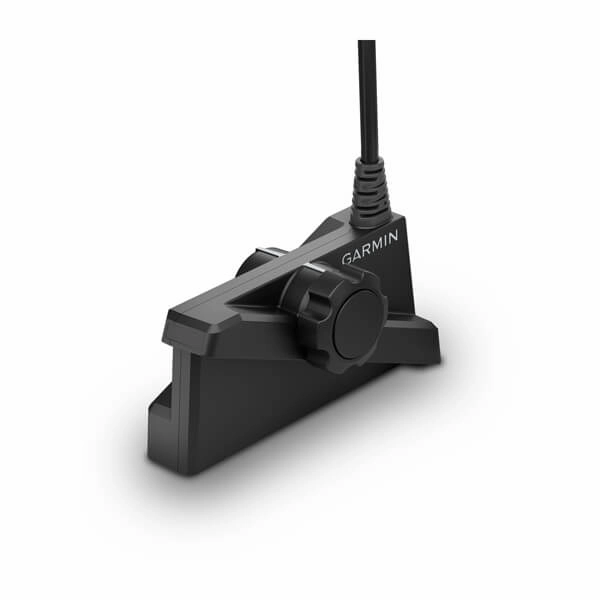

1 x LiveScope Plus LVS34 Transducer

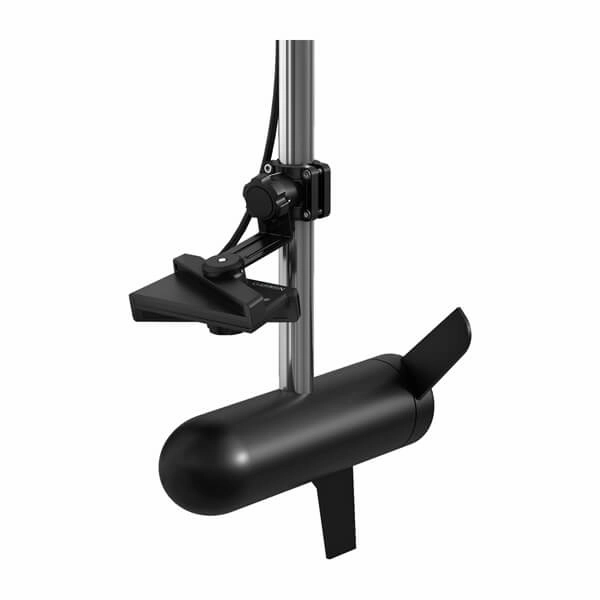

1 x Perspective Mount (LiveScope Plus LVS34 Transducer Only)

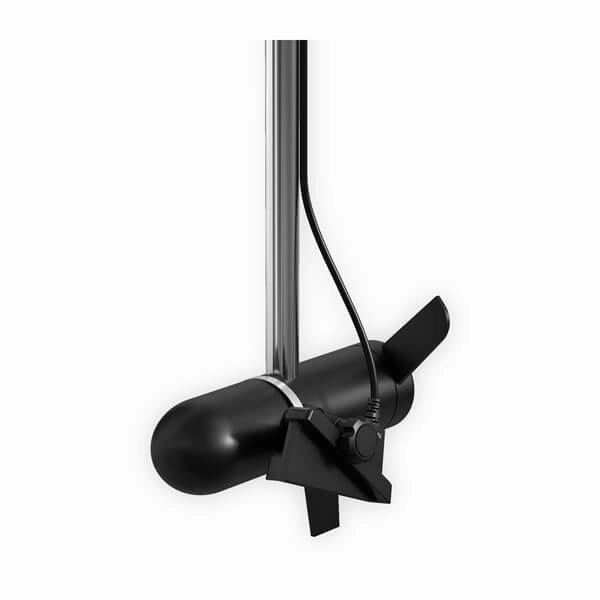

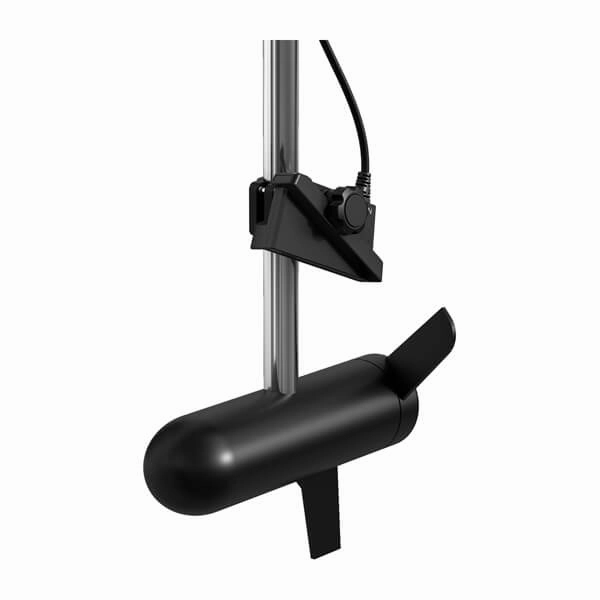

1 x Trolling Motor Barrel Mount

1 x Shaft Mount

1 x Power Cable

1 x 2 meter Garmin Marine Network cable (small connector)

1 x Network Adapter Cable

1 x Documentation
