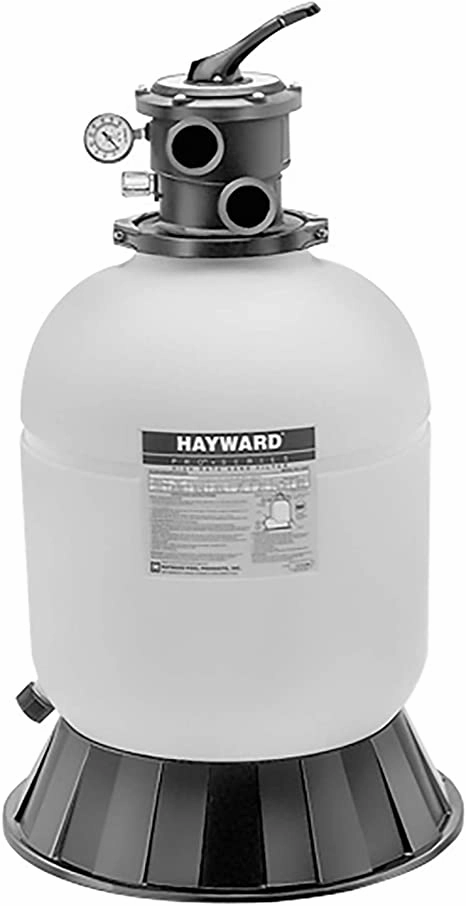

Hayward ProSeries 18" Sand Filter w/ 1.5 HP PowerFlo Matrix Pump

The Hayward Pro-Series 18" sand filters, which provide you quality you can rely on, include the most recent pool filtration technology to guarantee that your pool is functioning at its peak performance. They have a stylish, unitized tank construction and are molded from sturdy, corrosion-proof reinforced thermoplastic for years of trouble-free operation with little maintenance. It uses a self-cleaning lateral system with an umbrella-fold to deliver effective flow and uniformly dispersed water for long-lasting performance. Pro-Series establishes a new benchmark for dependability, value, and performance.

• 7-position VariFlo valve provides maximum flow at lower pressure drop
• Large pressure sand/water drain for rapid winterizing or servicing
• Integral top diffuser ensures even distribution of water over the entire sand bed for maximum use of the filtration area
• Pump-to-filter union connection provides simple installation and winterization

SPECIFICATIONS:

Brand: Hayward

Manufacturer Part Number: W3S180T93S

Series: ProSeries

Filter Control Valve: SP0714T

HP: 1.5

Pump: PowerFlo Matrix

Size: 18 inch

Type: Above Ground Pool Filters

Filter Type: High-rate sand: No. 20 silica sand (.45 mm .55 mm)

Filter Tank: Molded polymeric.

Underdrain: 360 Self-cleaning slotted laterals, Precision installed in ball-joint assembly

Control Valve: Seven-position, Top-mount VariFlo valve with lever-action handle

Valve Fastening: Flange Clamp Design

Pump and Motor: PowerFlo LX or PowerFlo Matrix Series Pump 115 volts.

Mounting Base: Injection-molded Thermoplastic

WHATS IN THE BOX:

1 x 18 Polymeric Tank

1 x 7-Position Filter Control Valve

1 x 1 HP PowerFlo Matrix Pool Pump

1 x One-Piece Deluxe Base

1 x 1 12" Hose Package
