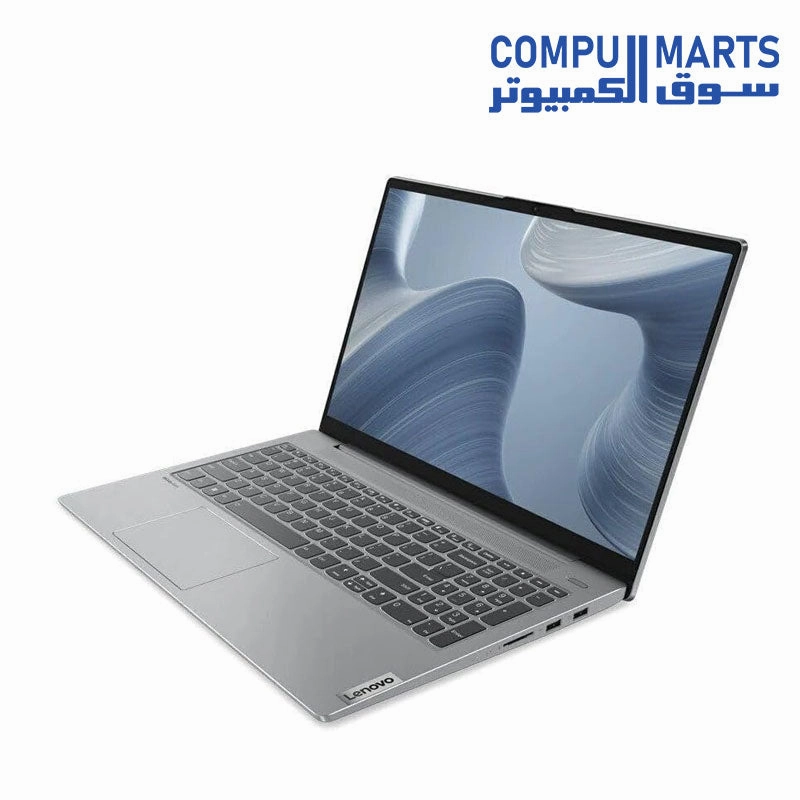

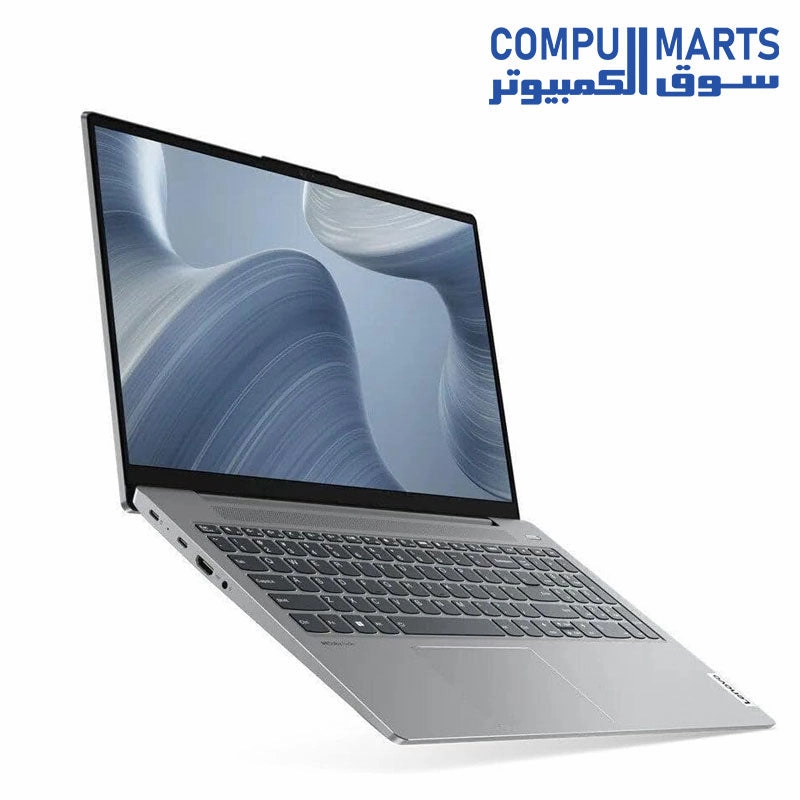

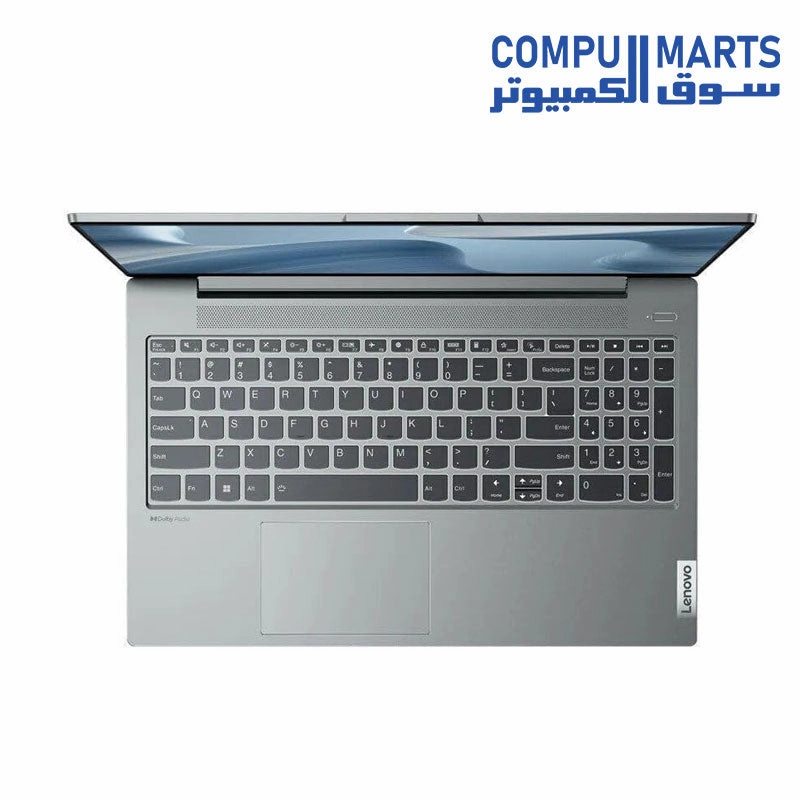

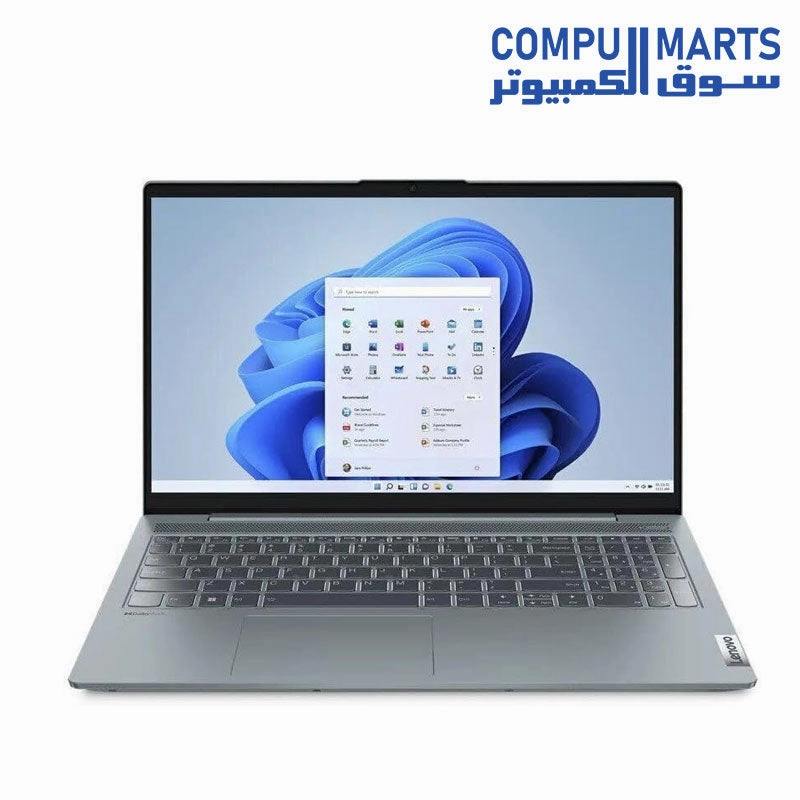

Lenovo IdeaPad 5 15IAL7 Core i7-1260P 16GB DDR4-3200,15.6" (1920x1080) IPS, 300nits, 45% NTSC, 60Hz, touch
Up to 12th Gen Intel Core i7-1260P | |
Up to Windows 11 Pro | |
Up to NVIDIA GeForce MX550 | |
Up to 16GB DDR4-3200, soldered | |
Up to two drives, 1x 2.5" HDD 1x M.2 SSD | |
Up to 15.6" (1920x1080) IPS, 300nits, 45% NTSC, 60Hz, touch |
1.SD card reader | 4.2x USB-C 3.2 Gen 1 |
2.USB 3.2 Gen 1 | 5.HDMI |
3.USB 3.2 Gen 1 (Always On) | 6.Headphone / microphone combo jack (3.5mm) |
Processor
Processor Family
12th Generation Intel Core i3 / i5 / i7 Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics |
|---|---|---|---|---|---|---|
| Core i3-1215U | 6 (2 P-core 4 E-core) | 8 | P-core 1.2GHz / E-core 0.9GHz | P-core 4.4GHz / E-core 3.3GHz | 10MB | Intel UHD Graphics |
| Core i5-1235U | 10 (2 P-core 8 E-core) | 12 | P-core 1.3GHz / E-core 0.9GHz | P-core 4.4GHz / E-core 3.3GHz | 12MB | Intel Iris Xe Graphics |
| Core i5-1240P | 12 (4 P-core 8 E-core) | 16 | P-core 1.7GHz / E-core 1.2GHz | P-core 4.4GHz / E-core 3.3GHz | 12MB | Intel Iris Xe Graphics |
| Core i7-1255U | 10 (2 P-core 8 E-core) | 12 | P-core 1.7GHz / E-core 1.2GHz | P-core 4.7GHz / E-core 3.5GHz | 12MB | Intel Iris Xe Graphics |
| Core i7-1260P | 12 (4 P-core 8 E-core) | 16 | P-core 2.1GHz / E-core 1.5GHz | P-core 4.7GHz / E-core 3.4GHz | 18MB | Intel Iris Xe Graphics |
Operating System
Operating System**
- Windows 11 Home
- Windows 11 Home Single Language
- Windows 11 Home Single Language in S mode
- Windows 11 Home in S mode
- Windows 11 Pro
- No operating system
Graphics
Graphics**
| Graphics | Type | Memory | Key Features |
|---|---|---|---|
| Intel UHD Graphics | Integrated | Shared | DirectX 12.1 |
| Intel Iris Xe Graphics | Integrated | Shared | DirectX 12.1 |
| NVIDIA GeForce MX550 | Discrete | 2GB GDDR6 | DirectX 12 |
Monitor Support
Monitor Support
Supports up to 3 independent displays (native display and 2 external monitors via HDMI and USB-C) HDMI supports up to 3840x2160@30Hz USB-C supports up to 4096x2160@60Hz
Chipset
Chipset
Intel SoC (System on Chip) platform
Memory
Max Memory
- 8GB soldered memory, not upgradable
- 12GB soldered memory, not upgradable
- 16GB soldered memory, not upgradable
Memory Slots**
- Memory soldered to systemboard, no slots, single-channel (Intel i3 models)
- Memory soldered to systemboard, no slots, dual-channel (Intel i5 / i7 models)
Memory Type
DDR4-3200
Storage
Storage Support[1]
- Models with 45Wh battery: up to two drives, 1x 2.5" HDD 1x M.2 SSD 2.5" HDD up to 1TB M.2 2242 SSD up to 512GB M.2 2280 SSD up to 1TB
- Models with 57Wh battery: up to two drives, 1x 2.5" HDD 1x M.2 SSD 2.5" HDD up to 1TB M.2 2242 SSD up to 512GB M.2 2280 SSD up to 1TB
- Models with 76Wh battery: one drive, 1x M.2 SSD M.2 2242 SSD up to 512GB M.2 2280 SSD up to 1TB
Storage Slot
- Models with 45Wh battery: one 2.5" drive slot one M.2 slot One 2.5" SATA HDD slot One M.2 2280 PCIe 4.0 x4 slot
- Models with 57Wh battery: one 2.5" drive slot one M.2 slot One 2.5" SATA HDD slot One M.2 2280 PCIe 4.0 x4 slot
- Models with 76Wh battery: one M.2 slot One M.2 2280 PCIe 4.0 x4 slot
Storage Type**
| Disk Type | Interface | RPM | Offering |
|---|---|---|---|
| 2.5" SATA HDD | SATA 6Gb/s | 5.4K | 2TB |
| M.2 2242 SSD | PCIe NVMe, PCIe 3.0 x4 | - | 256GB / 512GB |
| M.2 2242 SSD | PCIe NVMe, PCIe 4.0 x4 | - | 256GB / 512GB |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - | 512GB |
| M.2 2280 SSD | PCIe NVMe, PCIe 4.0 x4 | - | 512GB / 1TB |
Notes:
- 1.The storage capacity supported is based on the test results with current Lenovo storage offerings.
Removable Storage
Card Reader
SD card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek ALC3287 codec
Speakers
Stereo speakers, 2W x2, optimized with Dolby Audio
Microphone
Dual-microphone array
Camera**
- FHD 1080p, with privacy shutter, fixed focus
- HD 720p, with privacy shutter, fixed focus
Sensor
Sensors
Hall sensor
Battery
Battery**
- Integrated Li-Polymer 45Wh battery
- Integrated Li-Polymer 57Wh battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)[1]
- Integrated Li-Polymer 76Wh battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)[2]
Max Battery Life[3]
- Models with 45Wh battery and integrated graphics: MobileMark 2018@200nits: 6.5 hr Local video (1080p) playback@150nits: 9.9 hr
- Models with 57Wh battery and discrete graphics: MobileMark 2018@200nits: 7.5 hr Local video (1080p) playback@150nits: 12.2 hr
- Models with 57Wh battery and integrated graphics: MobileMark 2018@200nits: 8.5 hr Local video (1080p) playback@150nits: 12.8 hr
- Models with 76Wh battery and discrete graphics: MobileMark 2018@200nits: 10.1 hr Local video (1080p) playback@150nits: 16 hr
- Models with 76Wh battery and integrated graphics: MobileMark 2018@200nits: 11.2 hr Local video (1080p) playback@150nits: 16.4 hr
Notes:
- 1,2.Rapid Charge Boost is only effective in hibernates or fully shutting down the computer.
- 3.All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, MobileMark 25, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Power Adapter**[1]
- 45W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 100W USB-C slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
Notes:
- 1.AC adapter offerings depend on the country.
Design
Display
Display**
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15.6" | FHD (1920x1080) | None | TN | 250nits | Anti-glare | 16:9 | 500:1 | 45% NTSC | 60Hz | 45/45/15/35 |
| 15.6" | FHD (1920x1080) | None | IPS[1] | 300nits | Anti-glare | 16:9 | 800:1 | 45% NTSC | 60Hz | 85/85/85/85 |
| 15.6" | FHD (1920x1080) | None | IPS[2] | 300nits | Anti-glare | 16:9 | 1200:1 | 100% sRGB | 60Hz | 85/85/85/85 |
| 15.6" | FHD (1920x1080) | Multi-touch | IPS[3] | 300nits | Anti-glare | 16:9 | 800:1 | 45% NTSC | 60Hz | 85/85/85/85 |
Touchscreen
- On-cell multi-touch, supports 10-point touch
- Non-touch
Notes:
- 1,2,3.IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.
Input Device
Keyboard
6-row, multimedia Fn keys, numeric keypad
Keyboard Backlight
- LED backlight
- Non-backlight
Touchpad
Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 69 x 104 mm (2.72 x 4.09 inches)
Mechanical
Dimensions (WxDxH)[1]
| Models | Dimensions |
|---|---|
| Metal models | 356.67 x 233.13 x 16.9 mm (14.04 x 9.18 x 0.67 inches) |
| Plastic models | 356.67 x 233.13 x 17.9 mm (14.04 x 9.18 x 0.70 inches) |
Weight[2]
| Models | Weight |
|---|---|
| Plastic models | Starting at 1.77 kg (3.90 lbs) |
| Metal models | Starting at 1.85 kg (4.08 lbs) |
Case Color**
- Abyss blue
- Cloud grey
- Stone blue
- Storm grey
Surface Treatment
Aluminium stamping (anodized)
Case Material**
- Aluminium (top), PC-ABS (bottom)
- Aluminium (top), aluminium (bottom)
Notes:
- 1.The system dimensions may vary depending on configurations.
- 2.The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Ethernet
No onboard Ethernet
WLAN Bluetooth[1]
Wi-Fi 6, 802.11ax 2x2 Wi-Fi Bluetooth 5.2, M.2 card
Notes:
- 1.Wi-Fi 6 full features might be limited by country-level restrictions.
Ports
Standard Ports
- 1x USB 3.2 Gen 1
- 1x USB 3.2 Gen 1 (Always On)
- 2x USB-C 3.2 Gen 1 (support data transfer, Power Delivery 3.0 and DisplayPort 1.2)
- 1x HDMI 1.4b
- 1x Headphone / microphone combo jack (3.5mm)
- 1x SD card reader
Docking
Docking
Various docking solutions are supported via USB-C. For more compatible docking solutions, please visit
Security & Privacy
Security
Security Chip
Firmware TPM 2.0 integrated in SoC
Fingerprint Reader
- Touch style fingerprint reader integrated in power button
- No fingerprint reader
BIOS Security
- Administrator password
- User password
- Master hard disk password
- User hard disk password
- Self-healing BIOS
Other Security
Camera privacy shutter
Service
Warranty
Base Warranty**
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 2-year (1-yr battery) courier or carry-in service
- 3-year (1-yr battery) courier or carry-in service
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5C to 35C (41F to 95F) - Storage: 5C to 43C (41F to 109F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3C (88F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23C (73F)
- Storage: 5% to 95% at wet-bulb temperature 27C (81F)
Altitude
Maximum altitude (without pressurization): 3048 m (10,000 ft)
Notes:
1.When you charge the battery, its temperature must be no lower than 10C (50F).
