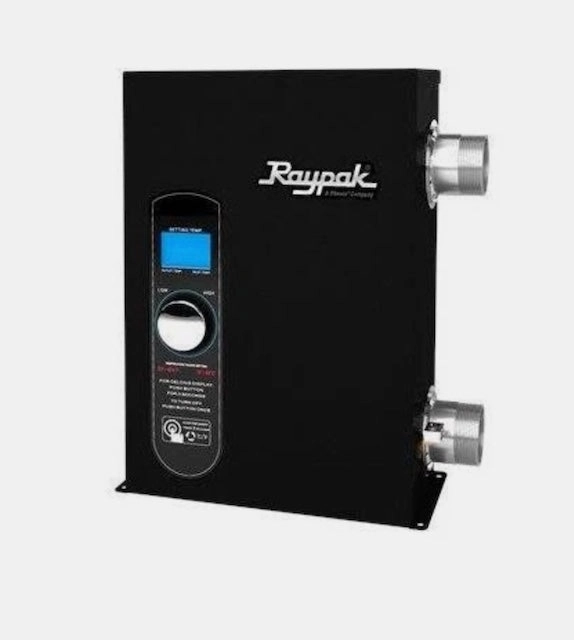

Raypak E3T Electric Pool & Spa Heater, 5.5kW, 240V
Upgrade your pool or spa heating system with the Raypak E3T Electric Pool & Spa Heater (5.5kW, 240V, single-phase). Featuring rugged titanium heating elements encased in 316L marine-grade stainless steel, this unit delivers corrosion-resistant, efficient performanceeven in saltwater environments. Its solid-state controls and flow-sensor design offer whisper-quiet, modulating heat output, while a bright digital display provides real-time inlet/outlet temperatures, flow rate, and diagnostic alerts.
Specifications:
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ELSR00051TiB (5.5kW) |
| Product #: | RAY150012 (cross-reference 017121, 10010000662) |
| Power Output | 5.5kW 18,767BTU/hr |
| Voltage | 240VAC, single-phase, 60Hz |
| Amp Draw / Breaker | ~30A service |
| Element Material | Titanium |
| Housing Material | 316L marine-grade stainless steel |
| Flow Activation Range | Min 15GPM (57LPM) Max 60GPM (227LPM) |
| Plumbing Connections | 1 NPT union fittings (included) |
| Thermal Efficiency | 100% |
| Safety Features | Freeze/low-temp protection, flow monitoring, overheat, diagnostic codes (E1E10) |
| Control Interface | Digital display with inlet/outlet temps, flow, fault codes |
| Dimensions (HWD) | 12.125 9 4.75 (30.822.812cm) |
| Weight | 15lb (6.8kg) |
| Warranty | 1-year limited (extended options available via Raypak retail partners) |
What's in the Box:
E3T heater unit (ELSR00051TiB, 5.5kW)
User manualcomprehensive installation and operation guide
Warranty documentation, including manufacturers limited warranty
