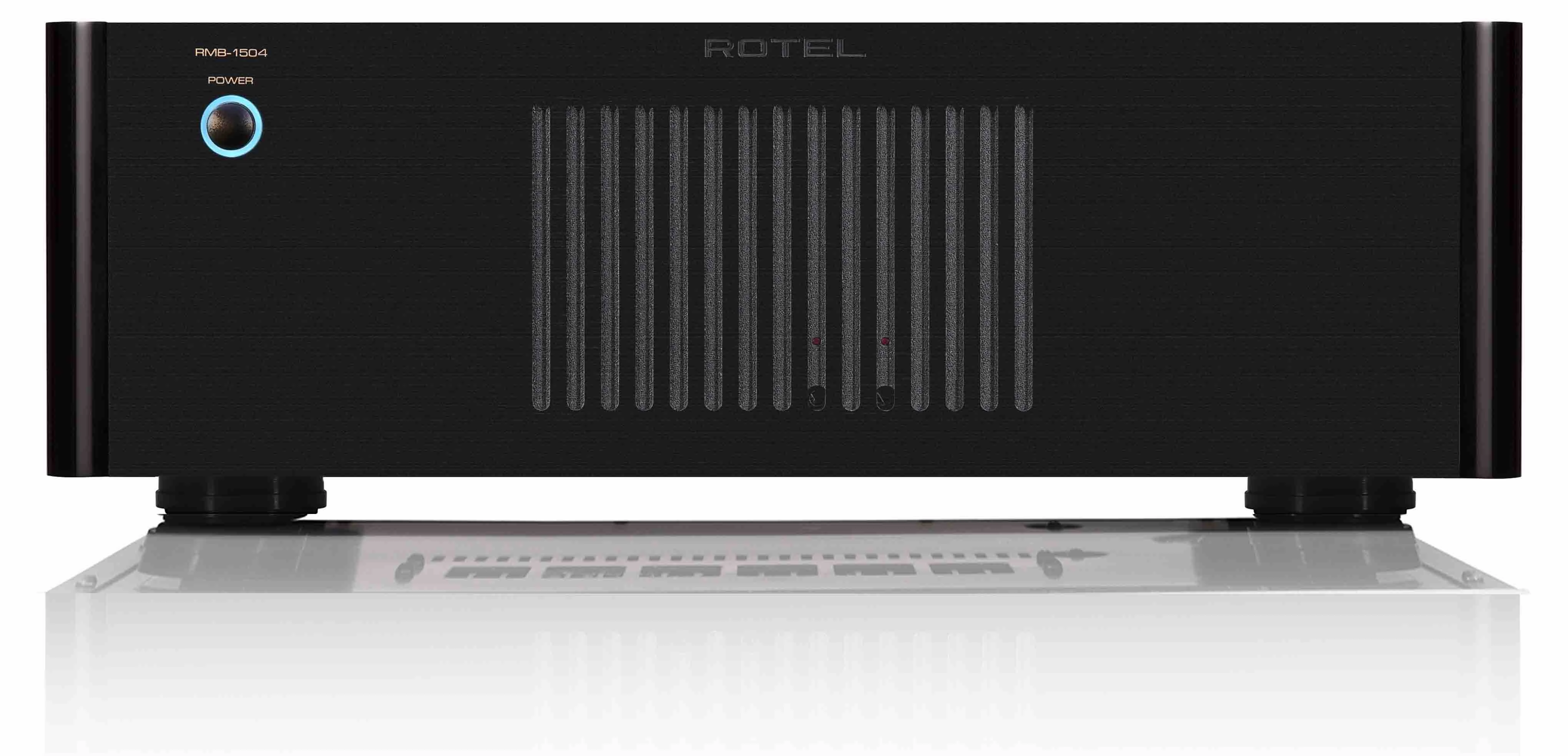

The RMB-1504 Class AB 4-channel amplifier delivers on the ongoing commitment of performance without compromise building on over 60 years of Rotel amplifier design and in-house manufacturing of Hi-Fi electronics. This amplifier provides the power and refinement suited for home theater installations as well as custom installation multi-room audio solutions.
The RMB-1504 Class AB 4-channel amplifier delivers 70 watts per channel into 8 ohms and 115 watts into 4 ohm loads with the ongoing commitment of performance without compromise building on over 60 years of Rotel amplifier engineering, design and manufacturing experience. This amplifier provides power and refinement for object based overhead speakers in home theater installations and the demanding drive required for custom installation and multi-room audio solutions.
The 12 volt trigger input and output connections, user selected audio signal sense power control, front panel volume attenuators, audio output link connections, 5-way speaker binding posts and available rack mount kit(rack ears included in some markets) provides ultimate installation flexibility.
An oversized factory built toroidal transformer andhigh efficiency capacitors drive an array of high currentoutput transistors ensuring fast transient timing,accurate detail and controlled consistency of lowfrequency regardless of the loudspeakers load ratingor cable run distance. Maintaining crucial timing andenergy while delivering effortless power is a signaturetrait of this amplifier providing increased speakerplacement options.
Critical evaluation of the circuit design and meticulousselection of each acoustic audio components ensuresaccuracy, power and efficiency all coupled with anunsurpassed build quality ensuring this amplifierproudly wears the Rotel name.
Features:
- 70 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all channels driven
- 115 watts per channel into 4 ohms
- Class AB design
- Custom made toroidal transformer for stable, noise-free performance
- Frequency response: 10-100,000 Hz (1dB)
- Signal-to-noise ratio: 115 dB
- Thermal and overcurrent protection circuitry
- Detachable power cord
Connections:
- Two unbalanced stereo RCA inputs for A/B channel pairs
- Independent input level controls on front panel (adjustable via small flat-blade screwdriver)
- Mono switch links left and right channels for feeding both with a single mono RCA connection
- Link switch sends A channel input signals to the B channels
- Unbalanced stereo RCA signal output link
- Passes left/right A channel input signals to a connected component
- 5-way binding post terminals for A/B speakers
- 3.5mm 12-volt trigger in/out with signal sensing switch
- Rack mounting ears included
Specifications:
Dimensions (W H D)431 144 443mm
17" 5.7" 17.5"Front Panel Height3U / 132.6mm (5.25")Power Requirements120V, 60HzPower Consumption450WStandby Power ConsumptionStandby < 0.5WSignal Sense 1 WNet Weight14.9kg (32.8lbs.)BTU Rating810 BTU/hContinuous Power Output4 x 70W/Ch (All channels driven, 8)Total Harmonic Distortion (THD)(20Hz20kHz, 8) <0.03%Frequency Response10Hz - 100kHz 1dBS/N Ratio(IHF "A" Weighted)115dBGain26dBIntermodulation Distortion(60Hz:7kHz, 4:1)<0.03%Damping Factor>200Speaker Impedance4 minimumInput Sensitivity1VInput Impedance20kthe
