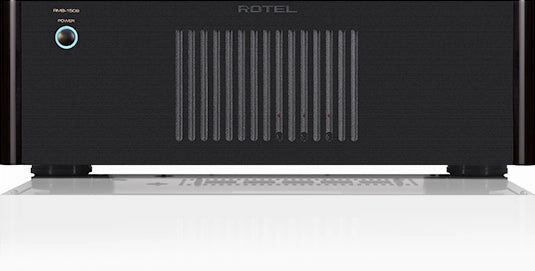

Featuring 6 x 50 watts per channel, the RMB-1506 is a rugged, sophisticated, multichannel amplifier for those with a limited number of zones to fill with music.
The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or zones of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.
As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.
Features:
- 50 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all channels driven
- 80 watts per channel into 4 ohms
- Class AB design
- Custom made toroidal transformer for stable, noise-free performance
- Frequency response: 10-100,000 Hz (1dB)
- Signal-to-noise ratio: 115 dB
- Thermal and overcurrent protection circuitry
- Detachable power cord
- Rack mounting ears included

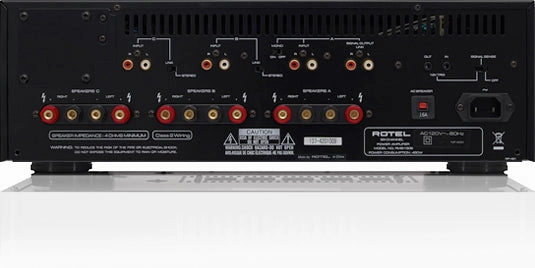

Connections:
- Three unbalanced stereo RCA inputs for A/B/C channel pairs
- Mono switch links left and right channels for feeding both with a single mono RCA connection
- Link switches send A channel input signals to the B and/or C channels
- Independent input level controls on front panel (adjustable via small flat-blade screwdriver)
- Unbalanced stereo RCA signal output link
- Passes left/right A channel input signals to a connected component
- 5-way binding post terminals for A/B/C speakers
- 3.5mm 12-volt trigger in/out with signal sensing switch
Specifications:
Dimensions (W H D)431 144 424mm
17" 5.7" 16.7"Front Panel Height3U / 132.6mm (5.25")Power Requirements120V, 60HzPower Consumption450WStandby Power Consumption2.6WNet Weight15.3kg (34lbs.)BTU Rating(4, 1/8th power)1680 BTU/hContinuous Power Output50W/Ch (All channels driven, 8)80W/Ch (All channels driven, 4)Total Harmonic Distortion (THD)(20Hz20kHz) <0.03%Frequency Response10Hz - 100kHz 1dBS/N Ratio(IHF "A" Weighted)115dBGain26dBIntermodulation Distortion(60Hz:7kHz, 4:1)<0.03%Damping Factor>200Speaker Impedance4 minimumInput Sensitivity1VInput Impedance20k
