Rotels new RMB-1587MKII 7-channel amplifier furthers our heritage of producing high powered, high current, exceptionally manufactured Class AB amplifiers for multi-channel systems. The RMB-1587MKII delivers 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms and drives 4 ohm speakers with over 250 Watts per channel, all channels driven.
Rotels new RMB-1587MKII 7-channel amplifier continues our heritage of producing high powered, perfectionist amplifiers for multi-channel systems.
Following Rotel's MKII design architecture, the RMB-1587MKII incorporates significant circuit and component upgrades in both the power supply and amplifier stages achieving ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.
Differing from multi-channel amplifiers whose output drops when driving multiple channels simultaneously, the RMB-1587MKII delivers all 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms, and 250 Watts per channel into 4 ohms with all channels driven.

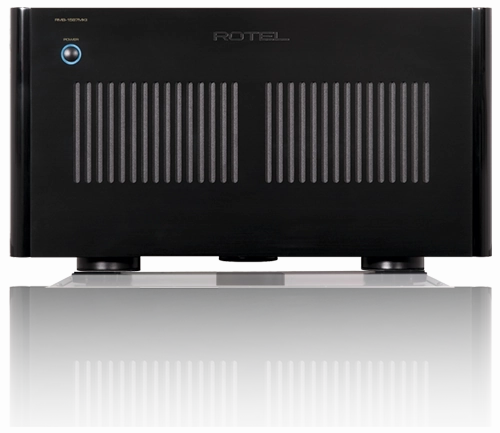

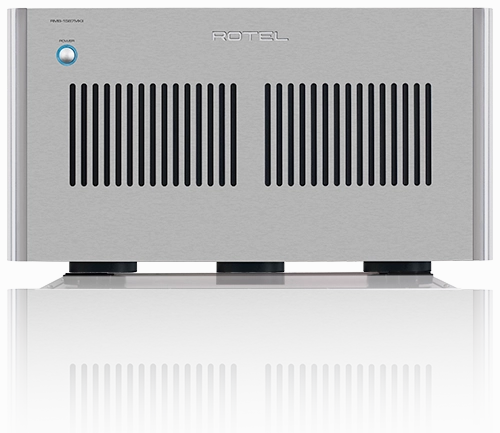

The RMB-1587MKII is available in both black and silver colors.
Features:
- 155 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all seven channels driven
- 4-ohm stable for use with a wide range of speakers
- Class AB design
- Dual custom-made massive toroidal transformers for stable, noise-free performance
- Eight high-efficiency energy storage capacitors provide a ready supply of current
- Frequency response: 10-100,000 Hz ( 0/-0.3dB)
- Signal-to-noise ratio: 111 dB
- Four thermostat-controlled, variable-speed ultra-low-noise fans
- Rack-mountable with optional hardware (sold separately)
- Detachable power cord

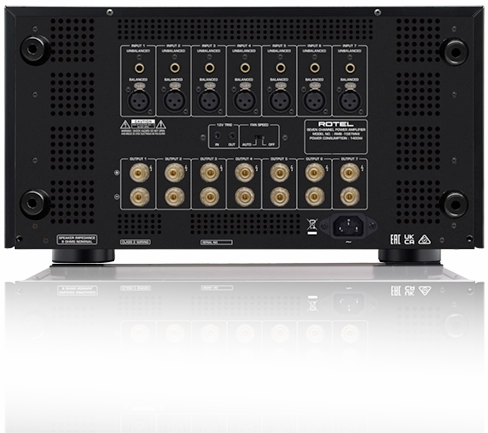

Connections:
- Balanced XLR and unbalanced RCA inputs for all seven channels
- 5-way binding post terminals for each speaker
- 3.5mm 12-volt trigger in/out
Specifications:
Dimensions (W H D):431 237 456mm17" 9.4" 18"Front Panel Height:5U / 221mm (8.75")Power Requirements:120V, 60HzPower Consumption:1400WNet Weight:37.6kg (82.9lbs.)BTU Rating (4, 1/8th power):4016 BTU/hContinuous Power Output:155W/Ch (7 channels driven, 8)250W/Ch (7 channels driven, 4)335W/Ch (2 channels driven, 4)Total Harmonic Distortion (THD):(20Hz20kHz) <0.03%Frequency Response:10Hz - 100kHz 0, -3dBS/N Ratio (IHF "A" Weighted):111dBGain:26.6dBCrosstalk/Separation:>55dBIntermodulation Distortion(60Hz:7kHz, 4:1):<0.03%Damping Factor:330Input Sensitivity:Line Level Inputs (RCA): 1.61VLine Level Inputs (XLR): 3.4VInput Impedance:Line Level Inputs (RCA): 12kLine Level Inputs (XLR): 50k
