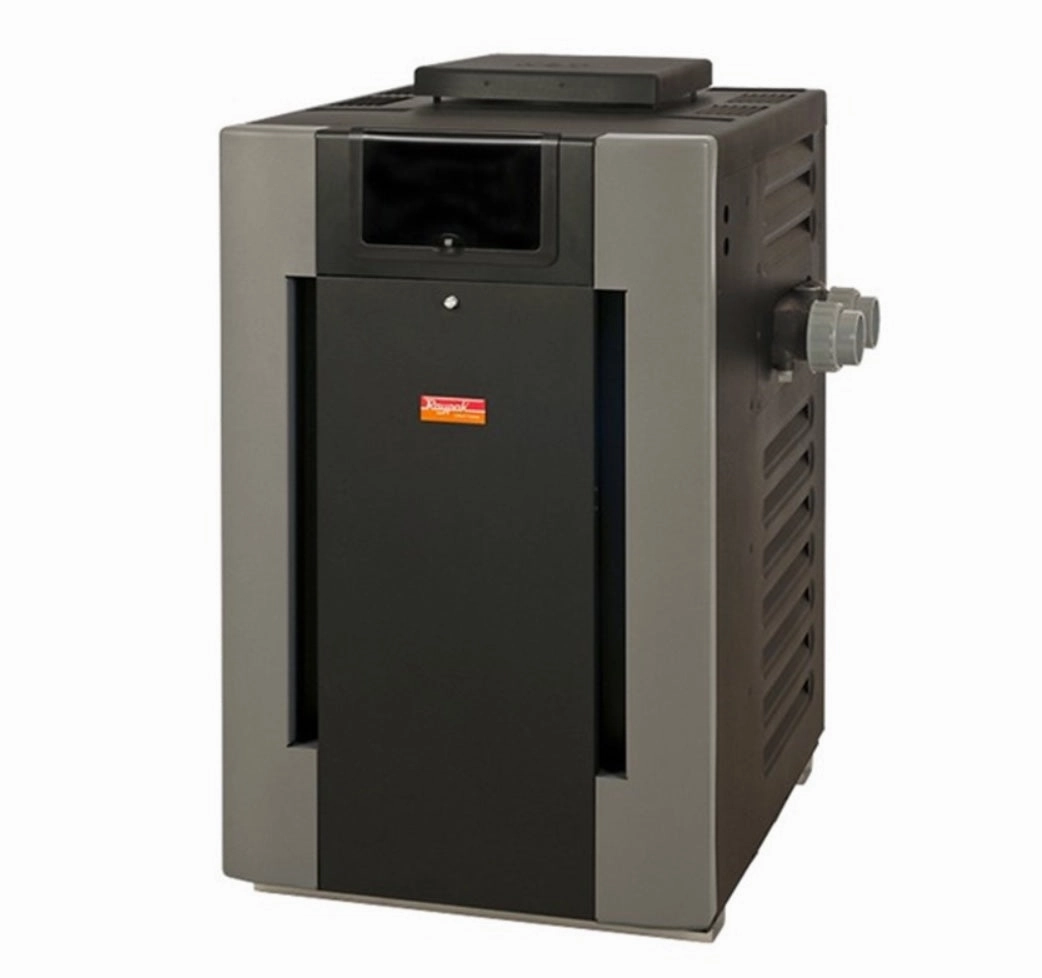

RUUD #50 266K BTU Natural Gas Digital Polymer Pool Heater
The Ruud P-D266A Natural Gas Digital Polymer Pool/Spa Heater meets or exceeds all federal and state standards with Ruud's energy-smart heaters consistently achieve the highest efficiency ratings. The ProTek Shield is a cutting-edge module that protects the heat exchanger and extends the life of your Digital Gas Pool and Spa Heater. Rest, soak or swim knowing that your pool heater investment can be enjoyed even longer thanks to this innovative, patent-pending technology.
Specifications
- Application: Pool, Spa
- Cabinet Depth: 28 inch
- Cabinet Height: 38 inch
- Cabinet Width: 23 inch
- Channel: Pool Equipment
- Commercial, Residential, or Professional: Residential
- Control Type: Digital Electronic
- Each Product Weight: 214 pound
- Flow Rate Max: 125 gal/min
- Flow Rate Min: 125 gal/min
- Frequency Rating (Hz): 60
- Fuel Type: Natural Gas
- Standards Approvals: ASME Certified
- Voltage: 115V, 230V
- BTU Input: 266000 British thermal unit
- Burner Orifice Size: #50
- Elevation Max: 2000 foot
- Elevation Min: 0 foot
- Flue Diameter: 7 inch
- Gas Connection: 0.75 inch
- Gas Connection FIT: NPT
- Header Material: Polymer
- High Altitude ModelFalse
- Indoor Drafthood62 inch
- Minimum J: 11 inch
- Stackless Outdoor Top: 40 inch
- Tubing Material: Copper
- ItemShippingDimensions: 44 x 30 x 28 inch
What's in the Box
1 x Ruud Raypak #50 Natural Gas Digital Polymer Heater 266K BTU
1 x User Manual
