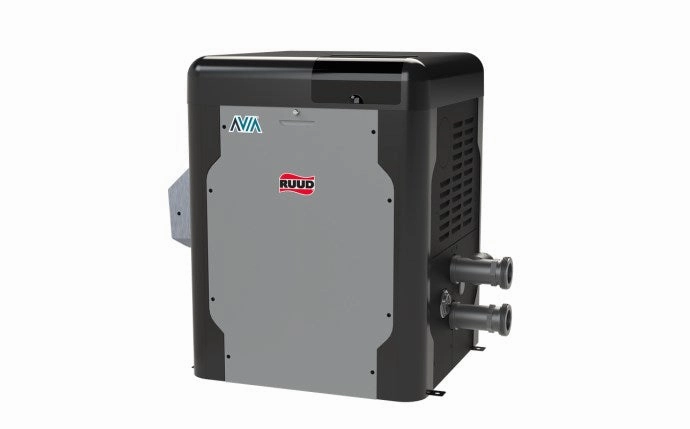

RUUD AVIA 264K BTU Natural Gas Pool & Spa Heater Low NOx & WiFi Enabled (P-D264A-EN-C)
Managing your pool heater has never been easier or smarter. AVIA is built with an innovative Wi-Fi enabled control system that allows you to manage your pool heater and ecosystem through its easy to use touch control interface. No need for a separate control panel to manage your pool heater and ecosystem, AVIA does it All.
Specifications
- Flow Rate Min: 40 gal/min
- Frequency Rating (Hz: )60
- Fuel Type: Natural Gas
- Ignition Type: Electronic
- Includes: (2) 2" CPVC Tailpiece, (2) 2" CPVC Ring Nut, (2) O-rings, (1) 120V Blower Adapter, (1) 3-Wire Remote Harness, (1) Auxiliary Harness, (1) Raymote Quick Start Guide
- Min Circuit Ampacity: 1.2 amperage
- Minimum Sell Quantity: 1
- Pallet Quantity: 4
- Product Depth: 23.22 inch
- Product Height: 30.38 inch
- Product Weight: 135 pound
- Product Width: 32.61 inch
- Standards Approvals: CSA Certified, ANSI Certified
- Voltage: 120V, 240V
- BTU Input: 264 British thermal unit
- Elevation Max: 4500 inch
- Flue Diameter: 4 inch
- Gas Connection: 0.75 inch
- Gas Connection FIT: NPT
- Header MaterialPolymer
- Heat Exchanger Material: Copper
- Heater Color: Maroon, Gray
- Housing Finish: Matte
- Indoor Vent Pipe Diameter: 4 inch
- Maximum Circuit Breake: r1.6 amperage
- Thermal Efficiency: 0.84
- Tubing Material: Copper
- Water Connection 1: 2 inch
- Water Connection 2: 2 inch
- ItemShippingDimensions: 53 x 39 x 38 inch
What's in the Box
1 x Ruud Raypak AVIA P-D264A-EN-C Natural Gas Low NOx Pool and Spa Heater 264K BTU
1 x Instruction Manual
