Name: Tp-Link AX4400 Dual-Band Gigabit Wi-Fi 6 Router
SKU: 688230

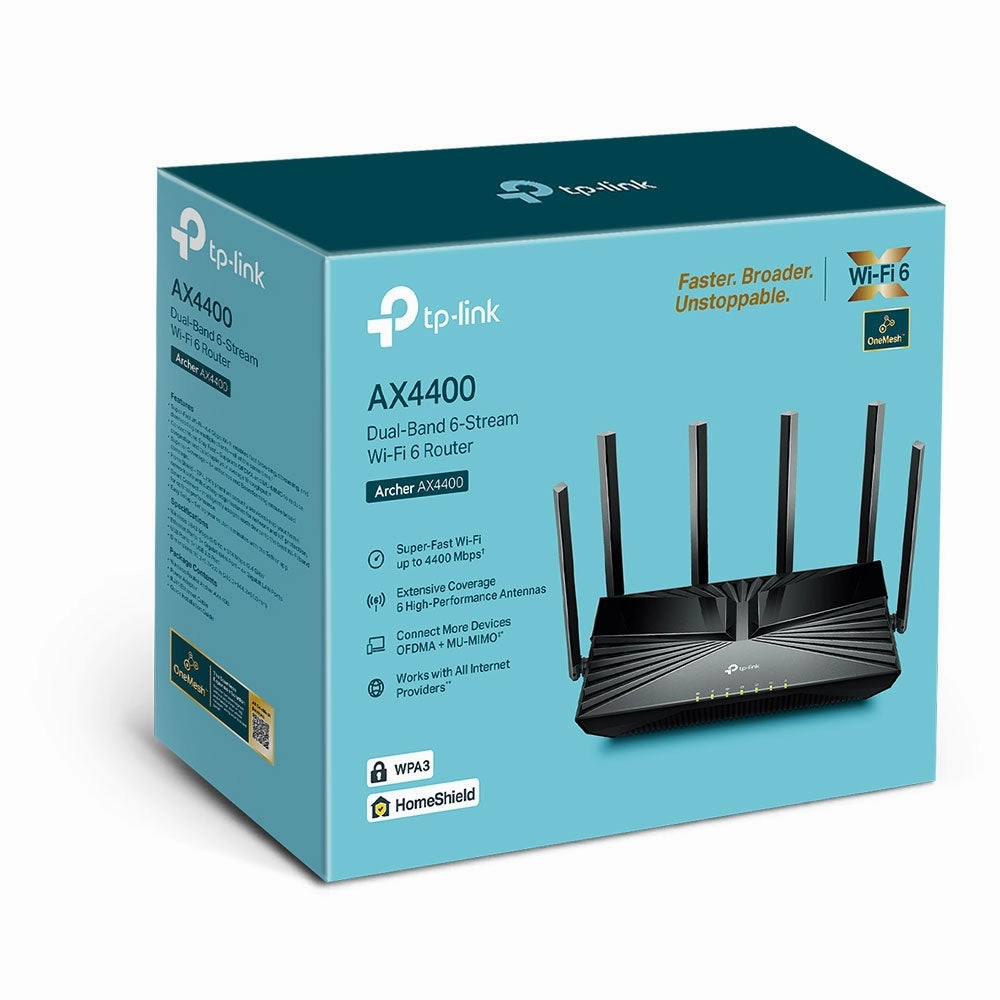

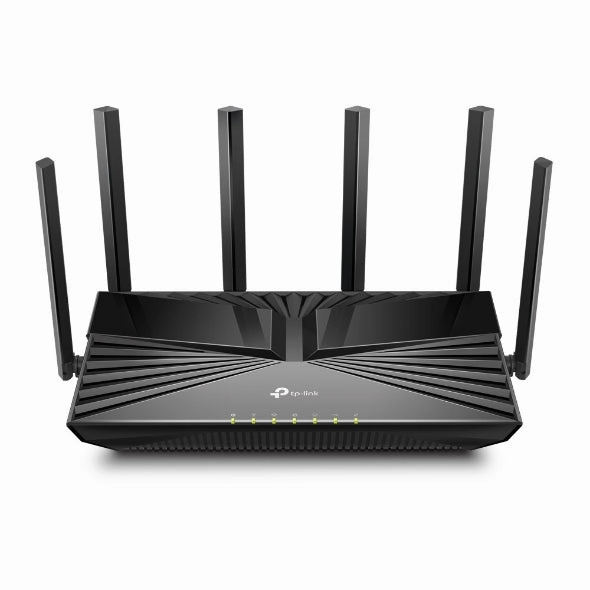

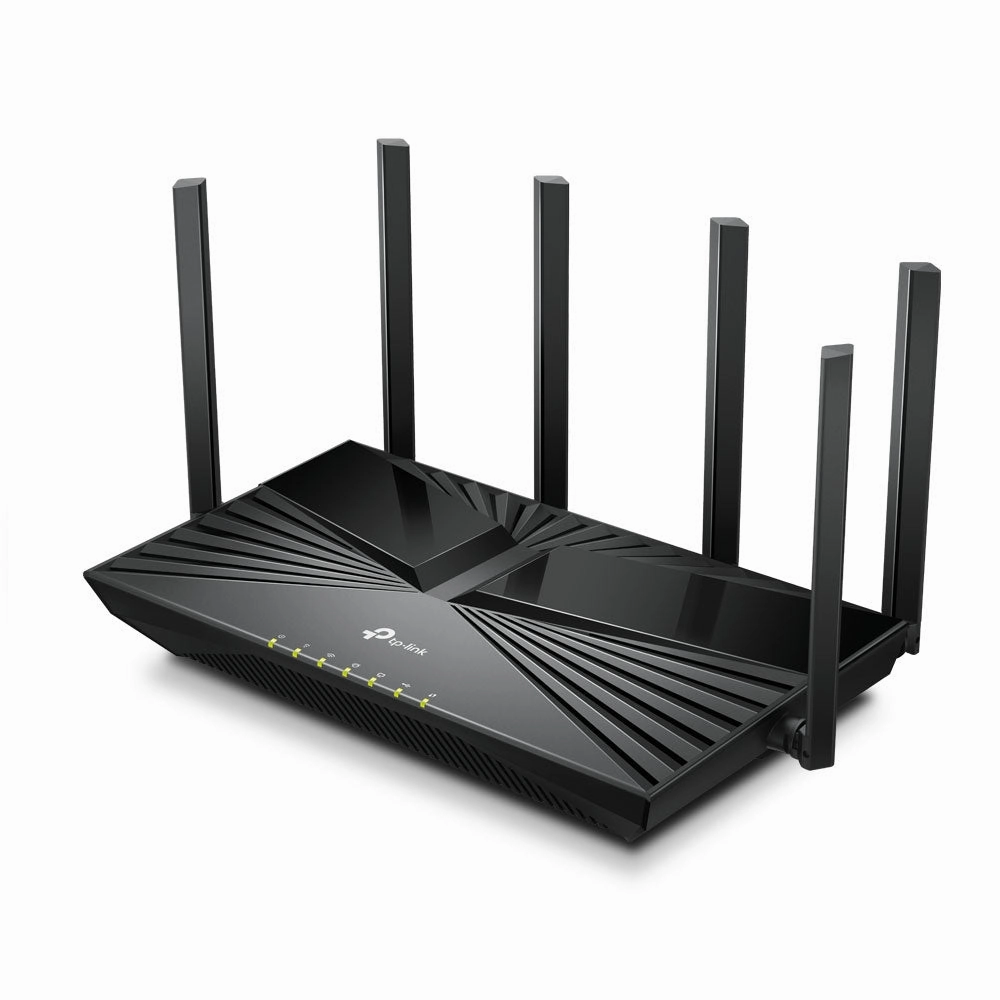

TP-Link AX4400 Dual-Band Gigabit Wi-Fi 6 Router

Archer AX4400 from TP-Link is the one-stop-solution to end all your Wi-Fi woes, a router so good that it kills wi-fi dead zones for you. At 4400Mbps enjoy browsing, streaming, downloading and gaming with seamless connectivity from any nook and corner of your house.

The 3.8 Gbps ultra-fast connection can connect 200 devices simultaneously and is rightly supported with MU-MIMO that handles the congestion of heavy data traffic. An unrelenting OFDMA is in place to quadruple your average throughput and ensures every connected device gets uninterruptedWi-Fi service befitting its requirement.

Featuring the TP-Link trademark OneMesh that seamlessly covers your smart home,no matter where your interests take you, be it thebasement or the backyard, your device stays connected at all times.

Features:

Dual-Band gigabit Wi-Fi 6 forseamless 8K streaming
Connect 200 devices simultaneously
Beamforming 6 antennas for extensive coverage
Premium security with TP-Link's HomeShield
Added network and IoT protection
3.0 USB port for easy media sharing and private cloud building
Easy to set up, easier to use with Tether app
Enjoy faster speeds, higher capacity and lesser lags

Specifications:

WIRELESS

Standards: Wi-Fi 6,IEEE 802.11ax/ac/n/a 5 GHz,IEEE 802.11ax/n/b/g 2.4 GHz

Wi-Fi Speeds: AX5400,5 GHz: 3843 Mbps (802.11ax, HE160),2.4 GHz: 574Mbps (802.11ax)

Wi-Fi Range:

3 Bedroom Houses
6 Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

Wi-Fi Capacity:

High
Dual-Band
Allocate devices to different bands for optimal performance

44 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth

Working Modes: Router Mode,Access Point Mode

HARDWARE

Processor:Powerful CPU

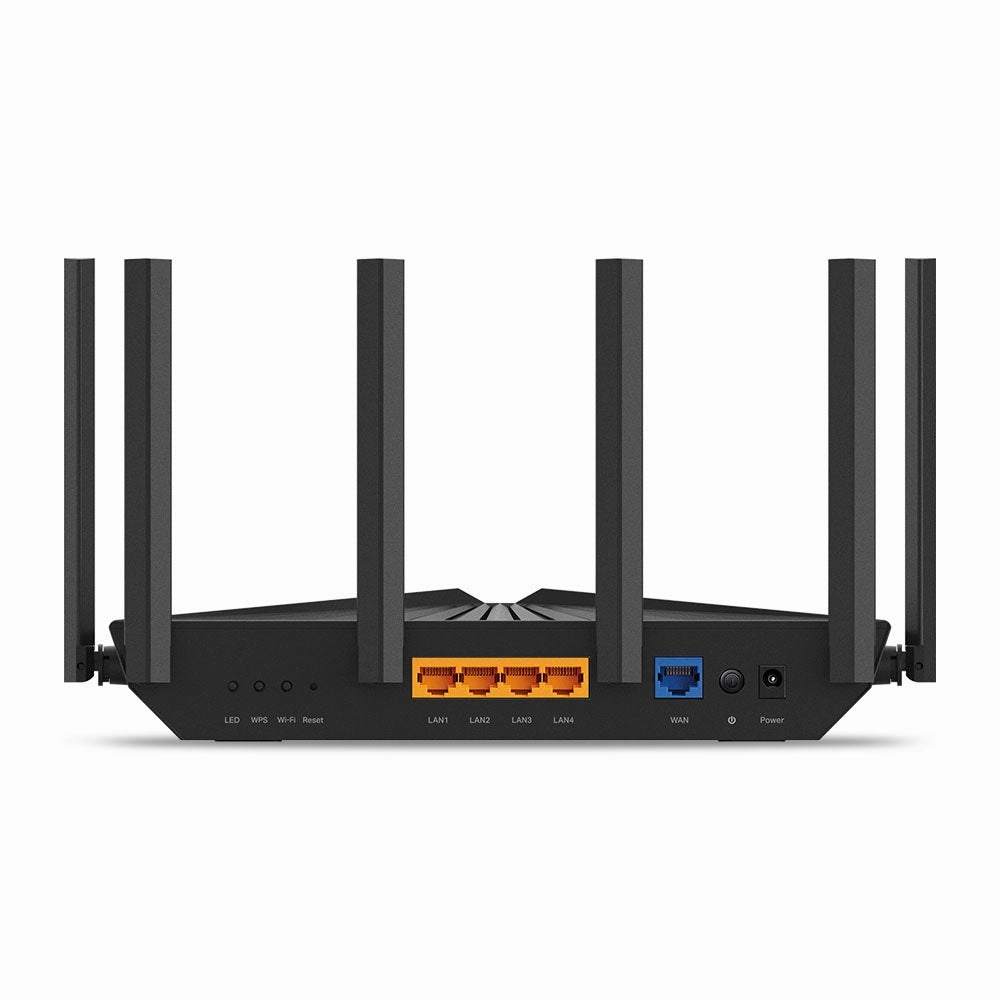

Ethernet Ports: 1 Gigabit WAN Ports, 4 x Gigabit LAN Ports, Static Link Aggregation (LAG) available with 2 x LAN Ports

USB Support: 1 USB 3.0 Port, Supported Partition Formats -NTFS, exFAT, HFS , FAT32,
Supported Functions -Apple Time Machine,FTP Server,Media Server,Samba Server

Buttons: Wi-Fi On/Off Button,Power On/Off Button,LED On/Off Button,WPS Button,Reset Button

Power: 12 V 2.5 A

SECURITY

Wi-Fi Encryption: WPA,WPA2,WPA3,WPA/WPA2-Enterprise (802.1x)

Network Security: SPI Firewall,Access Control,IP & MAC Binding,Application Layer, Gateway

HomeShield Security: Real-time IoT Protection, Malicious Site Blocker, Intrusion Prevention System,DDoS Attack Prevention, Home Network Scanner

Guest Network: 1 5 GHz Guest Network,1 2.4 GHz Guest Network

VPN Server: OpenVPN,PPTP

SOFTWARE

Protocols: IPv4,IPv6

Service Kits:HomeShield

OneMesh: OneMesh Supported, Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

Parental Controls: HomeShield Parental Controls, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports

WAN Types: Dynamic IP,Static IP,PPPoE,PPTP,L2TP

Quality of Service: QoS by Device

Cloud Service: Auto Firmware Upgrade, TP-Link ID,DDNS

NAT Forwarding: Port Forwarding,Port Triggering,DMZ,UPnP, Virtual Server

IPTV: IGMP Proxy,IGMP Snooping,Bridge,Tag VLAN

DHCP: Address Reservation,DHCP Client List,Server

DDNS: TP-Link,NO-IP,DynDNS

Management: Tether App,Webpage

OTHERS

Dimensions (WDH) 10.3 5.7 2.0 in

System Requirements: Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 , or other JavaScript-enabled browser,Cable or DSL Modem (if needed),Subscription with an internet service provider (for internet access)

Certifications: FCC, CE, RoHS

Environment:

Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70 (-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

Wi-Fi Transmission Power:

CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}

FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }

Wi-Fi Reception Sensitivity:

2.4GHz:

11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm

5GHz:

11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm
