Name: Tp-Link AX6000 Next-Gen Wi-Fi Router
SKU: 688231

Tp-Link AX6000 Next-Gen Wi-Fi Router

Bring home the AX6000 Archer, TP-Link's very first router with Next-Gen 802.11ax Wi-Fi technology. Built to ape the battle arena, the 8 antennas stand guard as you win every battle of network connectivity with a boosted 1024 QAM wireless speeds of up to 5952 Mbps.

Uprooting any lag in data transfer, the highly efficient Archer AX6000 boasts of OFDMA and MU-MIMO tech clearing any congestion that may occur as multiple devices hook on to the Wi-Fi and support ultra-speed uplink and downlink effectively with minimal latency.

Fitted with the top-notch 1.8GHz 64 bit Quad-core processor and 2 coprocessors, the AX6000 delivers stable performance even as 200 devices hook on to the network simultaneously.

While the dynamic working of TP-Link router via its trademark OneMesh tech ensures devices are redirected to the least congested band optimizing the usage, TP-Link HomeCare with advanced antimalware security power blankets your network arena with a state-of-the-art security system.

Features:

Seamless roaming with intelligent connection for optimal usage of airtime
AI Driven OneMesh constantly learns and dynamically improves Wi-Fi experience
Achieve blazing speeds of up to 5952 Mbps
Highly efficient OFDMA to handle high density scenarios
Easy to set up, easier to use with Tether app
Sophisticated Wi-Fi dead zone killer
Provides lightning fast wired connections
24 hours HomeCare to protect your network against threats

Specifications:

WIRELESS

Standards: Wi-Fi 6,IEEE 802.11ax/ac/n/a 5 GHz,IEEE 802.11ax/n/b/g 2.4 GHz

Wi-Fi Speeds: AX5400,5 GHz: 4804 Mbps (802.11ax, HE160),2.4 GHz:1148 Mbps (802.11ax)

Wi-Fi Range:

4 Bedroom Houses

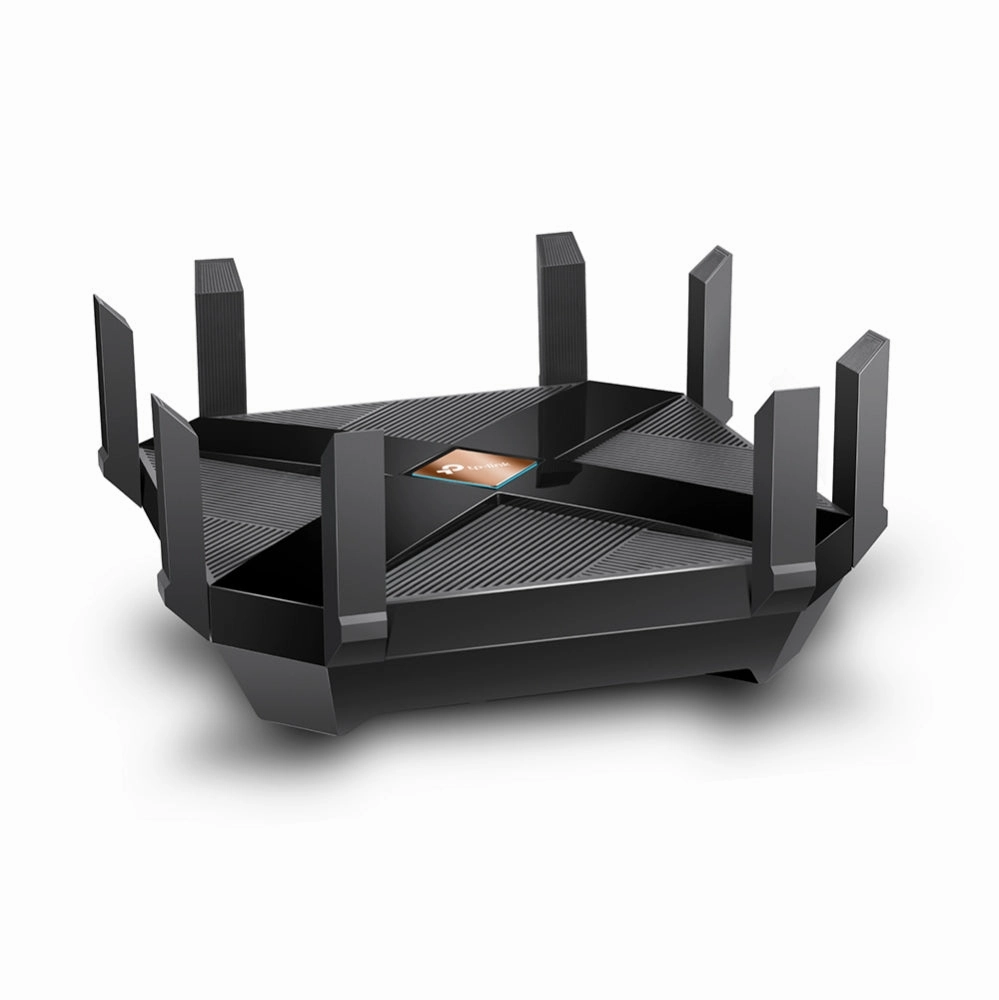

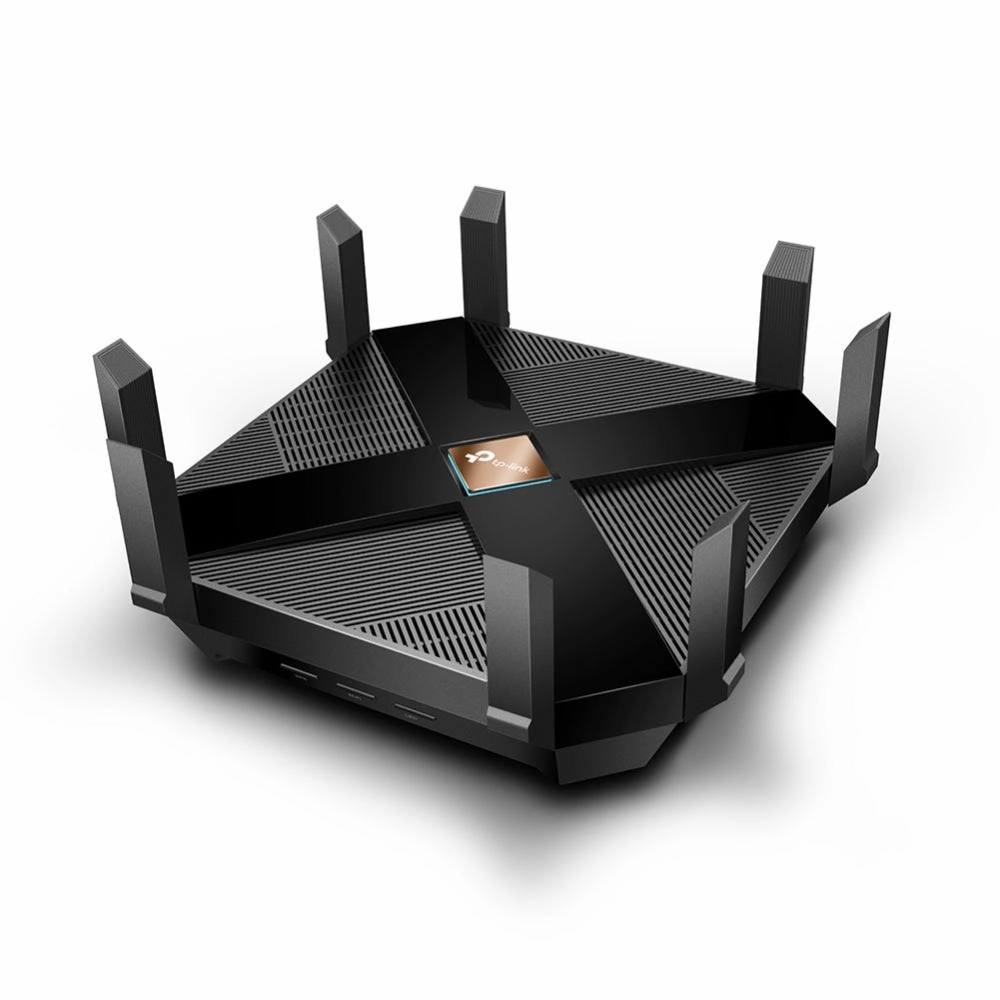

8 Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

Wi-Fi Capacity:

Very High
Dual-Band
Allocate devices to different bands for optimal performance

44 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth

Working Modes: Router Mode,Access Point Mode

HARDWARE

Processor: 1.8 GHz 64 Bit Quad-Core CPU

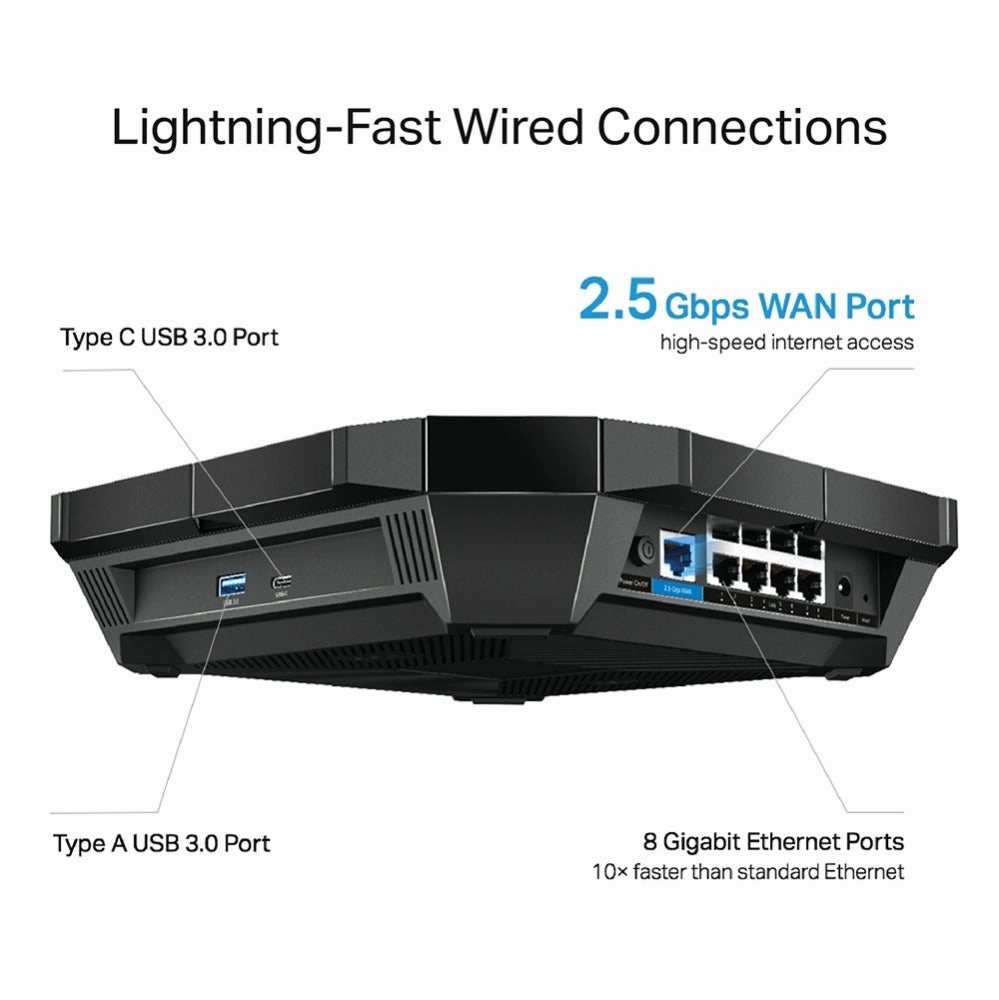

Ethernet Ports: 1 2.5 Gbps WAN port, 8 x Gigabit LAN Ports, Static Link Aggregation (LAG) available with 2 x LAN Ports

USB Support: 1 USB-C 3.0 Port, 1 x USB-A 3.0 Port, Supported Partition Formats -NTFS, exFAT, HFS , FAT32,
Supported Functions -Apple Time Machine,FTP Server,Media Server,Samba Server

Buttons: Wi-Fi On/Off Button,Power On/Off Button,LED On/Off Button,WPS Button,Reset Button

Power: 12 V 4 A

SECURITY

Wi-Fi Encryption: WPA,WPA2,WPA3,WPA/WPA2-Enterprise (802.1x)

Network Security: SPI Firewall,Access Control,IP & MAC Binding,Application Layer, Gateway

HomeCare Antivirus: Malicious Site Checker, Port Intrusion Prevention, Infected Device Location, Notification and Log

Guest Network: 1 5 GHz Guest Network,1 2.4 GHz Guest Network

VPN Server: OpenVPN,PPTP

SOFTWARE

Protocols: IPv4,IPv6

Service Kits:HomeCare

OneMesh: OneMesh Supported, Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

Parental Controls: HomeCare Parental Controls,Custom Profiles, Content Filtering, App Block, URL Filtering, Time Limit, Time Schedule (Bed Time), Log Insight

WAN Types: Dynamic IP,Static IP,PPPoE,PPTP,L2TP

Quality of Service: QoS by Device, HomeCare QoS - QoS by application

Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID,DDNS

NAT Forwarding: Port Forwarding,Port Triggering,DMZ,UPnP

IPTV: IGMP Proxy,IGMP Snooping,Bridge,Tag VLAN

DHCP: Address Reservation,DHCP Client List,Server

DDNS: TP-Link,NO-IP,DynDNS

Management: Tether App,Webpage

OTHERS

Dimensions (WDH) 10.3 10.3 2.4 in

System Requirements: Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 , or other JavaScript-enabled browser,Cable or DSL Modem (if needed),Subscription with an internet service provider (for internet access)

Certifications: FCC, CE, RoHS

Environment:

Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70 (-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

Wi-Fi Transmission Power:

CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}

FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }

Wi-Fi Reception Sensitivity:

2.4GHz:
11g 6Mbps:-97dBm,11a54MBps:-79dBm
11n HT20 MCS0:-97dBm,11n HT20 MCS7:-78dBm
11n HT40 MCS0:-95dBm,11n HT40 MCS7:-75dBm
11ac VHT20 MCS0:-96dBm,11ac VHT20 MCS11:-67dBm
11ac VHT40 MCS0:-94dBm,11ac VHT40 MCS11:-64dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-62dBm

5GHz:11a 6Mbps:-97dBm,11a54MBps:-79dBm
11ac VHT20 MCS0:-97dBm,11ac VHT20 MCS11:-67dBm
11ac VHT40 MCS0:-95dBm,11ac VHT40 MCS11:-64dBm
11ac VHT80 MCS0:-92dBm,11ac VHT80 MCS11:-61dBm
11ac VHT160 MCS0:-87dBm,11ac VHT160 MCS11:-55dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-61.5dBm
11ax HE80 MCS0:-89dBm,11ax HE80 MCS11:-58.5dBm
11ax HE160 MCS0:-86dBm,11ax HE160 MCS11:-56dBm
