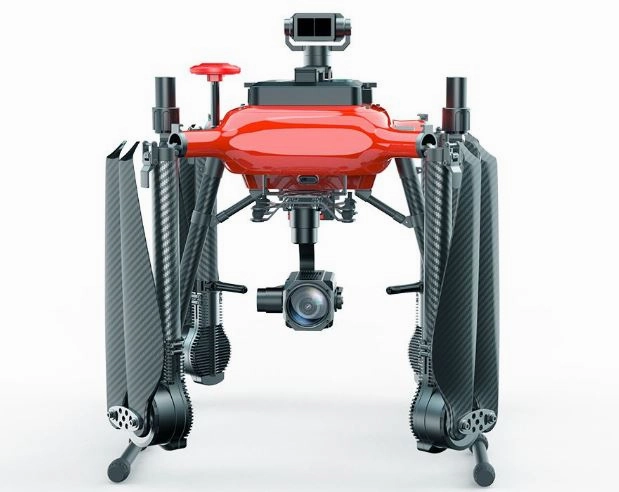

The arms adopt a four-axis vertical structure design, which is compact and firm. After folding, the whole machine i sin a barrel shape, and the operation can be started quickly, reducing the difficulty of packing and saving assembly time for the staff, and greatly reducing the diffculty of packing and saving assembly time for the staff, and greatly reducing the requirements for transportation.

Intelligent Fight Battery

The Smart Battery has a capacity of 1400mAh, which further enhances and guarantees the fluency of flight operations, and supports low voltage automatic return. The maximum continuous flight time is up to 54 minutes (no-lead state, hovering flight under no wind at sea level)

All Directional Obstacle Avoidance

R100 can sense obstacles 40 meters in front of the light, and can effectively reduce the safety risks caused by common obstacles during daily operations. Active sensing obstacles avoidance function can work around the clock. Heading follows the range of lidar operation:

Equipped with a networked RTK module, so that it can achieve a centimeter-scale positioning

Integrated new RTK module, with strong anti-magnetic interference capability and precise positioning capability, providing real-time centimeter-level positioning data.

IP54 Protection Level

The body adopts a closed waterproof design, with IP54 three-proof capability, with industrial-grade waterproof, dustproof, and corrosion-proof capabilities.

30X Zoom Camera

A 30x optical zoom camera is mounted as standard, and ultra-long-distance monitoring can observe all the details of the scene, which can effectively help formulate rescue plans. It can also be used in one machine for multiple purposes. According to different needs of customers, different equipment can be mounted, such as infrared thermal imaging cameras, low-light night vision cameras and other equipments.

• The largest stream: 64 Mbps
• Recording resolution: 4K/30 FPS
• Super wide Angle vision : Distortion is minimized

35x low light level Night vision camera

it is suitable for low-light environments at night to obtain high-resolution, low-noise images, and is widely used in military and police security collars.

Dual-Lens Camera

Integrated high-definition visible light and infrared thermal imaging modules, infrared thermal imaging cameras have the advantages of strong penetration, long detection distance, identification of hidden targets, temperature detection and day and night visibility. Based on image and temperature algorithms, it can identify targets in unfavorable climate environments.

Specifications

Aerocraft

Symmetrical motor wheelbase	1047mm
Overall dimensions	1140mm x 1140mm x 531mm (when unfolding) 514 mm x439 mm x469mm (folded)
electric machinery	KV value: 180rpm/V
Electric regulation	Continuous current: 80A (good heat dissipation condition)
Blade specification	Diameter * pitch: 24x7.9 inch
Standard takeoff weight	7.8 kg (including battery)
Maximum takeoff weight	15.8 kg (near sea level)
Maximum lifting speed	5 m/s
Maximum descent speed	3 m/s
Maximum horizontal flight speed	GPS mode: 5m/s adjustable (windless environment); Cruise mode: 3-20m/s adjustable (windless environment); Attitude mode: 25m/s (windless environment)
Maximum tilt angle	Positioning mode: 40 ; Cruise mode: 40 ; Attitude mode: 40
Maximum rotation angular velocity	100/s
Maximum tolerable wind speed	17 m/s
Maximum flight time	54.5 min (no load at sea level)
Maximum flight altitude	5000m
Recommended working ambient temperature	0 to 40
Hover accuracy	Enable RTK: vertical: 10cm; horizontal: 5cm; RTK not enabled: vertical: 0.5 m horizontal: 0.1 m

30x optical zoom camera

Lens Pixel	12 megapixel
ISO Scope	100-3200 (video)/100-1600 (photos)
Recording resolution	4K 30fps
Photographic resolution	3840x2160
focal length	6.7-134.5mm
Focus time	2 seconds
Zoom magnification	30x optical zoom
Multiplying speed	About 2.0 seconds
Horizontal perspective	59.8 - 3.0 (wide-angle - telescopic)
Close-up distance	More than 5000mm (wide angle - telescopic)
Maximum video bitstream	64Mbps
Compression standard	H.264/H.265
Support file storage format	JPG/MP4
Supported memory card types	Micro SD card, supporting up to 128G, with transmission speed of Class10 or above or reaching UHS-1 rating

PTZ

input voltage	12V
size	136*98*139mm
weight	452g
Stabilization system	3-axis (pitch, yaw, roll)
Controllable rotation range	Pitch: - 110 to 60 ; Horizontal: 150 ; Roll: 10
Maximum control speed	Pitch: 30 /s; Horizontal: 30 /s; Roll: direct angle control
Angle control accuracy	Static: 0.008 ; Dynamic: 0.02 ; Anti shake: 0.008

Omnidirectional real-time obstacle avoidance

Obstacle perception range	0.1m-40m @ 90% reflectivity (100Klux); 0.1m-13.5m @ 10% reflectivity (100Klux)
FOV	Horizontal 3
Measuring frequency	50 Hz

Downward elevation

Speed measurement range	Flight speed 18km/h (height 2m, sufficient light)
Height measurement range	12 m
Precise hover range	0.1m
Measuring frequency	100Hz

Graphic transmission

working frequency	5725MHz to 5850MHz; 2400MHz to 2483.5MHz
Maximum image transmission distance	12km
modulation mode	OFDM and MIMO
video coding	H.264
definition	1080p30 downward compatible

Remote controller WKRC-H12

model	WKRC-H12
working frequency	2400MHz to 2483MHz
Maximum communication distance	12Km (open without shelter and electromagnetic interference)
Display device	5.5 inch 1920 * 1080 1000NITS highlight display
Charging interface	TYPE-C
Battery	3.7V 10000mAh LiPo 1S
Operating ambient temperature	-10 to 40
Charging ambient temperature	5 to 40
weight	530g
size	190*152*94mm
