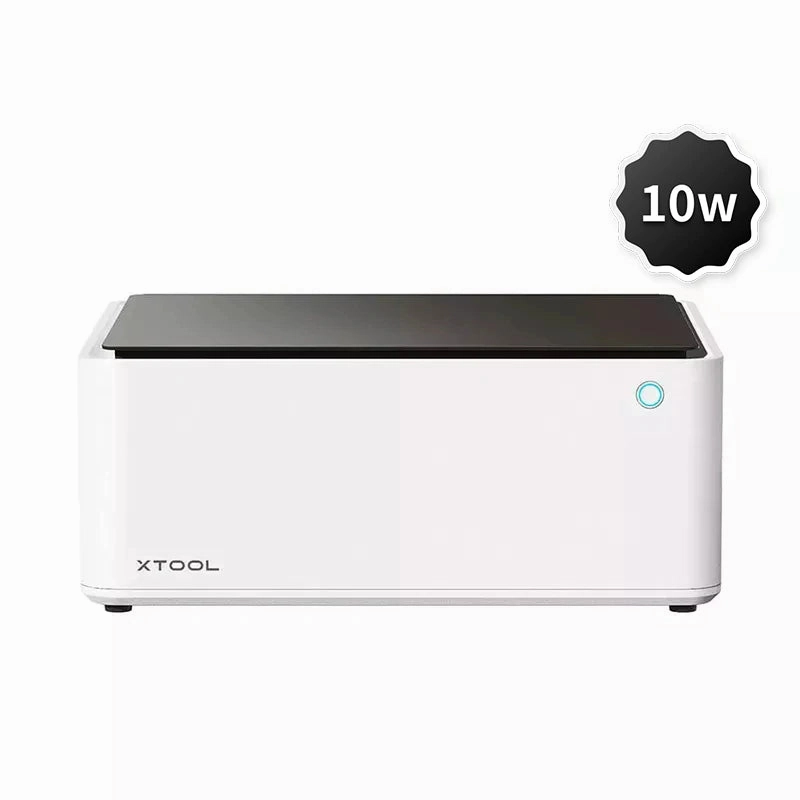

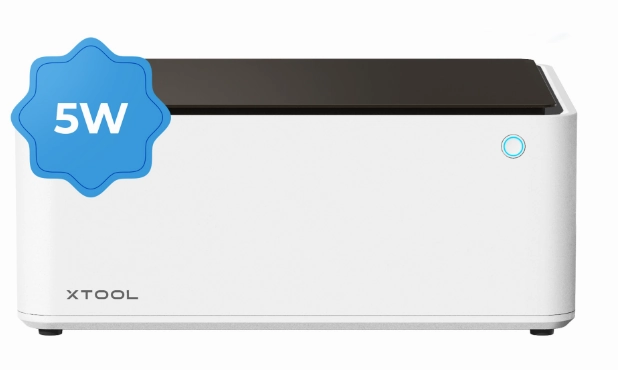

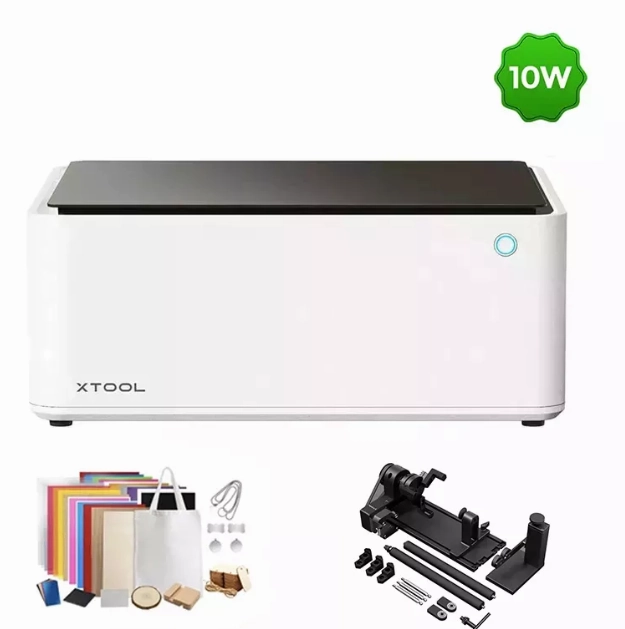

xTool M1: World's First Desktop Hybrid Laser & Blade Cutting Machine
Normally, a laser cutter can perform very well on many materials such as wood, metal and glass. However, for some soft materials such as vinyl, which can be used for DIY T-shirts, sign making, logos and more, a blade cutter is preferable to avoid the burnt edge, discoloration and toxic fumes generated by laser cutting.
What You Can Create with xTool M1
Small, Powerful and Accurate
Powerful Enough to Cut Basswood up to 8mm in One Pass
16 MP Smart Camera
Equipped with a 16MP high resolution camera inside, xTool M1 can realize visual processing and smooth operation.
Image Extraction
xTool M1 intelligently captures images, designs, and drawings from any surface and then imports them into xTools graphic design software for further creative design.
Batch Processing
The AI system automatically detects the shape of the material and processes the same shape of the material in batches at one time.
AI Auto-focus
xTool M1 initiates auto-focusing, including visual identification, material thickness settings and material recognition so you dont have to set the cutting parameters by yourself.
Comparison Between Alternatives
Model xTool M1 Glowforge (Basic & Plus) Cricut Maker Series Laser Engraving Laser Cutting Blade Cutting Camera Auto-focus Feature Offline Operation Carving Precision 0.01mm 0.0254mm / Product Weight 9.8kg 40kg 7kg Product Size (L x W x H) 557*446*230mm 965*527*210mm 538*178*151mm Working Area 385*300mm 495*279mm 310*310mm Comparison between xTool Products
xTool Laserbox
ProxTool Laserbox Rotary xTool D1 xTool M1 Main info Machine Type CO2 Laser Machine CO2 Laser Machine Diode Laser Machine Diode Laser & Blade Cutting Machine Main Features Flat engraving,
Flat cuttingFlat engraving,
Flat cutting,
Rotary engravingFlat engraving,
Flat cutting,
Rotary engravingFlat engraving,
Flat cutting,
Rotary engraving,
Blade cuttingLaser Module Output Power 40W 40W 5W&10W 5W&10W Dimensions 958*528*268mm (37.72*20.79*10.55 inch) 958*528*268mm (37.72*20.79*10.55 inch) 600*590*150mm (23.54*23.23*5.91 inch) 557*453*230mm (21.93*17.83*9.06 inch) Work Table Area 500*300mm 500*300mm 432*406mm 385*300mm Rotary Attachment Support Price Start from $3599 Start from $3999 Start from $469 Start from $799 Comparison between xTool D1 and xool M1
xTool D1 xTool M1 Features and Spec Machine Type Diode Laser Machine Diode Laser & Blade Cutting Machine Main Features Flat engraving,
Flat cutting,
Rotary engravingFlat engraving,
Flat cutting,
Rotary engraving,
Blade cuttingLaser Module Output Power 5W&10W 5W&10W Laser Spot 0.08*0.08mm 0.08mm*0.08mm Carving Precision 0.01mm 0.01mm Routing Speed 160mm/s 160mm/s Working Area 432*406mm (17*16 inch) 385*300mm (15*12 inch) Connecting Interfaces USB/Wi-Fi USB/Wi-Fi Operating Systems Windows/macOS/Android/iOS Windows/macOS/Android/iOS Control Software Laserbox Software (Basic)/Laserbox App Laserbox Software (Basic)/Laserbox App Camera AI Camera Information Image Resolution 500dpi Machine Enclosure Open the lid and stop working Size and Weight Product Weight 5kg 9.8kg Product Size(L x W x H) 600*590*150mm (24*23*6 inch) 557*453*230mm (22*18*9 inch) Supported accessories Smoke Purifier Extractor Fan Rotary Attachment
