Part No | 90NR0FH8-M002Y0 |
Sales Model Name | FX507VI-LP066W |
EAN Code | 4711387580127 |
UPC Code | 197105580121 |
WEEE | 2.478 |
BASE UNIT | VSNR0FH8-BU1001 |
|
|

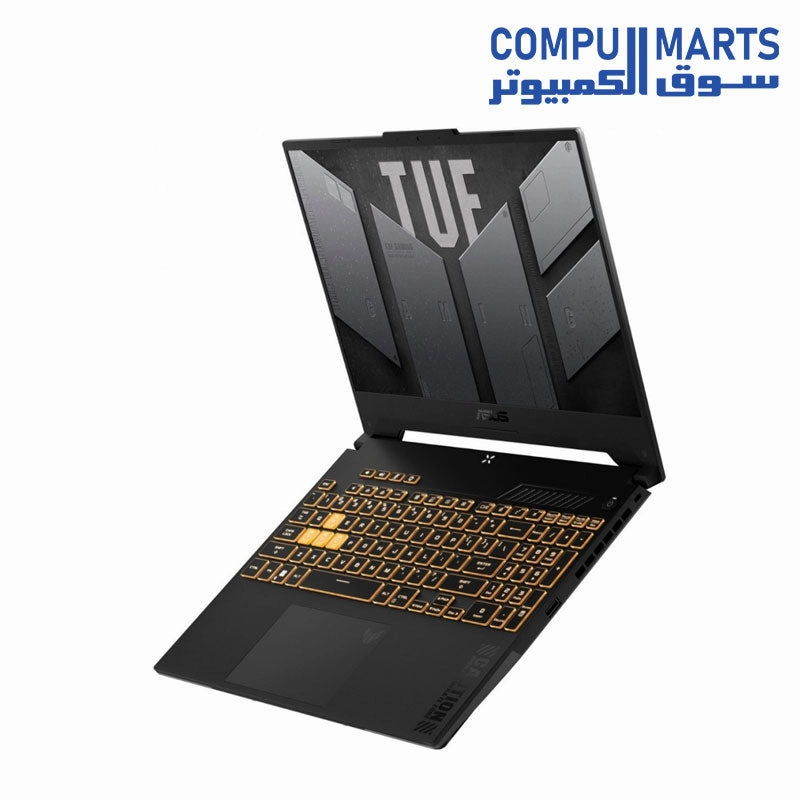

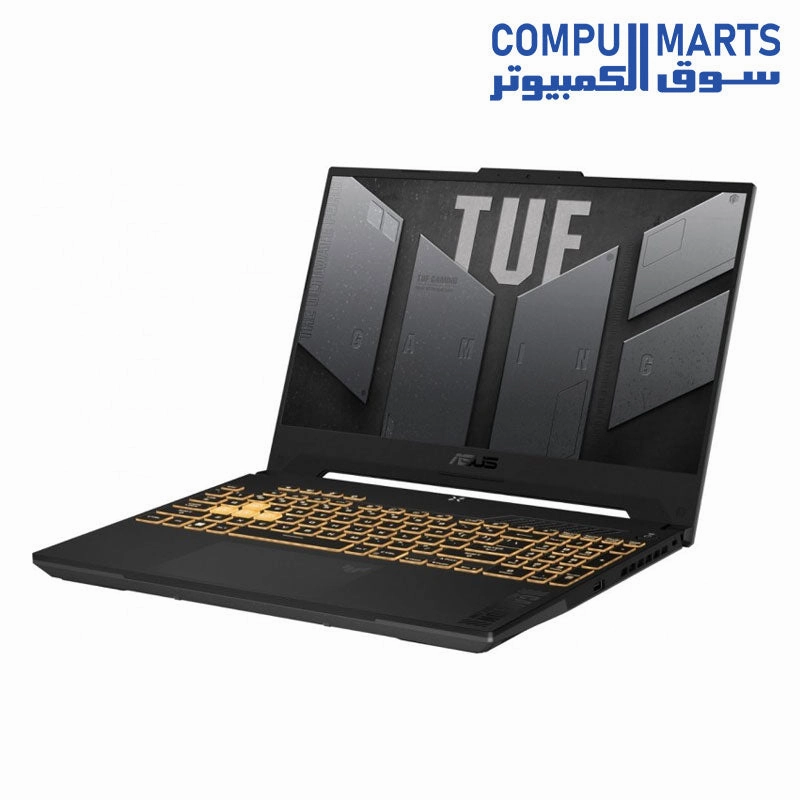

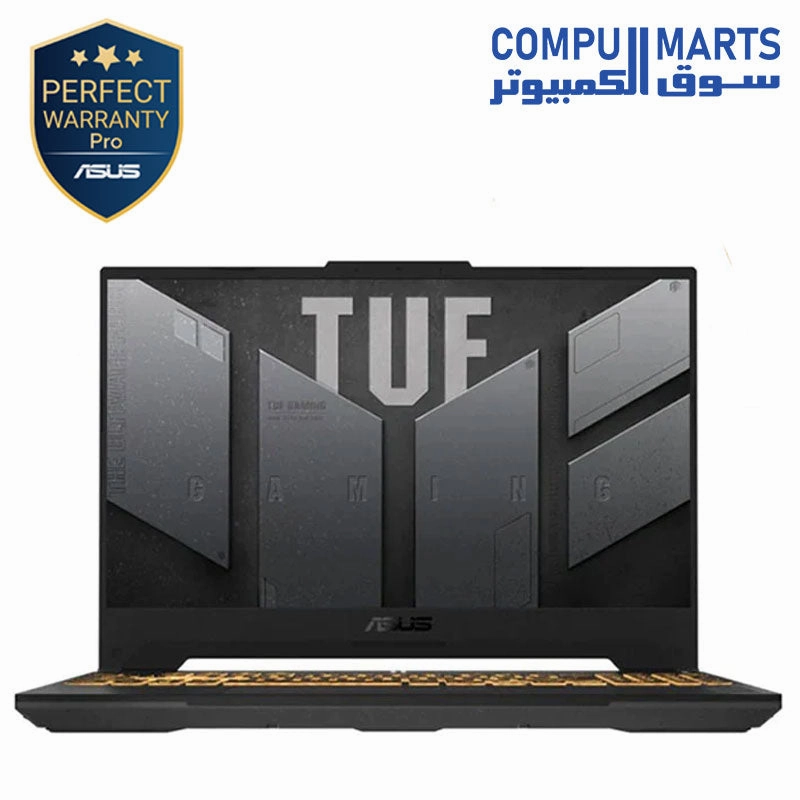

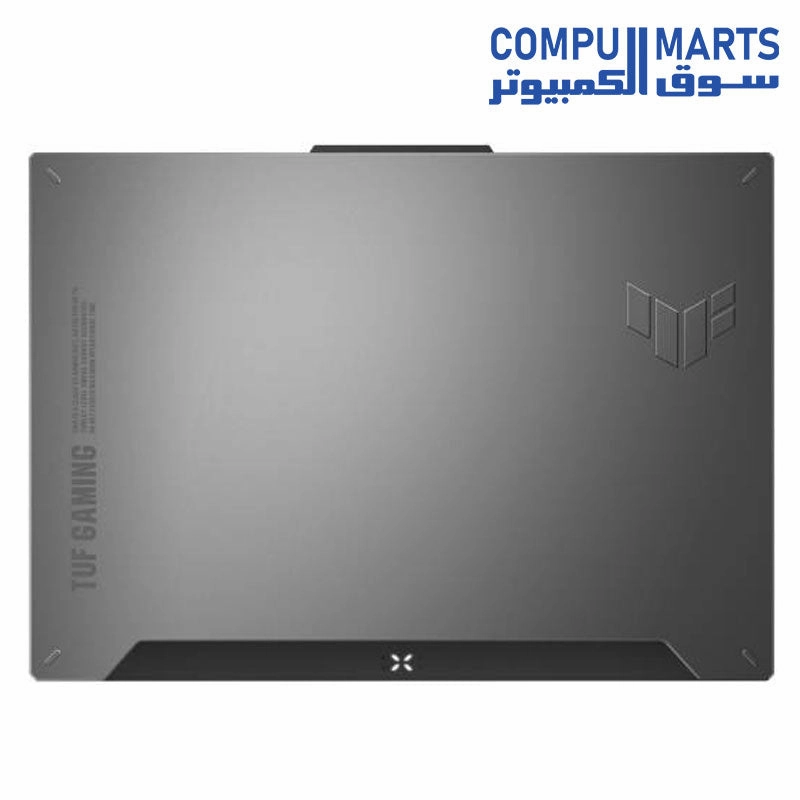

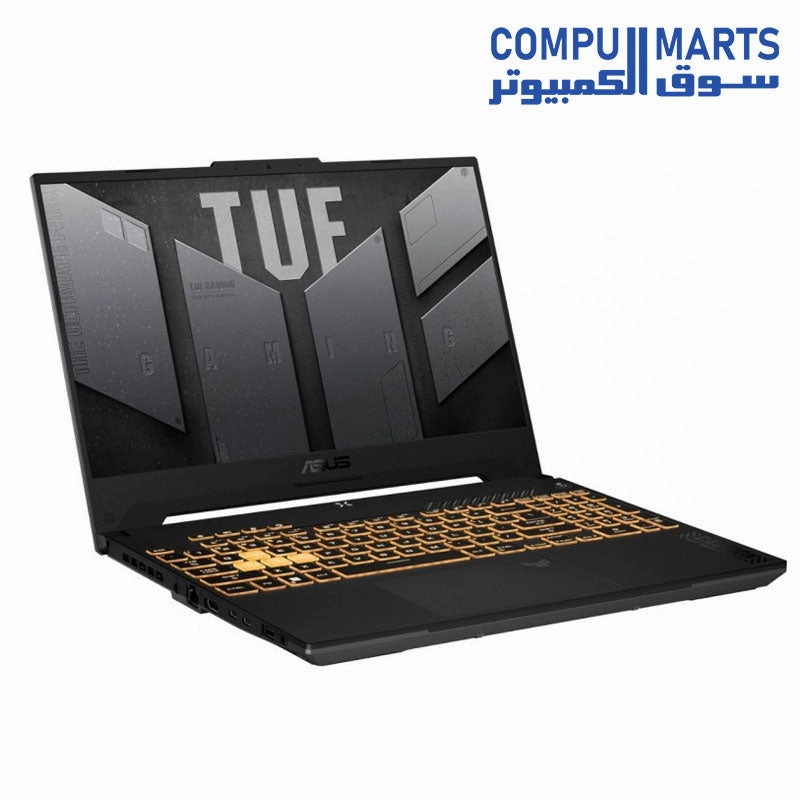

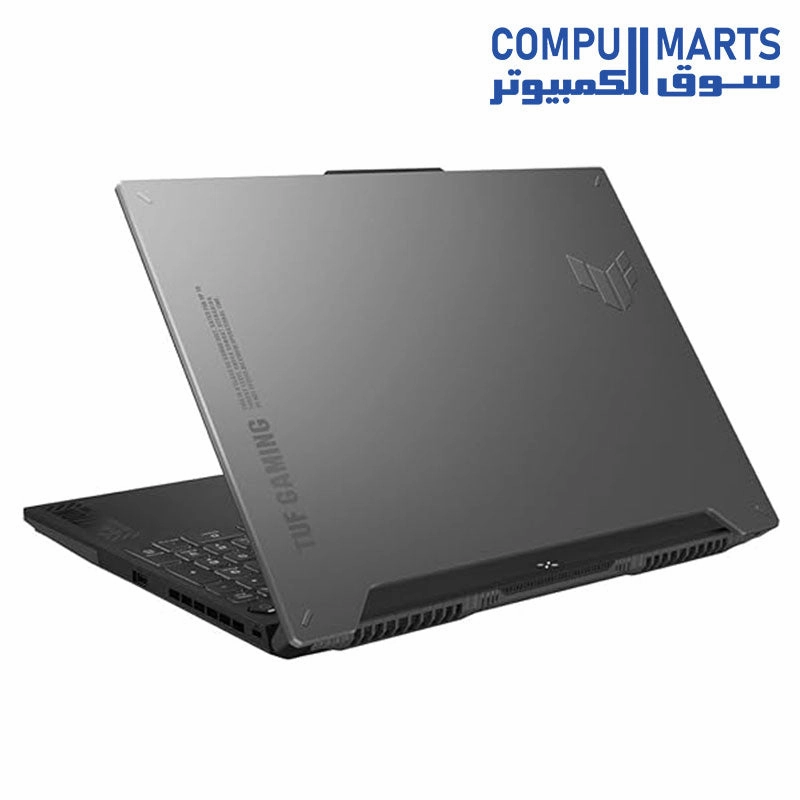

Marketing Name | ASUS TUF Gaming F15 |
Operating System | Windows 11 Home |
Office | 1-month trial for new Microsoft 365 customers. Credit card required. |
Color | Jaeger Gray |
Dimension (W x D x H) | 35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94" x 9.88" x 0.88" ~ 0.98") |
Weight | 2.20 Kg (4.85 lbs) |
Processor | 13th Gen Intel Core i7-13620H Processor 2.4 GHz (24M Cache, up to 4.9 GHz, 10 cores: 6 P-cores and 4 E-cores) |
Chipset | N/A |
Intergrated GPU | Intel Iris X Graphics |
Discrete/Optimus | MUX Switch NVIDIA Advanced Optimus |
Graphic | NVIDIA GeForce RTX 4070 Laptop GPU |
Graphic Wattage | 2225MHz* at 140W (2175MHz Boost Clock 50MHz OC, 115W 25W Dynamic Boost) |
Graphic Memory | 8GB GDDR6 |
Panel Size | 15.6-inch |
Resolution | FHD (1920 x 1080) 16:9 |
Refresh Rate | 144Hz |
Viewing Angle | 85/85/85/85 |
Panel Tech | Value IPS-level |
Brightness | 250 |
Contrast Ratio | 1000:1 |
NTSC % | 72% |
SRGB % | 100% |
Adobe % | 75.35% |
Glare | Anti-glare display |
Adaptive-Sync technology | G-Sync |
Pantone | N/A |
Support Dolby Vision HDR | N/A |
On board memory | N/A |
DIMM Memory | 8GB DDR5-4800 SO-DIMM *2 |
Total System Memory | DDR5 16GB |
Memory Slot | 2x SO-DIMM slots |
Memory Max. | 32GB |
Multi-channel memory technology | Support dual channel memory |
Storage | 1TB PCIe 4.0 NVMe M.2 SSD |
M.2 slots support either SATA or NVMe | 2 |
M.2 SSD Support List | M.2 2TB G4X4 PCIe SSDM.2 1TB G4X4 PCIe SSDM.2 512GB G4X4 PCIe SSD |
Expansion Slot (includes used) | 2x DDR5 SO-DIMM slots2x PCIe2x DDR5 SO-DIMM slots |
LAN | 10/100/1000 Mbps |
Wireless | Wi-Fi 6(802.11ax) (Dual band) 2*2 Bluetooth 5.2 Wireless Card (*Bluetooth version may change with OS version different.) |
On board Wireless | Wi-Fi 6(802.11ax) (Dual band) 2*2 Bluetooth 5.1 Wireless Card (*Bluetooth version may change with OS version different.) |
I/O Ports | 1x RJ45 LAN port1x Thunderbolt 4 support DisplayPort1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery / G-SYNC2x USB 3.2 Gen 1 Type-A |
Display output | 1x HDMI 2.1 FRL |
Camera | 720P HD camera |
Mic | Built-in array microphone |

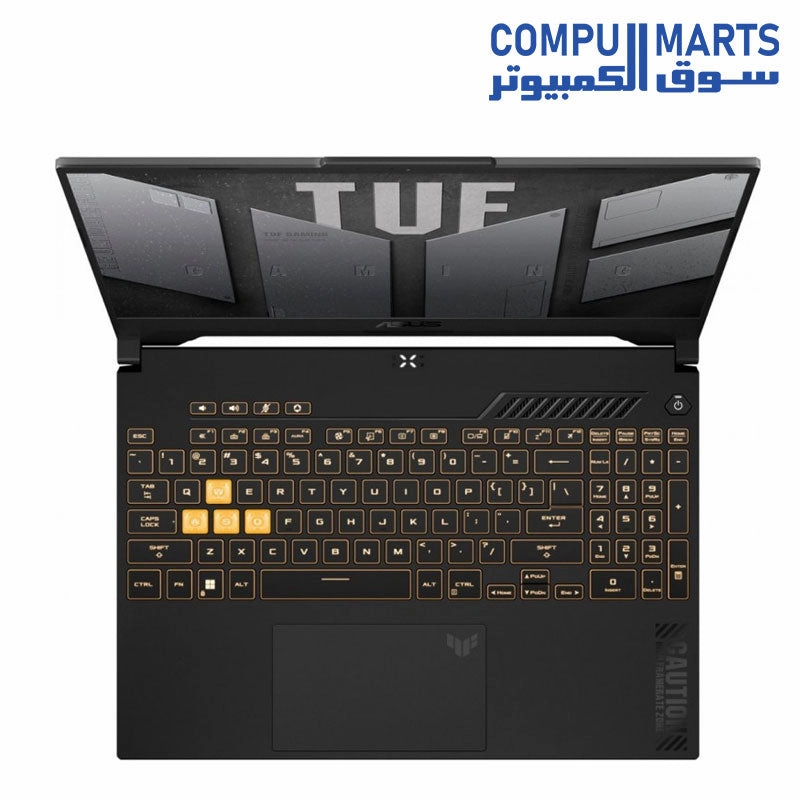

Keyboard Type | Backlit Chiclet Keyboard 1-Zone RGB |
Aura Sync | Yes |
Touchpad | TouchpadN/A |
Speakers | 2-speaker system |
Audio | 1x 3.5mm Combo Audio JackBuilt-in array microphone |
Audio Tech | AI noise-canceling technologyDolby AtmosHi-Res certification (for headphone)Support Microsoft Cortana near field/far field |
Security | BIOS Administrator Password and User Password ProtectionKensington Security SlotTrusted Platform Module (Firmware TPM) |
Antivirus | McAfee 30 days free trial |
Battery | 90WHrs, 4S1P, 4-cell Li-ion |
Fast charging | Recharge from 0-50% in 30 minutes |
Power | 6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
Xbox Game Pass | Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
Ecolabels & Compliances | ENERGY STAREPEAT Bronze |
Reparability Index (for France) | 8.3 |
