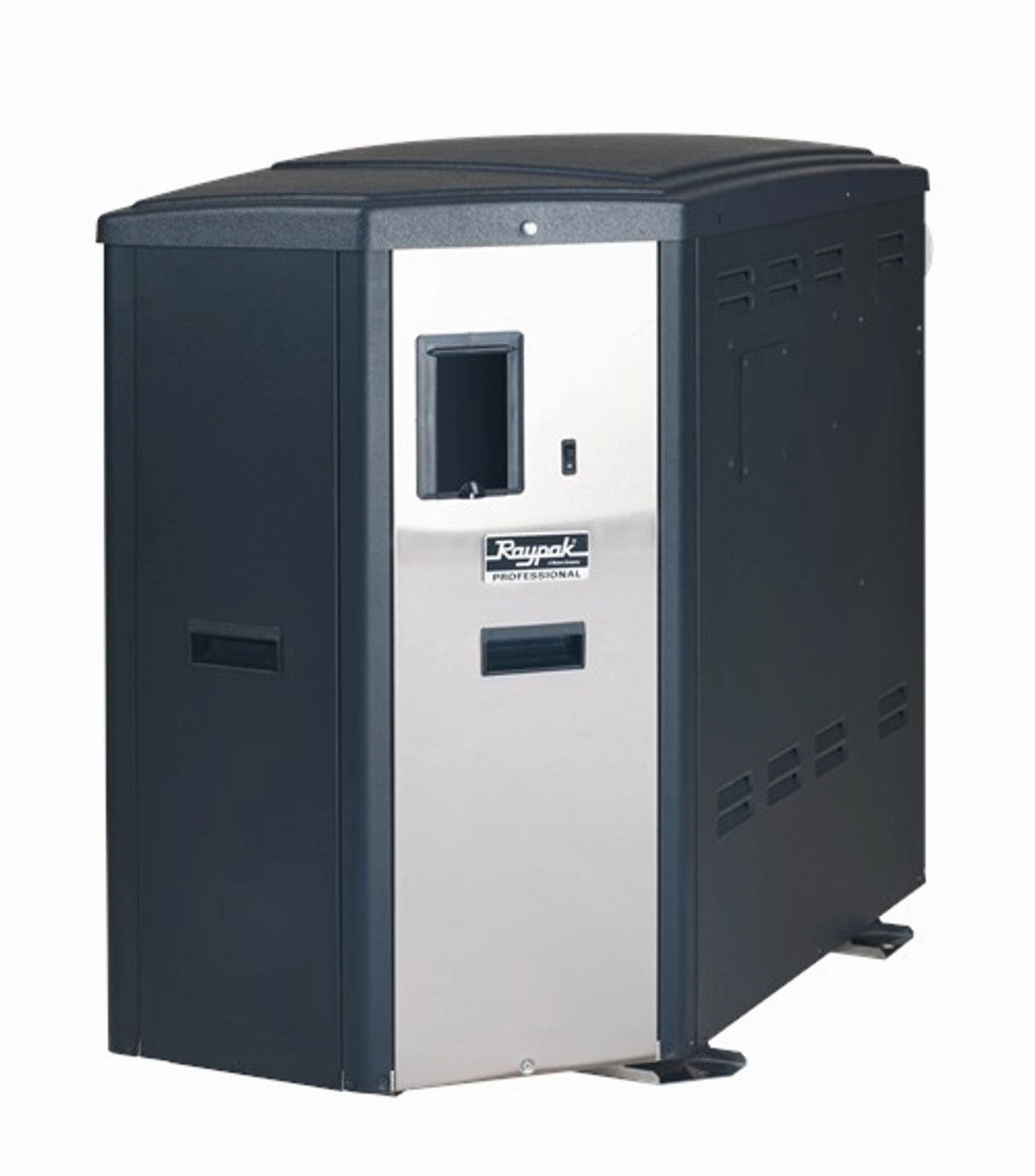

Raypak 399K BTU ASME Propane Gas Residential Pool & Spa Heater (S-R410-EP / 014281)
The Raypak X94 Professional series pool heater is a new product created especially for commercial buildings including condos, hotels, motels, schools, parks, and upscale private pools. Additionally, it is the ideal heater for harsh coastal climates where endurance is tested by salt air.
A digital controller that is so sophisticated yet simple to use, the Raypak 014281 features 94% efficiency, an ASME code stainless steel marine-grade heat exchanger, and an electronic, intermittent direct spark ignition.
- 94% Efficiency
- ASME Code Stainless Steel Marine-Grade Heat Exchanger, stamped for 80 PSIG and National Board registered.
- 75 lb. Pressure relief valve and T&P gauge
- External bypass for high flow rates (up to 125 GPM)
- Indoor/outdoor construction
- 2 PVC Slip inlet/outlet connection
- 115VAC 60Hz 1 Ph Power supply
- Electronic, Intermittent Direct Spark Ignition (DSI)
- Digital display with diagnostics and 7-day time clock
- Air-fuel ratio combustion system provides a modulating response to changing needs
- Condensate Drain port, PVC
- Natural gas or propane
- Low NOx, meets SCAQMD rule 1146.2
- Requires Cat IV Venting: PVC, CPVC, Dura-Vent Polypro, or stainless steel
SPECIFICATIONS:
Phase: 1-Phase
Department: Heaters
BTUH Input: 399000
Cabinet Depth: 35-1/2 Inch
Cabinet Height: 34-1/8 Inch
Cabinet Width: 20-3/16 Inch
Control Type: Digital Electronic
Elevation: 0 - 4500 ft
Flow Rate: 40 to 125 gpm
Flue Diameter: 4 Inch
Frequency Rating: 60 Hz
Gas Connection: 3/4 Inch NPT
Gas Type: Liquid Propane
Headers: Super-Austenitic Stainless Steel
Item: Condensing Pool Heater
Model Number: S-R410-EP
Standards Approvals: ASME Certified
Tubing Material: Super-Austenitic Stainless Steel
Voltage Rating: 120/24 V
Water Connection: 2 Inch NPT
Weight: 300 lbs.
Limited Warranty: 3 Year Parts and Labor
WHATS IN THE BOX:
1 xRaypak Residential Pool & Spa Gas Heater -S-R410-EP ASME-014280- 399,000 BTUH
